Overview

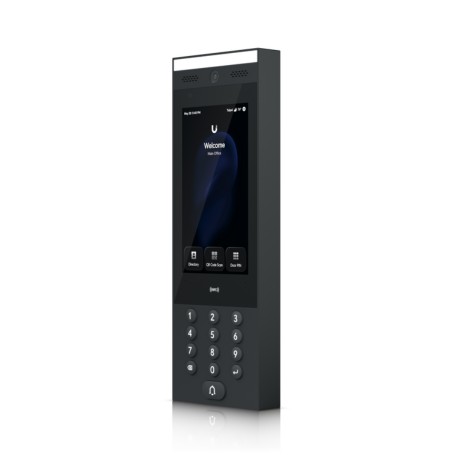

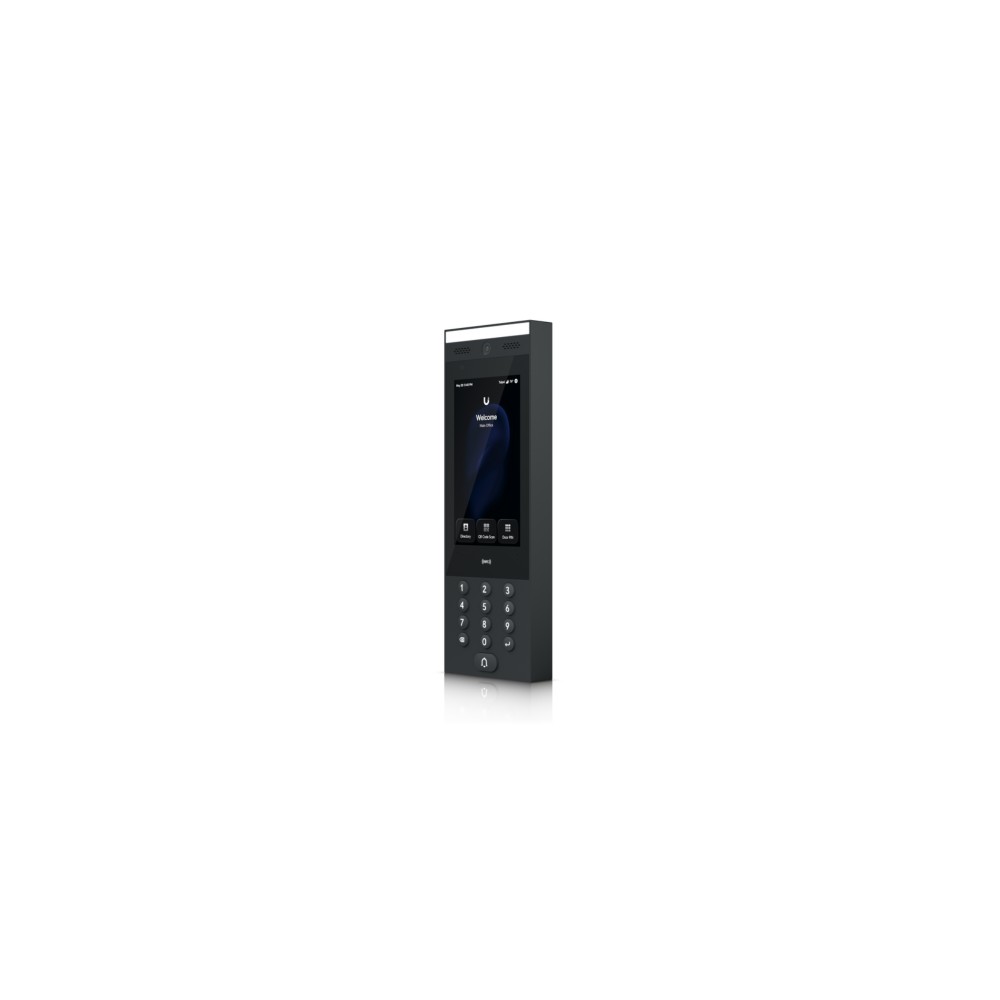

The Ubiquiti UA-G3-Intercom is a UniFi Access G3 Intercom designed for managing residential and commercial building entry requests. It combines a touchscreen directory and intercom interface with camera-based visitor communication and multiple access methods, including NFC credentials, PIN entry, mobile access, face unlock and QR code unlocking.
Intercom and Access Functions
The G3 Intercom provides two-way intercom and doorbell access through its integrated microphone and speaker. Its 7-inch capacitive multi-touch display provides a portrait-oriented interface for directory and access functions. Supported access methods include NFC card and keyfob access, PIN access, Apple and Google Wallet, mobile unlock, face unlock and QR code unlock.
Camera and Display
The integrated camera provides a 2MP video output at up to 30 frames per second with a 1200 x 1600 resolution in a 3:4 format. The camera optics are specified at 8MP with a horizontal field of view of 79.4°, vertical field of view of 97.5°, and diagonal field of view of 118.2°.
The 177 mm (7-inch) diagonal display uses capacitive multi-touch technology and has a 1024 x 600 pixel resolution. Its specified maximum luminance is 1000 nits typical, and the screen uses a portrait orientation.
Connectivity and Power
The UA-G3-Intercom provides one Gigabit Ethernet RJ45 port and uses PoE for network connectivity and power. The specified supported voltage is 48V DC, with maximum power consumption of 13W.
For PoE cabling, Ubiquiti specifies Cat 5e as the minimum recommended performance category. The manufacturer also specifies minimum conductor gauges of 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable.
Outdoor Installation
The intercom is designed for indoor and outdoor use and has an IP65 weather-resistance rating. The device has a specified operating temperature range of -30°C to 60°C (-22°F to 140°F), while the display is specified for -25°C to 60°C (-13°F to 140°F). Operating humidity is specified at 5% to 90% non-condensing.
Key Features
- 7-inch 1024 x 600 capacitive multi-touch display
- Integrated 2MP camera with up to 30 FPS video
- Multiple access methods including NFC, PIN, mobile, face and QR code unlocking
- Gigabit Ethernet with PoE power
- IP65-rated indoor/outdoor construction with two-way intercom functionality
Applications
The UA-G3-Intercom is intended for entry points such as residential buildings, commercial properties and multi-tenant facilities where visitors need to contact residents or authorized users and access credentials need to be managed through UniFi Access. Ubiquiti specifically identifies the G3 Intercom for multi-tenant residential and commercial entry points such as gates and main entrances.
Mounting
The standard mounting configuration supports wall mounting and includes an adapter for a gooseneck pedestal. Ubiquiti also lists surface-angle, flush-mount and sunshield accessories as optional mounting configurations for the intercom.
DC Supplies Product Note
The UA-G3-Intercom is a complete access intercom terminal rather than a standalone conventional doorbell. Deployment requires an appropriate PoE/network connection, and the access-control environment is managed through UniFi Access. For outdoor installations, the mounting location should also accommodate the specified environmental operating range and provide suitable network cabling.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UA-G3-Intercom |
| Product Type | G3 Intercom / Access Intercom Terminal |
| Application | Indoor and Outdoor |
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1 in) |
| Device Weight | 965 g (2.1 lb) |
| Bracket Weight | 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Weatherproofing | IP65 |
| Networking Interface | 1 x GbE RJ45 |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE |
| Supported Voltage | 48V DC |
| Maximum Power Consumption | 13W |
| Camera Video Resolution | 2MP, 1200 x 1600 (3:4) |
| Maximum Frame Rate | 30 FPS |
| Camera Optics Resolution | 8MP, 2448 x 3264 |
| Camera Field of View | H: 79.4°, V: 97.5°, D: 118.2° |
| Display Size | 177 mm (7 in) diagonal |
| Display Technology | Capacitive multi-touch |
| Display Resolution | 1024 x 600 pixels |
| Display Luminance | 1000 nits maximum, typical |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | Less than 30 mm (1.18 in) |
| Operating Temperature | Device: -30°C to 60°C (-22°F to 140°F); Display: -25°C to 60°C (-13°F to 140°F) |
| Operating Humidity | 5% to 90% non-condensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive Attack: Level I; Line Security: Level I; Endurance: Level I; Standby Power: Level I |
| CAN/ULC-60839-11-1 | Grade I |
FAQs
What is the UA-G3-Intercom used for?
The UA-G3-Intercom is a UniFi Access intercom terminal for managing entry requests at residential and commercial entrances, including multi-tenant buildings, gates and main entrances.
Which access methods does the G3 Intercom support?
Supported methods include NFC cards and keyfobs, PIN access, Apple and Google Wallet, mobile unlock, face unlock and QR code unlock.
Does the G3 Intercom include a camera?
Yes. The device has an integrated camera supporting 2MP video at up to 30 FPS, with 8MP optics and a specified 118.2° diagonal field of view.
Does the G3 Intercom use PoE?
Yes. The UA-G3-Intercom uses PoE and provides one Gigabit Ethernet RJ45 networking interface. Ubiquiti specifies 48V DC as the supported voltage range.
Can the G3 Intercom be installed outdoors?
Yes. The device is specified for indoor and outdoor use and has IP65 weatherproofing. The specified device operating temperature range is -30°C to 60°C.
What display does the G3 Intercom use?
It has a 7-inch capacitive multi-touch display with a 1024 x 600 pixel resolution, portrait orientation and up to 1000 nits typical maximum luminance.
