Overview

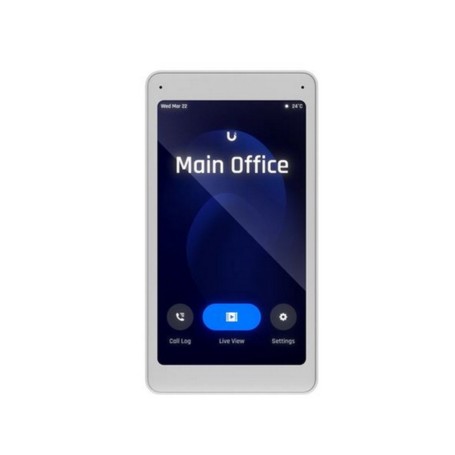

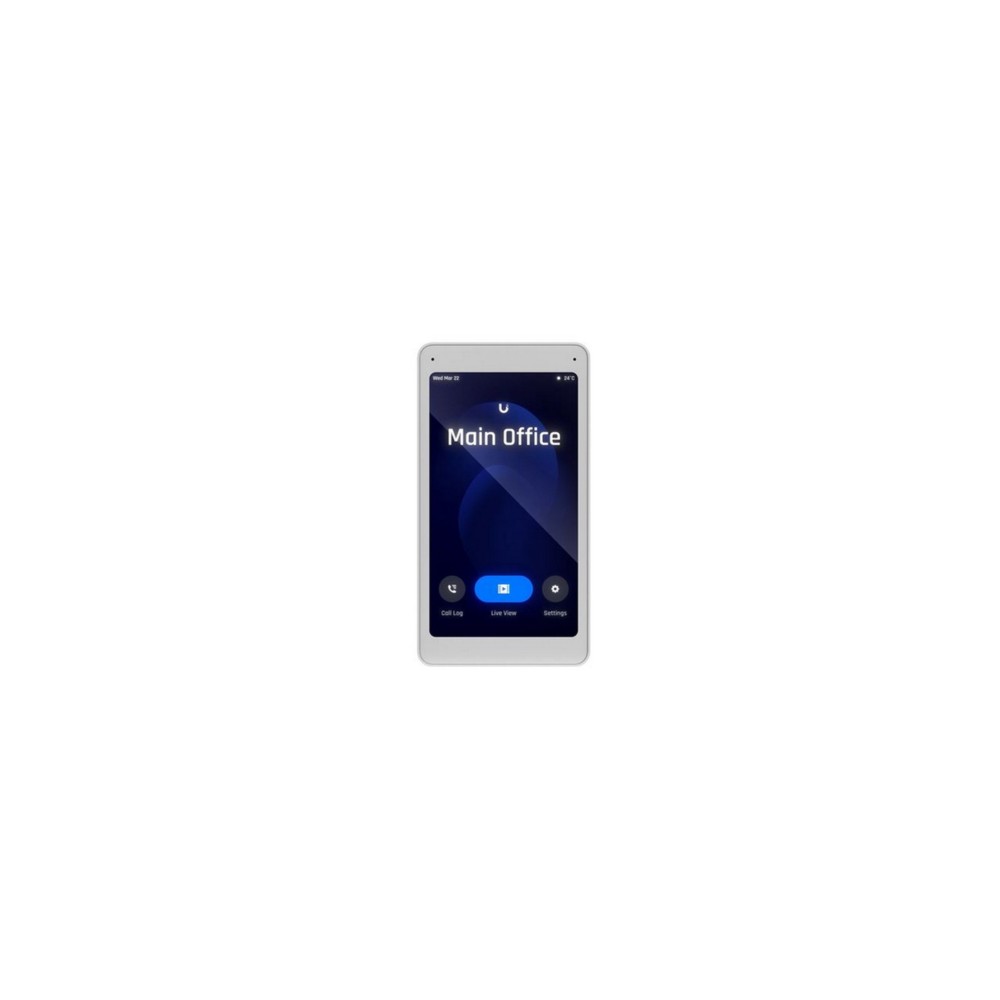

The Ubiquiti UA-Intercom-Viewer is a UniFi Access display designed for visitor screening and remote access control. It provides a 5-inch portrait touchscreen for viewing live video, communicating with visitors, and remotely unlocking connected access points.
Visitor Screening and Access Control
The Intercom Viewer works with compatible UniFi Access Intercoms and Reader Pro devices. A visitor can initiate a call from a compatible reader, allowing the user at the Intercom Viewer to see the visitor, communicate through two-way audio, and remotely unlock the door.
Display and Audio
The 5-inch touchscreen has a 1280 × 720 pixel resolution, 300-nit typical luminance, and portrait orientation. Built-in microphones and a speaker support two-way communication through the UniFi Access application.
Network and Power
The UA-Intercom-Viewer uses a 10/100 Mbps RJ45 Ethernet connection and is powered through PoE. It supports a 44–57V DC input range and has a maximum power consumption of 5W. Cat 5e cabling is the minimum recommended network cable category.
Installation
The viewer is designed for indoor installation in a vertical portrait orientation. An aluminum-alloy wall mount is included, while gang box mounting is supported with an optional mount. The enclosure combines glass and polycarbonate materials.
Key Features
- 5-inch 1280 × 720 portrait touchscreen
- Live visitor video and two-way audio communication
- Remote door unlocking through UniFi Access
- 10/100 Mbps Ethernet with PoE power
- Indoor wall mounting with included aluminum-alloy mount
Applications
The UA-Intercom-Viewer is suited to residential and commercial access-control installations where occupants, reception staff, or security personnel need an indoor interface for responding to visitors and managing entry requests.
DC Supplies Product Note
The UA-Intercom-Viewer is a PoE-powered Access device rather than a standalone AC-powered display. The network connection provides both Ethernet connectivity and device power, so the installation requires a suitable PoE power source and compatible UniFi Access environment.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UA-INTERCOM-VIEWER |
|---|
| Product Type | UniFi Access Intercom Viewer |
|---|
| Management Application | UniFi Access |
|---|
| Display Size | 127 mm (5 inches) diagonal |
|---|
| Display Resolution | 1280 × 720 pixels |
|---|
| Display Orientation | Portrait |
|---|
| Display Luminance | 300 nits typical |
|---|
| Audio | Built-in microphone and speaker |
|---|
| Networking Interface | 1 × 10/100 Mbps RJ45 |
|---|
| Connectivity | Ethernet |
|---|
| Power Method | PoE |
|---|
| Supported Voltage Range | 44–57V DC |
|---|
| Maximum Power Consumption | 5W |
|---|
| Enclosure Material | Glass, polycarbonate |
|---|
| Mount Material | Aluminum alloy |
|---|
| Mounting | Wall mount included; gang box mount optional |
|---|
| Operating Environment | Indoor only |
|---|
| Dimensions | 135 × 72 × 31.8 mm |
|---|
| Weight | 168 g |
|---|
| Operating Temperature | 0 to 40°C |
|---|
| Operating Humidity | 5–95% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| CAN/ULC-60839-11-1 Grade | Grade I |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the Ubiquiti UA-Intercom-Viewer used for?
It provides an indoor touchscreen interface for visitor screening, two-way communication, and remote access control within UniFi Access installations.
Does the UA-Intercom-Viewer support live video?
Yes. The viewer can display live video from compatible UniFi Access readers and intercom devices.
Can the Intercom Viewer remotely unlock a door?
Yes. When configured as part of a compatible UniFi Access system, the viewer can be used to remotely unlock the associated entry point.
How is the UA-Intercom-Viewer powered?
The viewer is powered through PoE over its RJ45 Ethernet connection and supports 44–57V DC.
Is the UA-Intercom-Viewer suitable for outdoor installation?
No. Ubiquiti specifies the Intercom Viewer for indoor use only.
