Detailed Specifications

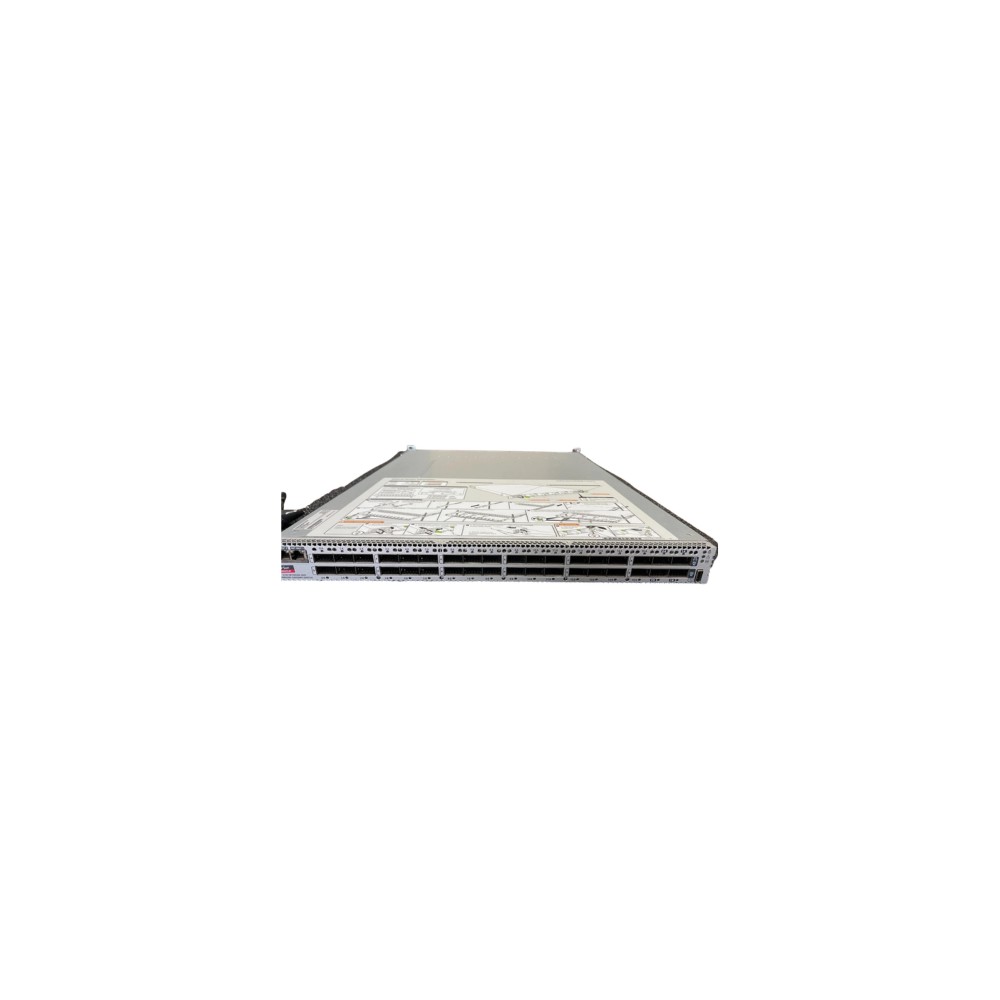

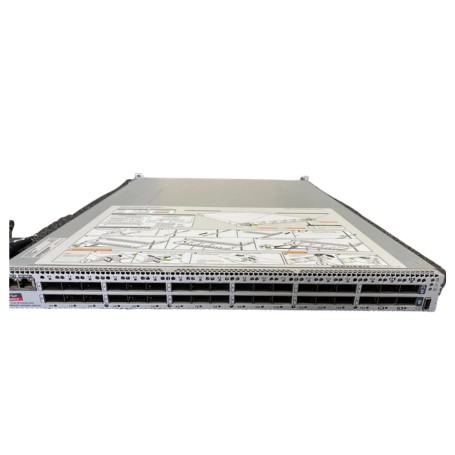

Oracle 7305543 36 port QDR Infinband Gateway switch
Overview :
The Oracle 7305543 is a high-performance, managed InfiniBand switch designed for data center environments requiring ultra-low latency and high-bandwidth interconnects. It facilitates the aggregation of server and storage clusters, enabling efficient communication across converged I/O infrastructures.
Built for high-density environments, this 1U rack-mountable appliance supports QDR (Quad Data Rate) speeds. It is engineered to integrate seamlessly into Oracle's Sun server and storage ecosystem, providing the fabric switching capabilities necessary for demanding application clusters and scale-out architectures.
The unit supports advanced features like "hitless" failover and logical network isolation, ensuring high availability and secure partitioning within virtualized clusters. It is optimized for back-to-front airflow, making it suitable for standard networking and server rack deployments.
Key Features :
36-port QDR InfiniBand fabric switching for ultra-low latency.
1U rack-mountable form factor for high-density deployments.
Redundant, hot-swappable power supplies for high availability.
Integrated management via Sun ILOM and SNMP/SSH/IPMI protocols.
Supports logical partitioning for secure virtual cluster isolation.
Specifications :
| Feature | Specification |
| Brand | Oracle |
| Part Number | 7305543 |
| Product Type | QDR InfiniBand Gateway Switch |
| Port Count | 36 ports |
| Interface Type | QSFP+ |
| Data Rate | QDR (40 Gbps per port) |
| Form Factor | 1U Rack-mount |
| Management Ports | 2x 1000Base-T RJ-45, 1x Serial RJ-45 |
| Protocol Support | SNMP v1/v2c/v3, SSH, HTTP/HTTPS, IPMI 1.5/2.0 |
| Airflow | Rear to Front |
| Power Supplies | Dual Hot-swappable (1+1 Redundant) |
| Compatibility | Sun Blade and Rackmount Servers / Storage |
| Operating Temp | 10°C to 35°C (50°F to 95°F) |
| Operating Humidity | 5% to 85% (Non-condensing) |
