Detailed Specifications

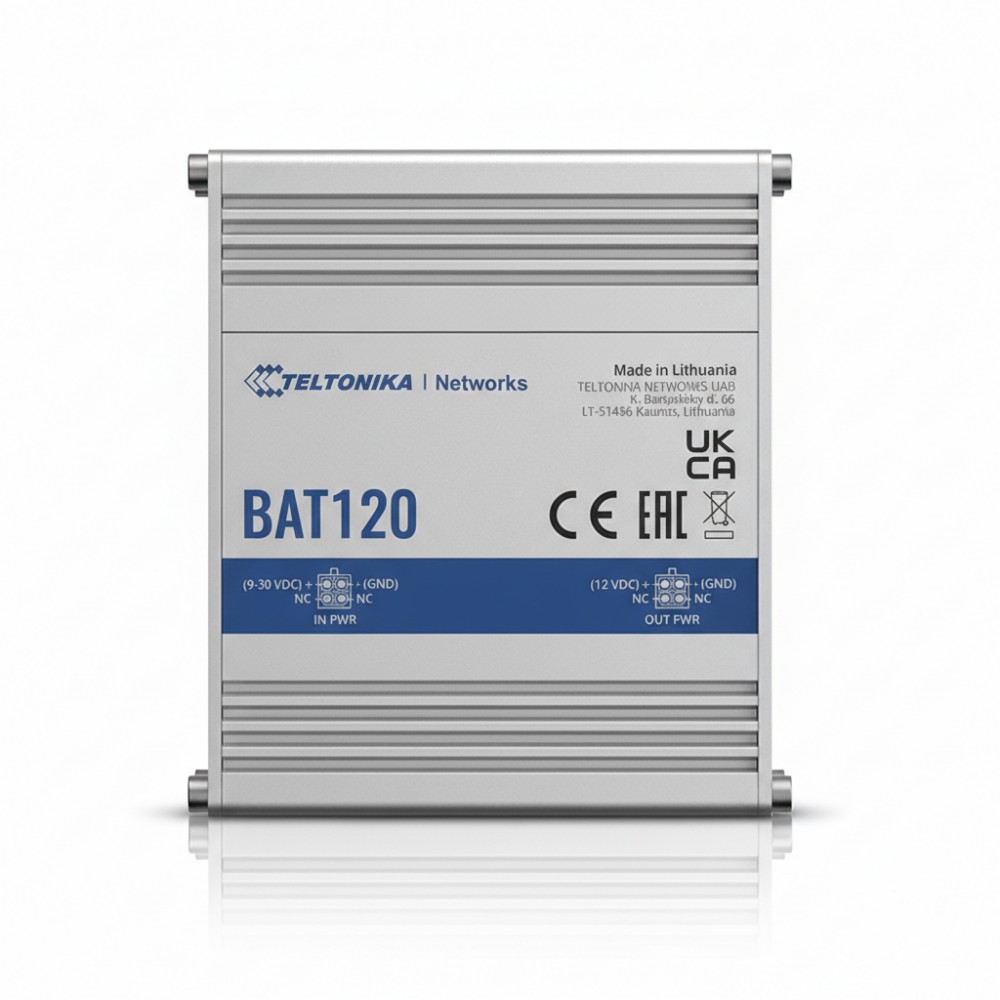

Teltonika BAT120000000 Industrial UPS Battery Backup
Overview :
The Teltonika BAT120000000 is an industrial uninterruptible power supply (UPS) module providing backup 12 V DC power for compatible routers, gateways, and industrial network devices. It accepts a wide input DC range and switches seamlessly to internal battery power during mains interruptions to maintain network uptime. The unit includes protection features against reverse polarity, overvoltage, and output overcurrent to protect connected equipment. Its rugged aluminum housing and multiple mounting options support deployment in control cabinets, DIN-rail installations, or remote sites where short-term power continuity is critical.
Key Features :
UPS with 12 V battery backup for network devices
Wide DC input range 9-30 V with passthrough mode
Integrated protections: reverse polarity, overvoltage, overcurrent
4-pin industrial DC power connectors
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Teltonika |
| Part Number | BAT120000000 |
| Product Type | Industrial UPS Battery Module |
| Input Voltage Range | 9-30 V DC |
| Output Voltage (Passthrough) | 9-30 V DC |
| Output Voltage (Battery Mode) | 12 V DC |
| Max Output Power (Battery) | 22 W |
| Max Output Current (Battery) | 1.8 A |
| Battery Capacity | 2600 mAh (17 Wh) |
| Battery Cells | 2 × 18650 Li-ion |
| Power Protection | Reverse polarity, overvoltage, 3 A overcurrent |
| Connectors | 1 × 4-pin DC IN, 1 × 4-pin DC OUT |
| LED Indicators | IN PWR, OUT PWR, 4 × status LEDs |
| Alarm Output | Active HIGH, max 12 V / 2.5 mA |
| Housing | Aluminum |
| Dimensions (W×H×D) | 100 × 30 × 85 mm |
| Weight | ~315 g |
| Operating Temp. | 0 °C to 45 °C |
| Mounting Options | DIN-rail, wall, flat surface |
