Teltonika TRB247010000 Industrial LTE Cat 1 bis IoT Gateway View larger

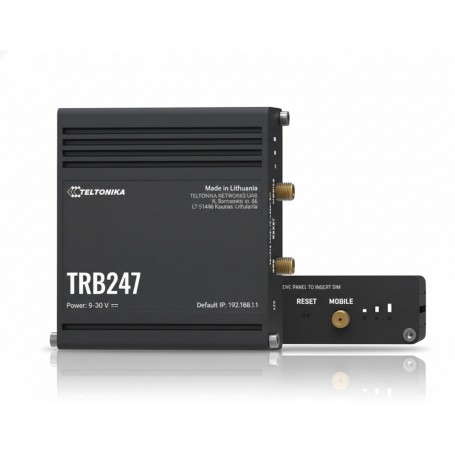

Teltonika TRB247010000 Industrial LTE Cat 1 bis IoT Gateway

TRB247010000

New

Industrial LTE Cat 1 bis IoT gateway
×




Detailed Specifications

Teltonika TRB247010000 Industrial LTE Cat 1 bis IoT Gateway

Overview :

The Teltonika TRB247010000 is an industrial cellular IoT gateway with LTE Cat 1 bis modem and dual SIM support for reliable network connectivity in remote and edge deployments. It provides a Fast Ethernet LAN interface, serial ports (RS‑232 and RS‑485) for industrial telemetry, and integrated GNSS positioning for site tracking and timing. The device operates on RutOS, supporting IP routing, network services, and security protocols suitable for automation and IoT data transport. It is designed for deployment in industrial control systems, telemetry, remote monitoring, and machine‑to‑machine (M2M) applications requiring rugged connectivity.

Key Features :

  • LTE Cat 1 bis cellular connectivity with dual SIM failover

  • Single Fast Ethernet LAN with protocol support

  • Integrated GNSS (GPS/GLONASS/BeiDou/Galileo)

  • Serial interfaces: RS‑232 and RS‑485 for automation

Technical Specifications :

SpecificationDetail
Brand Teltonika
Part Number TRB247010000
Product Type Industrial LTE Cat 1 bis IoT Gateway
Cellular Standard LTE Cat 1 bis (4G)
Network Fallback 3G/2G (where supported by modem hardware)
SIM Slots 2 × Mini SIM with automatic failover
Ethernet Ports 1 × RJ45 10/100 Mbps Fast Ethernet
Serial Ports 1 × RS‑232, 1 × RS‑485
GNSS Integrated GPS, GLONASS, BeiDou, Galileo
Antenna Connectors Multiple SMA connectors (cellular, GNSS)
Security Firewall, DMZ, NAT, Port forwarding, IPSec
Protocols Supported IPv4/IPv6, TCP/UDP, DHCP, DNS, MQTT, SNMP
Operating System RutOS
Power Input DC power supply (industrial range)
Operating Temp. –40 °C to 75 °C
Humidity 10–90 % non‑condensing
Housing Aluminum, DIN‑rail/wall mount
Dimensions ~83 × 25 × 82.6 mm
Weight ~181 g
