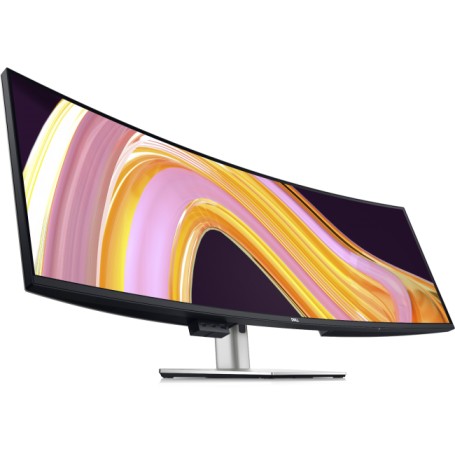

The Dell UltraSharp 49 Curved USB-C Hub Monitor U4924DW is a 49-inch professional ultrawide display designed for large desktop workspaces, multi-application workflows, and multi-computer environments. It combines a 5120 x 1440 DQHD resolution, 32:9 aspect ratio, 3800R curvature, IPS Black technology, USB-C connectivity, an integrated KVM switch, and 2.5GbE networking.
Display
The U4924DW provides a 5120 x 1440 native resolution at 60 Hz across its 49-inch curved panel. The IPS Black display uses an anti-glare surface with 3H hardness, 350 cd/m² typical brightness, and a 2000:1 typical contrast ratio. Dell specifies 100% sRGB, 100% Rec.709, 98% DCI-P3, and 98% Display P3 color coverage, with Delta E less than 2 calibration accuracy.
USB-C Hub and Power Delivery
The monitor includes USB-C connectivity with DisplayPort 1.4 Alt Mode and Power Delivery of up to 90W for compatible host systems. Its integrated USB hub provides additional USB 3.2 Gen 2 connections for peripherals, while two USB-C downstream ports can provide up to 15W of power.
Multi-Computer and Network Connectivity
The integrated KVM switch allows compatible computers to share connected USB peripherals through the monitor. Connectivity includes two HDMI ports, DisplayPort 1.4, USB-C, USB 3.2 Gen 2 downstream ports, and an RJ45 2.5GbE Ethernet port.
Ergonomics and Mounting
The included stand provides height, swivel, and tilt adjustment. The display supports VESA mounting using either a 100 x 100 mm or 200 x 100 mm interface. Height adjustment provides up to 120 mm of vertical movement.
Key Features
- 49-inch curved IPS Black display with 5120 x 1440 DQHD resolution at 60 Hz.
- USB-C connectivity with up to 90W Power Delivery for compatible host systems.
- Integrated KVM switch for sharing peripherals between compatible computers.
- Built-in 2.5GbE RJ45 Ethernet connectivity.
- 98% DCI-P3 and Display P3 coverage with Delta E less than 2 calibration accuracy.
Applications
The U4924DW is suited to professional workstations, engineering and design environments, software development, data analysis, financial and monitoring workflows, and other deployments requiring a wide 32:9 desktop workspace.
DC Supplies Product Note
The 5120 x 1440 resolution provides a wide single-screen workspace without requiring two separate monitors. For workstation deployment, verify that the host system supports the required display output and USB-C Power Delivery capabilities before relying on the monitor's 90W charging function.
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number / MPN | U4924DW |
| Product Type | Curved USB-C Hub Monitor |
| Series | UltraSharp |
| Display Size | 49 inches |
| Panel Type | IPS Black Technology |
| Aspect Ratio | 32:9 |
| Curvature | 3800R |
| Maximum Resolution | 5120 x 1440 at 60 Hz |
| Brightness | 350 cd/m² typical |
| Contrast Ratio | 2000:1 typical |
| Pixel Density | 109 PPI |
| Color Support | 1.07 billion colors |
| Color Gamut | 100% sRGB, 100% Rec.709, 98% DCI-P3, 98% Display P3 |
| Response Time | 5 ms GTG Fast; 8 ms GTG Normal |
| Viewing Angle | 178° horizontal / 178° vertical |
| DisplayPort | 1 x DisplayPort 1.4 |
| HDMI | 2 x HDMI |
| USB-C | DisplayPort 1.4 Alt Mode with Power Delivery up to 90W |
| USB Hub | USB 3.2 Gen 2 |
| USB-C Downstream | 2 x USB-C 3.2 Gen 2, up to 15W |
| Ethernet | RJ45 2.5GbE |
| KVM | Integrated KVM Switch |
| Speakers | 2 x 9W |
| VESA Mounting | 100 x 100 mm and 200 x 100 mm |
| Input Voltage | 100V AC to 240V AC |
| Typical Power Consumption | 45W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80%, non-condensing |
| Warranty | 3-Year Limited Warranty |
Frequently Asked Questions
What resolution does the Dell U4924DW support?
The U4924DW supports a maximum preset resolution of 5120 x 1440 at 60 Hz.
Does the U4924DW support USB-C Power Delivery?
Yes. The USB-C connection supports Power Delivery of up to 90W for a compatible host system.
Does the U4924DW have a built-in KVM switch?
Yes. The monitor includes an integrated KVM switch for compatible multi-computer workstation configurations.
Does the U4924DW include Ethernet?
Yes. It includes an RJ45 2.5GbE Ethernet port for compatible network connectivity.
Can the U4924DW be VESA mounted?
Yes. The monitor supports 100 x 100 mm and 200 x 100 mm VESA mounting interfaces.
What is the curvature of the U4924DW?
The display has a 3800R curved screen.
