Overview

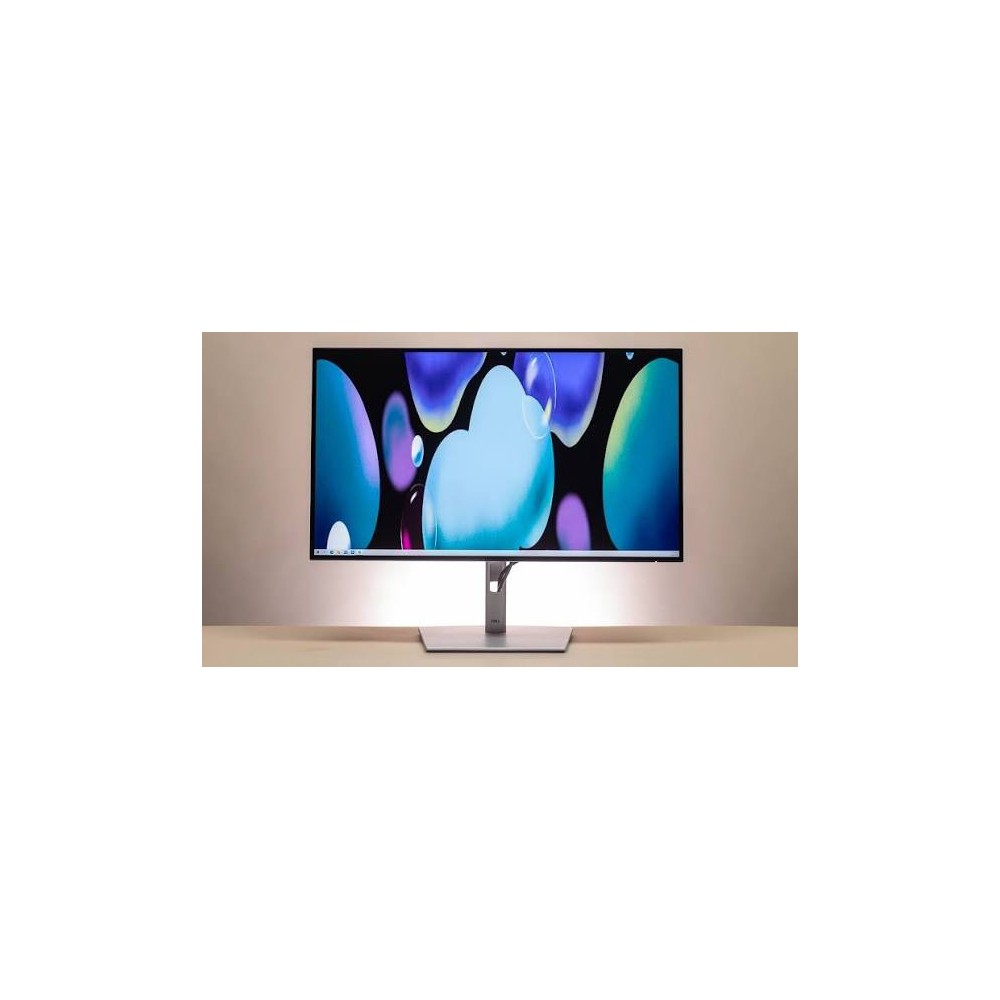

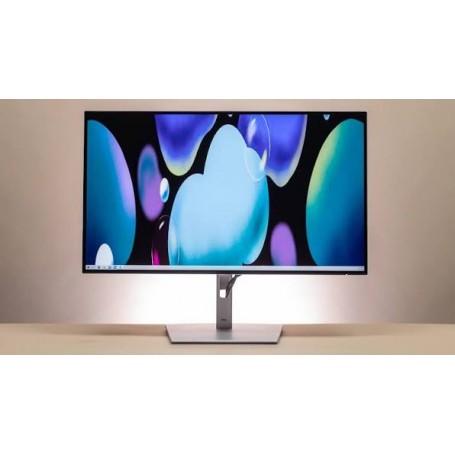

The Dell UltraSharp U2724DE is a 27-inch QHD Thunderbolt 4 hub monitor designed for professional workstations and multi-device desktop environments. It combines an IPS Black panel with 2560 x 1440 resolution, 120 Hz refresh rate, 2000:1 typical contrast ratio, and broad color coverage.
Display
The monitor uses IPS Black technology with a 16:9 aspect ratio, 350 cd/m² typical brightness, 178-degree horizontal and vertical viewing angles, and support for 1.07 billion colors. Color coverage includes 100% sRGB, 100% BT.709, 98% Display P3, and 98% DCI-P3, with Delta E below 2 average across the specified color spaces.
Thunderbolt 4 Connectivity
The U2724DE provides Thunderbolt 4 connectivity for video, data, and power delivery. The Thunderbolt 4 upstream port supports DisplayPort 1.4 Alternate Mode and power delivery up to 90 W, allowing a compatible laptop to connect through a single cable. A Thunderbolt 4 downstream port provides 15 W and supports video output for daisy-chain configurations.
Network and USB Connectivity
An integrated 2.5GbE RJ45 Ethernet port provides wired network connectivity through the monitor. Additional connectivity includes DisplayPort 1.4, HDMI, USB-C, multiple USB-A ports, a USB-C downstream port with 15 W charging, and an audio line-out.
Ergonomics and Mounting
The included stand supports height, tilt, swivel, and pivot adjustment. Height adjustment provides 150 mm of travel. The monitor also supports 100 x 100 mm VESA mounting.
Key Features
- 27-inch QHD 2560 x 1440 IPS Black display with 120 Hz refresh rate
- Thunderbolt 4 upstream connectivity with up to 90 W Power Delivery
- Thunderbolt 4 downstream port supporting 15 W and video daisy chaining
- Integrated 2.5GbE RJ45 Ethernet connectivity
- 98% Display P3 and 98% DCI-P3 color coverage with Delta E < 2 average
Applications
The U2724DE is suited to professional workstations, engineering and productivity desktops, laptop docking environments, multi-monitor installations, and deployments requiring integrated high-speed networking and peripheral connectivity.
DC Supplies Product Note
The Thunderbolt 4 upstream connection can provide up to 90 W of Power Delivery to a compatible computer while carrying video and data. For systems requiring more than 90 W, the computer may require its own power adapter in addition to the monitor connection.
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number / MPN | U2724DE |
| Product Type | Thunderbolt Hub Monitor |
| Product Line | UltraSharp |
| Screen Size | 27 inches |
| Panel Technology | IPS Black |
| Resolution | 2560 x 1440 QHD |
| Maximum Refresh Rate | 120 Hz |
| Aspect Ratio | 16:9 |
| Brightness | 350 cd/m² typical |
| Contrast Ratio | 2000:1 typical |
| Response Time | 8 ms Normal; 5 ms Fast |
| Viewing Angle | 178° horizontal / 178° vertical |
| Color Support | 1.07 billion colors |
| Color Gamut | 100% sRGB; 100% BT.709; 98% Display P3; 98% DCI-P3 |
| Color Accuracy | Delta E < 2 average |
| DisplayPort | 1 x DisplayPort 1.4 input; 1 x DisplayPort 1.4 output |
| HDMI | 1 x HDMI with HDCP 1.4 |
| Thunderbolt 4 Upstream | 1 x Thunderbolt 4, video and data, DisplayPort 1.4 Alternate Mode, up to 90 W Power Delivery |
| Thunderbolt 4 Downstream | 1 x Thunderbolt 4, 15 W, video output for daisy chaining |
| USB-C Upstream | 1 x USB-C, USB 3.2 Gen 2, 10 Gbps, data only |
| USB-A Downstream | 4 x USB-A, USB 3.2 Gen 2, 10 Gbps; one with BC 1.2 charging |
| USB-C Downstream | 1 x USB-C, USB 3.2 Gen 2, 10 Gbps, 15 W charging |
| Ethernet | 1 x RJ45 2.5GbE |
| Audio | 1 x audio line-out |
| VESA Mount | 100 x 100 mm |
| Height Adjustment | 150 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 80%, non-condensing |
| Dimensions with Stand (L × W × H) | 7.57 × 24.10 × 15.18–21.09 in |
| Dimensions without Stand (L × W × H) | 1.97 × 24.10 × 13.88 in |
| Weight with Stand and Cables | 16.25 lb |
| Panel Weight | 11.53 lb |
| Weight with Packaging | 22.51 lb |
| Warranty | 3-Year Advanced Exchange Service and Premium Panel Exchange |
Frequently Asked Questions
What resolution does the Dell U2724DE support?
The U2724DE supports QHD resolution of 2560 x 1440 at up to 120 Hz.
Does the U2724DE support Thunderbolt 4?
Yes. It has Thunderbolt 4 upstream and downstream ports. The upstream port supports video, data, and up to 90 W Power Delivery.
Does the U2724DE include Ethernet?
Yes. The monitor includes an RJ45 2.5GbE Ethernet port.
Can the U2724DE connect to a laptop with one Thunderbolt cable?
A compatible laptop can use the Thunderbolt 4 upstream connection for video, data, and up to 90 W Power Delivery through the monitor.
Does the U2724DE support monitor daisy chaining?
Yes. The Thunderbolt 4 downstream port supports video output for daisy-chain configurations, and the monitor also provides a DisplayPort 1.4 output.
What are the U2724DE dimensions?
With the stand, the monitor measures 7.57 inches deep by 24.10 inches wide, with height adjustable from 15.18 to 21.09 inches. Without the stand, it measures 1.97 × 24.10 × 13.88 inches.
