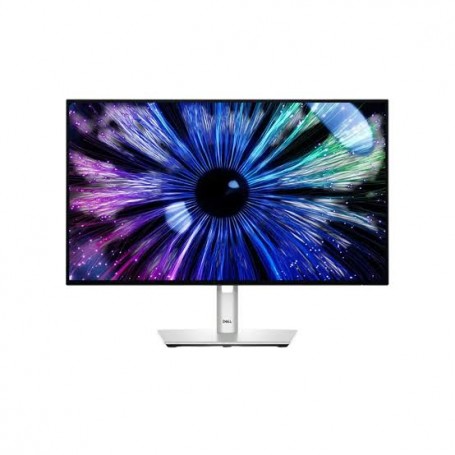

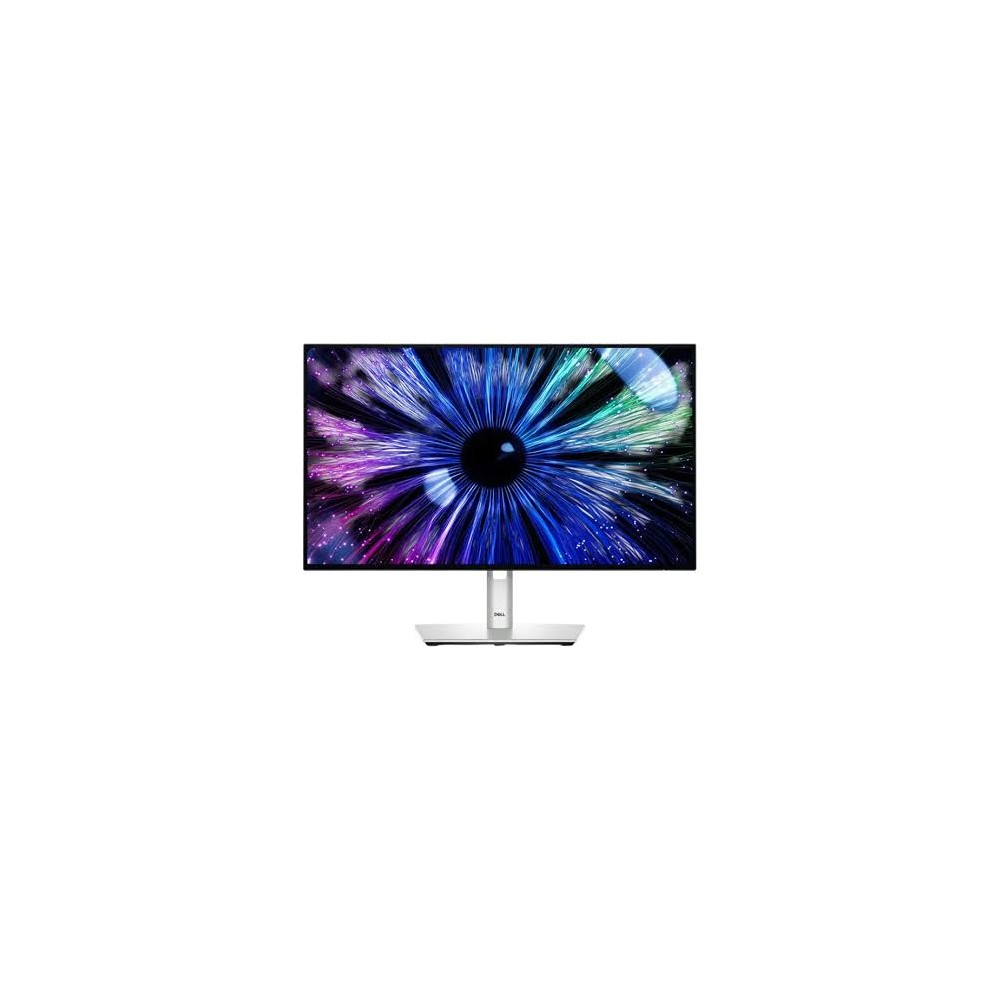

UltraSharp 24-Inch USB-C Hub Monitor
The Dell UltraSharp U2424HE is a 23.8-inch IPS business monitor designed for professional desktop and enterprise workstation environments. It provides Full HD 1920 × 1080 resolution at up to 120Hz, 250 cd/m² typical brightness, a 1000:1 typical contrast ratio, and 178° horizontal and vertical viewing angles.
USB-C Connectivity and Power Delivery
The U2424HE includes a USB-C upstream connection supporting DisplayPort 1.4 Alternate Mode, data, and up to 90W Power Delivery. This allows a compatible laptop to receive power, display output, and USB connectivity through a single cable. The monitor also includes a second USB-C upstream port for 10Gbps data connectivity.
Integrated Network and USB Hub
For workstation and managed office deployments, the monitor provides a 2.5GbE RJ45 Ethernet port, three 10Gbps USB-A downstream ports, a 10Gbps USB-C downstream port with up to 15W charging, and an additional USB-A charging port supporting BC1.2 at up to 2A.
Multimonitor and KVM Features
DisplayPort 1.4 output with Multi-Stream Transport (MST) supports daisy-chain configurations. An integrated KVM switch allows compatible peripherals to be shared between connected computers, making the U2424HE suitable for workstation environments where users switch between systems.
Ergonomic Design
The supplied stand provides 150 mm of height adjustment, -5° to +21° tilt, -45° to +45° swivel, and -90° to +90° pivot adjustment. The monitor also supports a 100 × 100 mm VESA mounting interface.
Key Features
- 23.8-inch IPS display with 1920 × 1080 resolution at up to 120Hz
- USB-C connectivity with up to 90W Power Delivery
- Integrated 2.5GbE Ethernet and 10Gbps USB hub
- Built-in KVM switch and DisplayPort MST daisy chaining
- 100% sRGB and BT.709 coverage with 85% DCI-P3
DC Supplies Product Note
For USB-C laptop deployments, verify that the host system supports DisplayPort Alternate Mode and can accept USB-C Power Delivery. The 90W PD capability can simplify single-cable workstation connectivity, while the integrated 2.5GbE port can reduce the need for a separate laptop Ethernet adapter or dock.
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number / MPN | U2424HE |
| Product Type | USB-C Hub Monitor |
| Display Size | 23.8 inches |
| Panel Type | IPS |
| Native Resolution | 1920 × 1080 |
| Maximum Refresh Rate | 120Hz |
| Aspect Ratio | 16:9 |
| Brightness | 250 cd/m² typical |
| Contrast Ratio | 1000:1 typical |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | 8ms Normal / 5ms Fast |
| Color Gamut | 100% sRGB, 100% BT.709, 85% DCI-P3 |
| USB-C Power Delivery | Up to 90W |
| Video Inputs | 1 × DisplayPort 1.4, 1 × HDMI |
| Display Output | 1 × DisplayPort 1.4 with MST |
| Ethernet | 1 × RJ45 2.5GbE |
| USB Hub | USB 3.2 Gen 2, up to 10Gbps |
| KVM | Yes |
| Height Adjustment | 150mm |
| VESA Mount | 100 × 100mm |
| Power Input | 100–240V AC, 50/60Hz |
| Typical Power Consumption | 14.5W |
| Maximum Power Consumption | 210W |
| Built-in Speakers | No |
Frequently Asked Questions
What resolution does the Dell U2424HE support?
The U2424HE has a native resolution of 1920 × 1080 and supports refresh rates up to 120Hz.
Does the U2424HE support USB-C charging?
Yes. Its USB-C upstream port supports DisplayPort Alternate Mode, data, and up to 90W USB Power Delivery for compatible systems.
Does the U2424HE have Ethernet?
Yes. The monitor includes an integrated RJ45 2.5GbE Ethernet port.
Does the U2424HE support daisy chaining?
Yes. Its DisplayPort 1.4 output supports Multi-Stream Transport (MST) for compatible daisy-chain configurations.
Does the Dell U2424HE include a stand?
Yes. The standard package includes the monitor, stand riser, and stand base, along with specified power and video/data cables.
