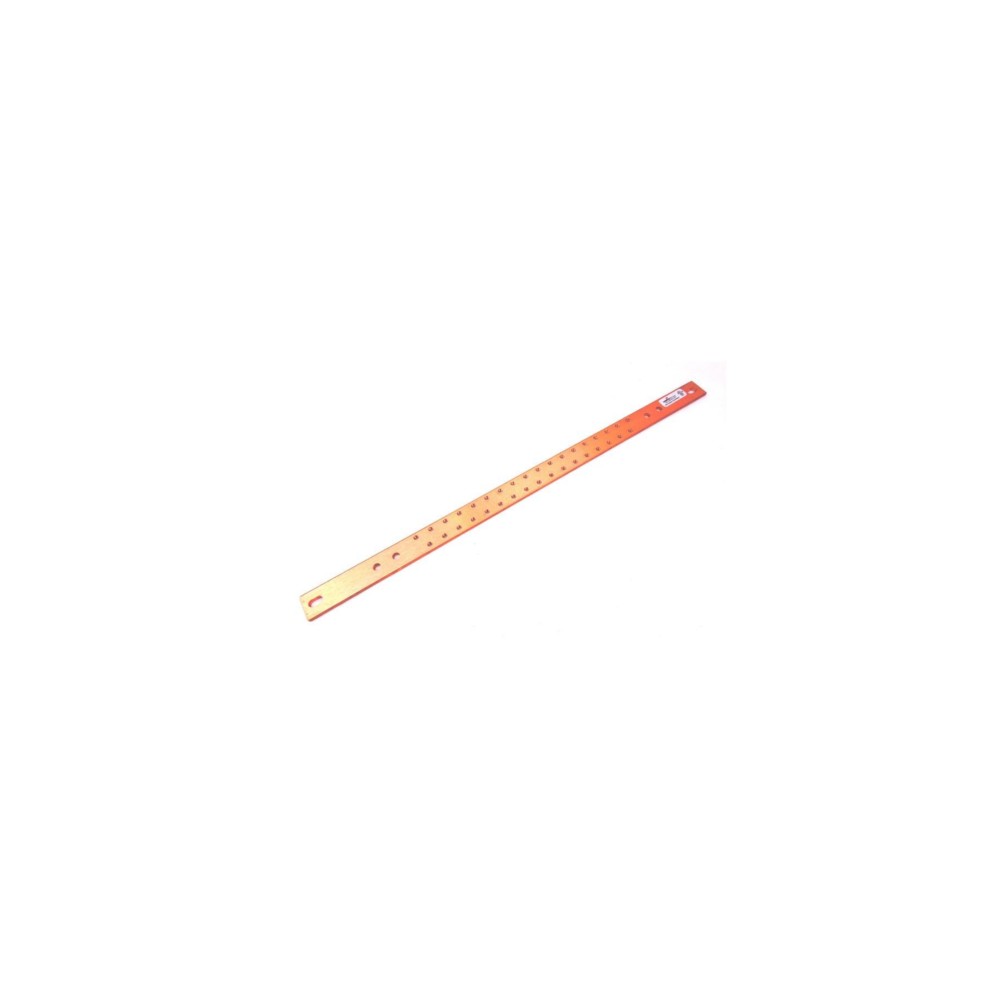

Eaton SBHB119K Horizontal Rack Ground Bar Kit

Eaton SBHB119K Horizontal Rack Ground Bar Kit

Overview

The Eaton SBHB119K is a horizontal rack ground bar kit designed for grounding and bonding applications in telecommunications, network, and data center rack environments. It is used to consolidate equipment grounds on standard 19-inch racks to improve electrical safety and support structured grounding schemes in enterprise infrastructure deployments.

The kit uses a solid copper grounding bar engineered for low-resistance grounding continuity across rack-mounted equipment. It includes mounting hardware and isolators that can be used to electrically separate the bar from the rack depending on deployment grounding requirements. The design supports integration into structured cabling, telecom, and IT rack systems requiring centralized grounding points.

The SBHB119K is commonly deployed in communications rooms, data centers, industrial networking cabinets, and edge infrastructure installations using 2-post or 4-post rack systems. Its horizontal mounting format simplifies grounding access within standard-width rack deployments while maintaining organized cable and bonding layouts.

This model is intended for rack-level grounding and bonding applications within controlled indoor environments. It is not designed for outdoor grounding systems, power distribution bus applications, or non-rack structural grounding installations.

Key Features

• Solid copper bar supports low-resistance grounding
• Fits standard 19-inch equipment rack installations
• Consolidates rack equipment grounding connections
• Includes mounting hardware and rack isolators
• Horizontal layout simplifies rack bonding access

Specifications
