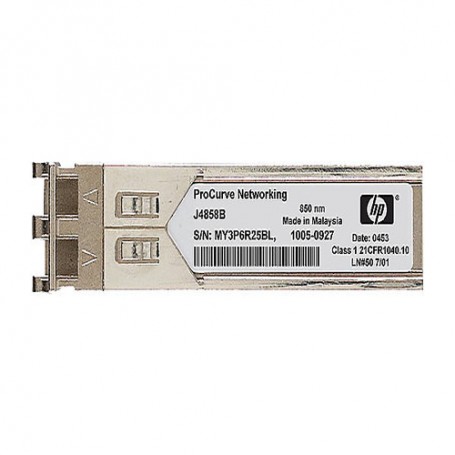

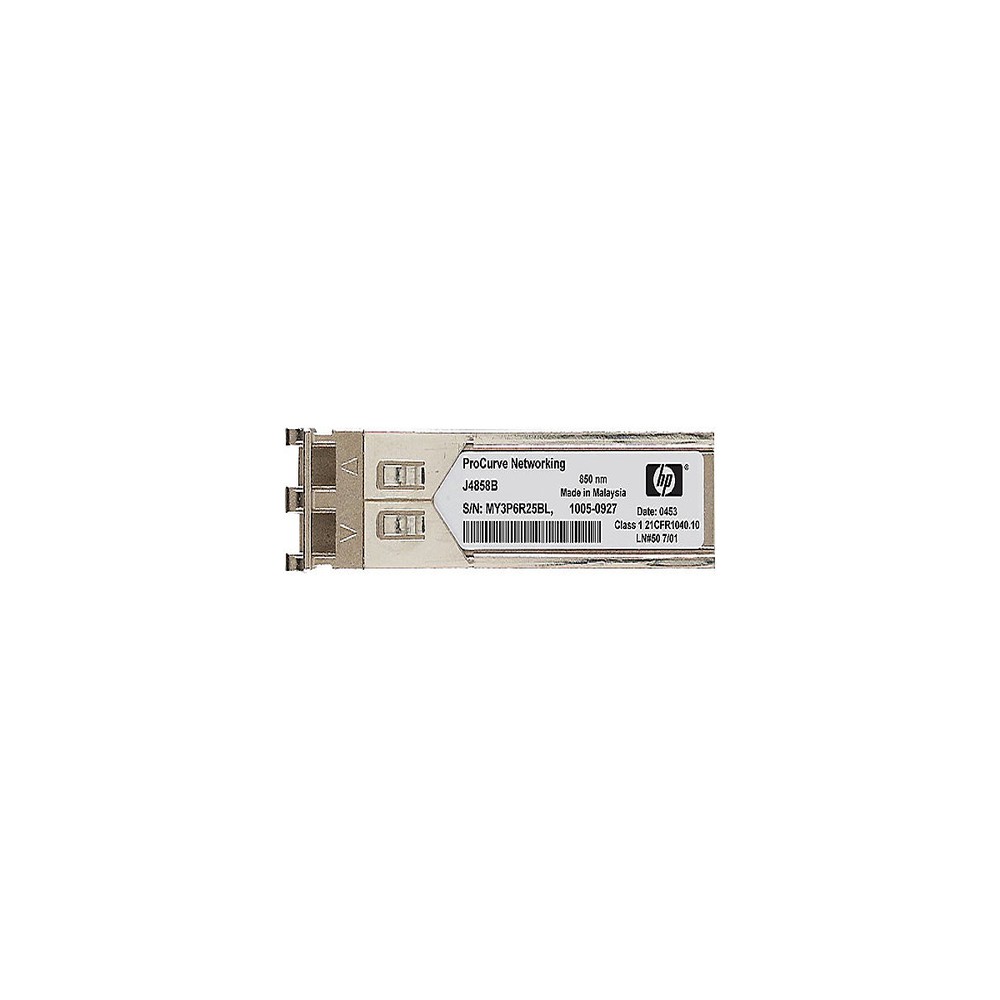

HPE X120 - SFP (mini-GBIC) transceiver module - GigE View larger

HPE JD119B X120 - SFP (mini-GBIC) transceiver module - GigE

JD119B

New

In Stock

HPE JD119B X120 - SFP (mini-GBIC) transceiver module - GigE

×




HP, HPE, HPE X120, HPE X120 - SFP (mini-GBIC) trans, HPE X120 - SFP (mini-GBIC), HPE X120 - SFP, HP JD119B, HPE JD119B, JD119B, JD119B access, JD119B review, JD119B mini, JD119B module, JD119B gige, JD119B hpe, JD119B x120, JD119B manual, JD119B datasheet, HPE JD119B X120, JD119B X120 - SFP

$85.00

Detailed Specifications

HPE JD119B X120 - SFP (mini-GBIC) transceiver module - GigE

Overview JD119B:

This HP® JD119B-CW59-10 compatible SFP transceiver provides 1000Base-CWDM throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1590nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent HP® transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. It is built to meet or exceed the specifications of HP®, as well as to comply with MSA (Multi-Source Agreement) standards to ensure seamless network integration. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Our Compatible HPE JD119B SFP transceiver price, datasheet pdf is based on our 1.25G-SFP-10D product, which has the same parameters and is manufactured in accordance with the same industry standards as its OEM counterpart. Our compatible HPE JD119B X120 1G SFP LC LX Transceiver version is designed for operation over a Double Fiber Single-Mode Fiber (SMF) optical cable. It has a minimum guaranteed optical budget of 15 dB, which typically is enough to reach about 10 km. However, distance is only an indicative parameter calculated for identification comfort. Finally, we calculate distance while keeping in mind the minimum (guaranteed) optical budget and the average attenuation of optical cabling in the industry. Our HPE JD119B compatible transceiver uses a high-quality FP Laser transmitter operating at 1310 nm nominal wavelength and a 1310 nm PIN Photodiode receiver. This module supports DDM/DOM optical diagnostics and provides diagnostic data about the current operating conditions. This compatible HPE JD119B X120 1G SFP LC LX Transceiver has a Double LC connector and module is designed for operation in standard temperature networking environments ranging from 0°-70°C. The transceiver chipset supports data rates ranging from 1.063-1.25Gbps and such applications as Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps). It is important to note that the mentioned application support will vary depending on the port where the module will be used, and it supported applications as well as module speed configuration during ordering process, but we can ensure that our module will support at least the same functionality as its OEM counterpart. This is a multi-purpose transceiver that can be used in a variety of different places in today’s networking. As a result, Internet Service Provider (ISP) Gigabit Ethernet communication links, JD119B Enterprise LAN Networks, Data Center LAN Networks, and other optical links are the most popular applications for this product.

Our compatible HPE JD119B module is CE/RoHS certified, it meets product safety standards, and is compliant with SFP Multi Source Agreement (MSA) SFF-8477 industry standard. To ensure smooth operation, we have completed compatibility tests for this module with the most recent platforms of HPE JD119B networking equipment, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly in HPE JD119B platforms. We are committed to quality, therefore before delivering our products, we conduct stringent quality inspections that include optical parameter measurements, connector cleanliness tests, and EEPROM memory data validation tests. For more technical specs of the HPE JD119B compatible Transceiver, please see our JD119B datasheet pdf.

Features JD119B

• Functionally similar to HP JD119B
• Up to 20km on 9/125µm SMF
• Compliant with IEEE 802.3z
• Support Digital diagnostics
• Hot-pluggable SFP footprint
• Single 3.3V power supply
• LC Duplex con

Specification JD119B

  Compatible OEM Part Number JD119B   Optcore Part Number OSP1250-3120DCR-HP
  Form Factor SFP   Data Rate 1.25Gb/s
  Wavelength 1310 nm   Fiber Type SMF
  Max Distance 20 km   Optical Components FP/PIN
  Transmitter Power -9 ~ -3 dBm   Extinction ratio > 9 dB
  Receiver Sensitivity < -22 dBm   Receiver Overload > -3 dBm
  Connector LC Duplex   Digital Diagnostic Monitoring Yes
  Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C
  Weight 0.025 kg
  Application 1x Fiber Channel, Switch to Switch Interface

Gigabit Ethernet, Switched Backplane Applications

Router/Server Interface, Other Optical Links

  Compliance IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
