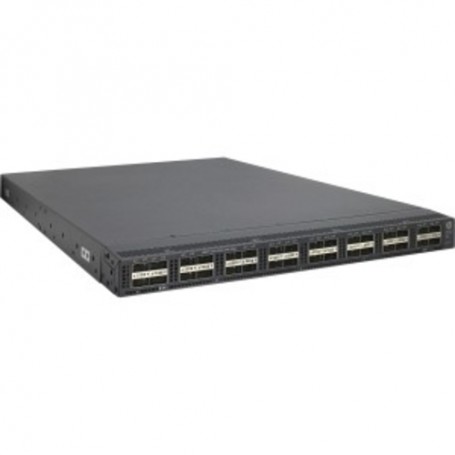

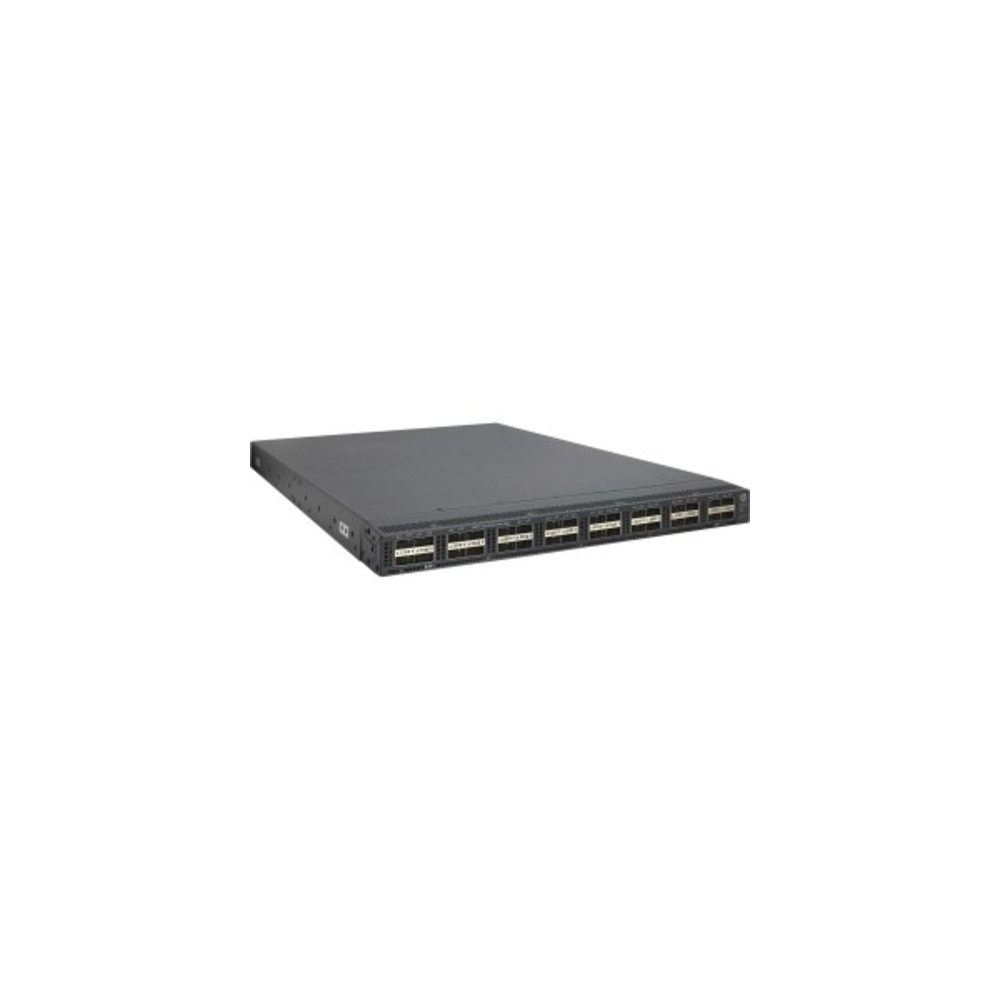

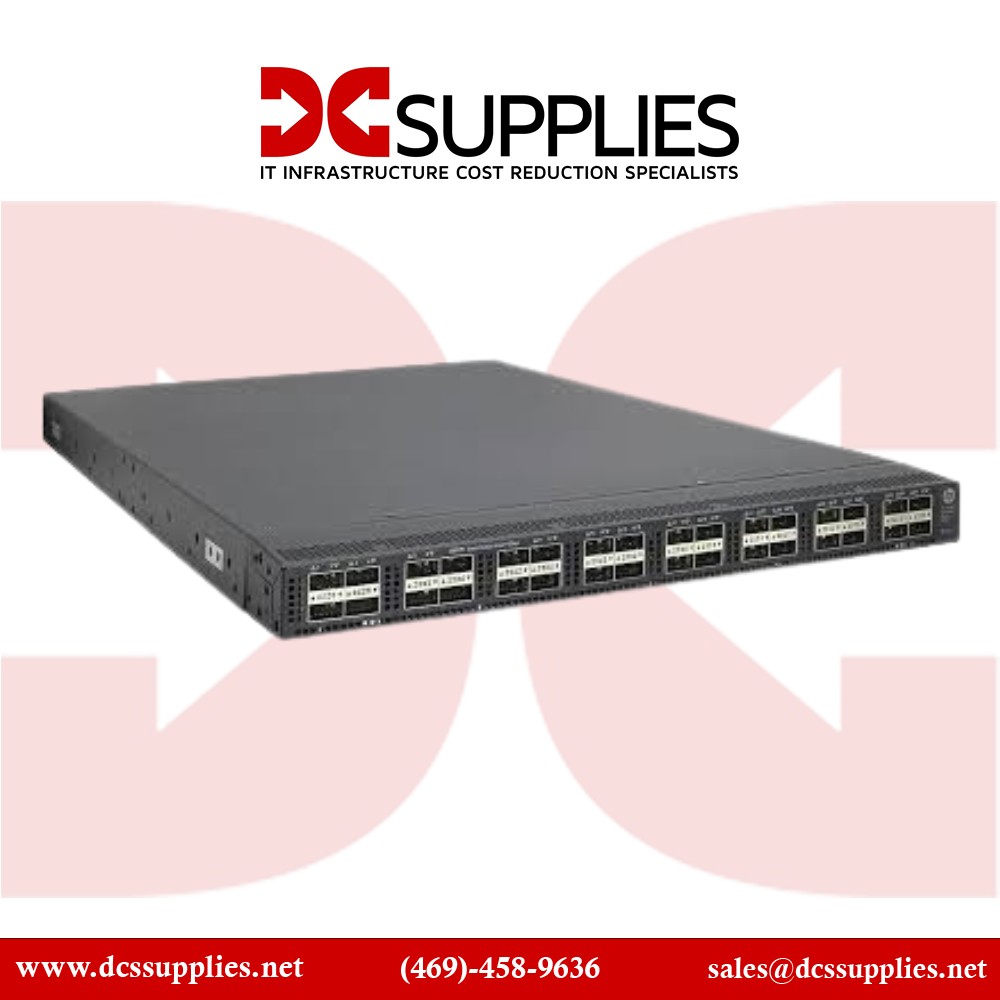

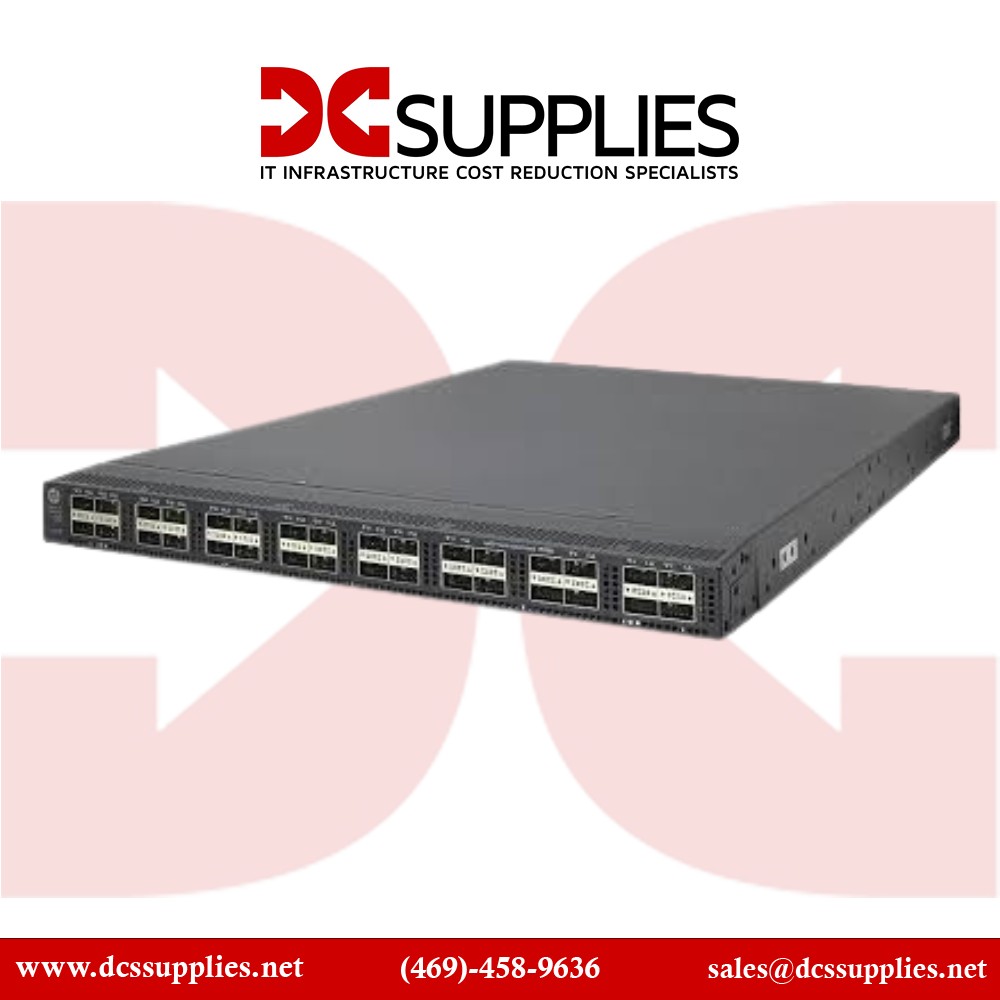

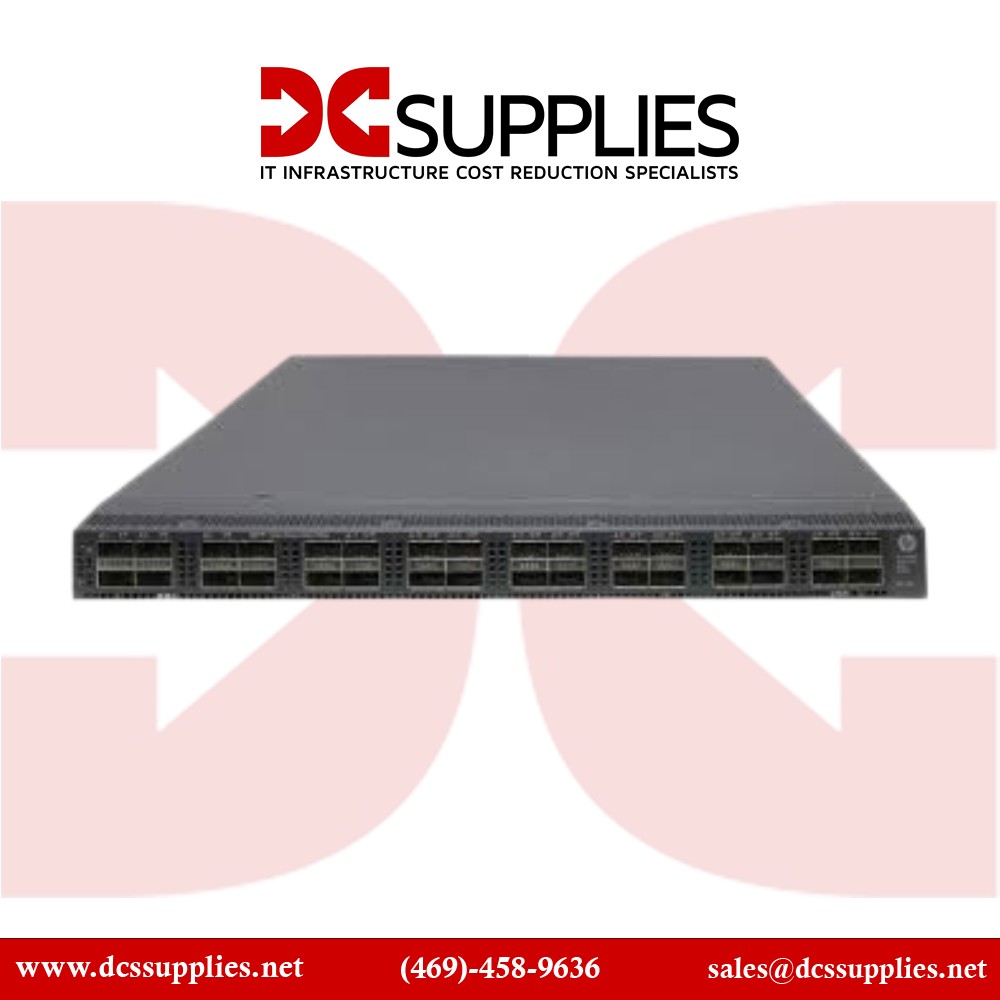

The HP FlexFabric 5930 Switch Series is a family of high performance and ultra-low-latency 40 GbE top-of-rack (ToR) data center switches. The switch series is part of the HP FlexFabric data center solution, which is a cornerstone of the FlexNetwork architecture.
The FlexFabric 5930 Switch Series is ideally suited for deployment at the aggregation or server access layer of large enterprise data centers, or at the core layer of medium-sized enterprises data centers.
With the increase pace of deploying virtualized applications, adopting software-defined networking, and the and server-to-server traffic, many data centers now require spine and ToR switch innovations that will meet their requirements. The HP FlexFabric 5930 is optimized to meet the increasing requirements for higher performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-lowlatency.
| General Information |
|---|
| Brand Name: |
HPE |
| Manufacturer: |
Hewlett Packard Enterprise |
| Manufacturer Part Number: |
JG726A |
| Manufacturer Website Address: |
http://www.hpe.com |
| Packaged Quantity: |
1 |
| Product Model: |
5930-32QSFP+ |
| Product Name: |
FlexFabric 5930-32QSFP+ Switch |
| Product Series: |
5930 |
| Product Type: |
Layer 3 Switch |
| I/O Expansions |
|---|
| Expansion Slot Type: |
QSFP+ |
| Number of Total Expansion Slots: |
32 |
| Interfaces/Ports |
|---|
| Bypass: |
No |
| LRE Port: |
No |
| Management Port: |
Yes |
| Port/Expansion Slot Details: |
32 x 40 Gigabit Ethernet Expansion Slot |
|
40 Gigabit Ethernet |
| Token Ring Port: |
No |
| USB: |
Yes |
| Management & Protocols |
|---|
| Manageable: |
Yes |
| Management: |
- SNMP v1, v2c, v3
- Remote Management
- sFlow
- CLI
- DHCP
- VLAN
- Telnet
- Web Based Management
|
| Media & Performance |
|---|
| Ethernet Technology: |
40 Gigabit Ethernet |
| Network Technology: |
40GBase-X |
| Memory |
|---|
| Flash Memory: |
512 MB |
| Memory Technology: |
SDRAM |
| Standard Memory: |
4 GB |
| Miscellaneous |
|---|
| Certifications & Standards: |
Safety:
- UL 60950-1
- EN 60825-1 Safety of Laser Products-Part 1
- EN 60825-2 Safety of Laser Products-Part 2
- IEC 60950-1
- CAN/CSA-C22.2 No. 60950-1
- Anatel
- ULAR
- GOST
- EN 60950-1/A11
- FDA 21 CFR Subchapter J
- NOM
Emissions:
- VCCI Class A
- EN 55022 Class A
- ICES-003 Class A
- ANSI C63.4 2003
- AS/NZS CISPR 22 Class A
- EN 61000-3-2:2006
- EN 61000-3-3:1995 +A1:2001+A2:2005
- EMC Directive 2004/108/EC
- FCC (CFR 47, Part 15) Class A
Immunity:
- ETSI EN 300 386 V1.3.3
- EN 55024:1998+ A1:2001 + A2:2003
- EN 61000-4-
- IEC 61000-4-2
- EN 61000-4-3
- IEC 61000-4-3
- EN 61000-4-4
- IEC 61000-4-4
- EN 61000-4-5
- IEC 61000-4-5
- EN 61000-4-6
- IEC 61000-4-6
- IEC 61000-4-8
- EN 61000-4-8
- EN 61000-4-11
- IEC 61000-4-11
- EN 61000-3-2
- IEC 61000-3-2
- EN 61000-3-3
- IEC 61000-3-3
IEEE Standards:
- 802.1D
- 802.1p
- 802.1Q
- 802.1s
- 802.1we
- 802.3ad
- 802.3ae
- 802.3ag
- 802.3ah
- 802.3x
|
| Environmental Certification: |
RoHS |
| Environmentally Friendly: |
Yes |
| Network & Communication |
|---|
| Layer Supported: |
3 |
| Physical Characteristics |
|---|
| Compatible Rack Unit: |
1U |
| Depth: |
26" |
| Form Factor: |
Rack-mountable |
| Height: |
1.7" |
| Weight (Approximate): |
28.66 lb |
| Width: |
17.3" |
| Power Description |
|---|
| Input Voltage: |
110 V AC |
| PoE (RJ-45) Port: |
No |
| Power Source: |
Power Supply |
| Warranty |
|---|
| Limited Warranty: |
1 Year |
| Basic |
|---|
| Brand Name: |
HPE |
| Ethernet Technology: |
40 Gigabit Ethernet |
| Expansion Slot Type: |
QSFP+ |
| Form Factor: |
Rack-mountable |
| Layer Supported: |
3 |
| Manageable: |
Yes |
| Network Technology: |
40GBase-X |
| Number of Total Expansion Slots: |
32 |
| PoE (RJ-45) Port: |
No |
| Port/Expansion Slot Details: |
40 Gigabit Ethernet |
| Power Source: |
Power Supply |
| Product Family: |
5930 |
| Product Type: |
Layer 3 Switch |
