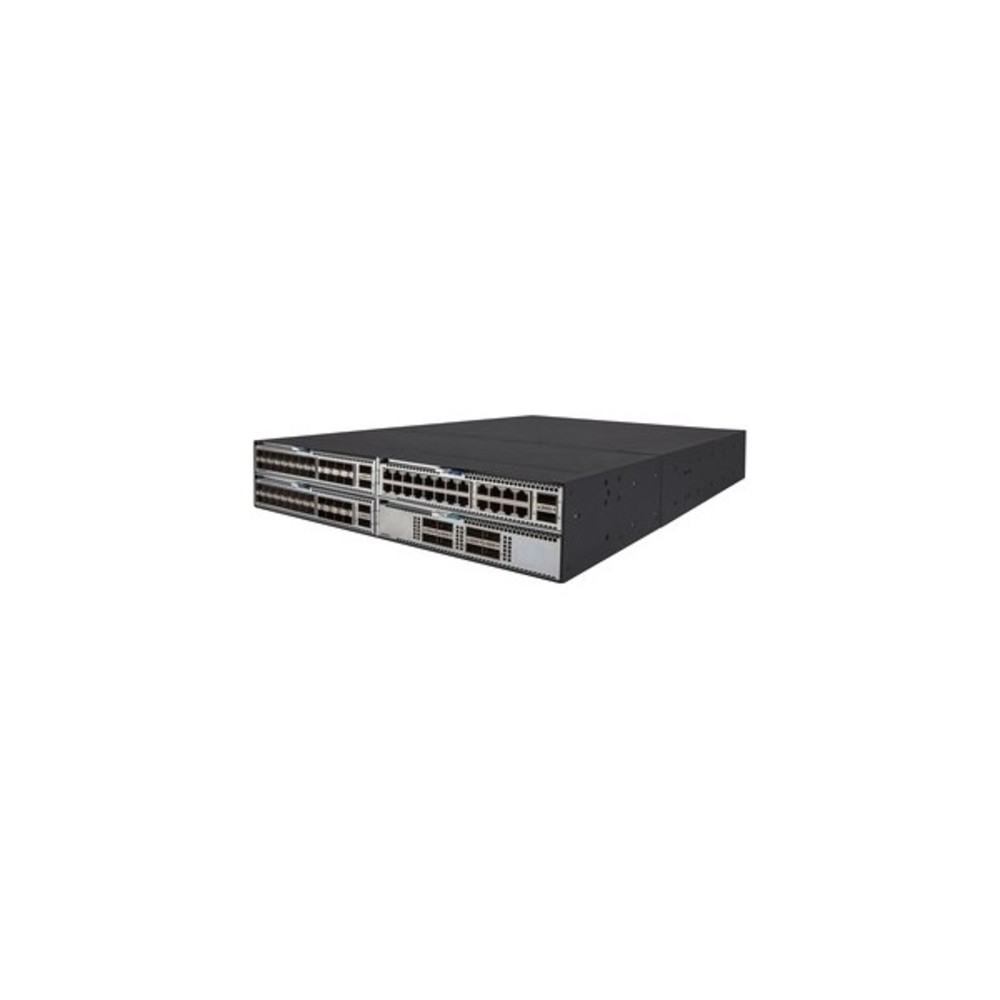

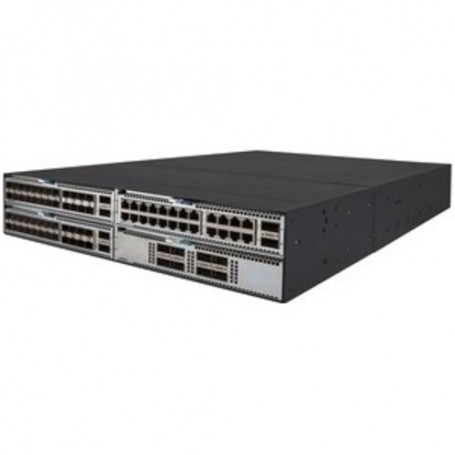

The HPE FlexFabric 5940 Switch Series is a family of high-performance and low-latency 10GbE and 40GbE top-of-rack (ToR) data center switches. The 5940 Switch includes 100G uplink technology which is part of the HPE FlexFabric data center solution and is a cornerstone of the FlexNetwork architecture. The 5940 Switch is suited for deployment at the aggregation or server access layer of large enterprise data centers or at the core layer of medium-sized enterprises. It is optimized for high-performance server connectivity, convergence of Ethernet and storage traffic, and virtual environments. What's new
- VXLAN Layer 2 and Layer 3 gateway support.
- Pre-configured switch bundles for deployment in the campus aggregation and core.
- Comware 7 advanced modular operating system designed for high availability.
- IRF supports of up to nine switches simplifies management by up to 88%.
- EVPN, OpenFlow and SDN automate manual tasks and speed service delivery.
| General Information | |
|---|---|
| Brand Name: | HPE |
| Manufacturer: | Hewlett Packard Enterprise |
| Manufacturer Part Number: | JH692A#ABA |
| Manufacturer Website Address: | http://www.hpe.com |
| Product Line: | FlexNetwork |
| Product Name: | FlexNetwork 5940 Switch Chassis |
| Product Series: | 5940 |
| Product Type: | Switch Chassis |
| I/O Expansions | |
|---|---|
| Number of Total Expansion Slots: | 4 |
| Interfaces/Ports | |
|---|---|
| Modular: | Yes |
| Port/Expansion Slot Details: | 4 x Expansion Slot |
| Uplink Port: | Yes |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Media & Performance | |
|---|---|
| Ethernet Technology: | 100 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported: | Optical Fiber |
| Network Technology: | 1000Base-X |
| 40GBase-X | |
| Miscellaneous | |
|---|---|
| Environmental Certification: | RoHS |
| Environmentally Friendly: | Yes |
| Package Contents: |
|
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Compatible Rack Unit: | 2U |
| Depth: | 26" |
| Form Factor: | Rack-mountable |
| Height: | 3.5" |
| Weight (Approximate): | 45.30 lb |
| Width: | 17.3" |
| Power Description | |
|---|---|
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
| Warranty | |
|---|---|
| Limited Warranty: | 1 Year |
| Basic | |
|---|---|
| Brand Name: | HPE |
| Ethernet Technology: | 10 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| 40 Gigabit Ethernet | |
| Gigabit Ethernet | |
| Form Factor: | Rack-mountable |
| Layer Supported: | 3 |
| Manageable: | Yes |
| Media Type Supported: | Optical Fiber |
| Network Technology: | 1000Base-X |
| 100GBase-X | |
| 10GBase-X | |
| 40GBase-X | |
| Number of Total Expansion Slots: | 4 |
| Power Source: | Power Supply |
| Product Family: | FlexNetwork 5940 |
| Product Type: | Switch Chassis |
| Redundant Power Supply Supported: | Yes |
