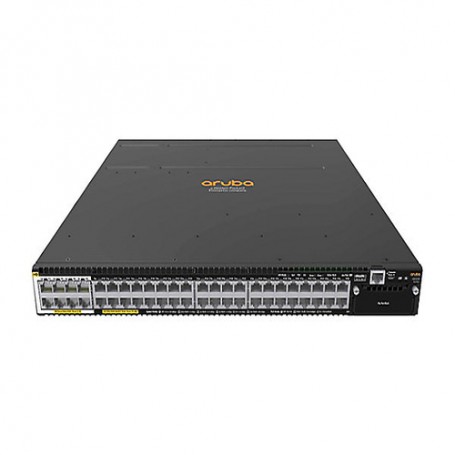

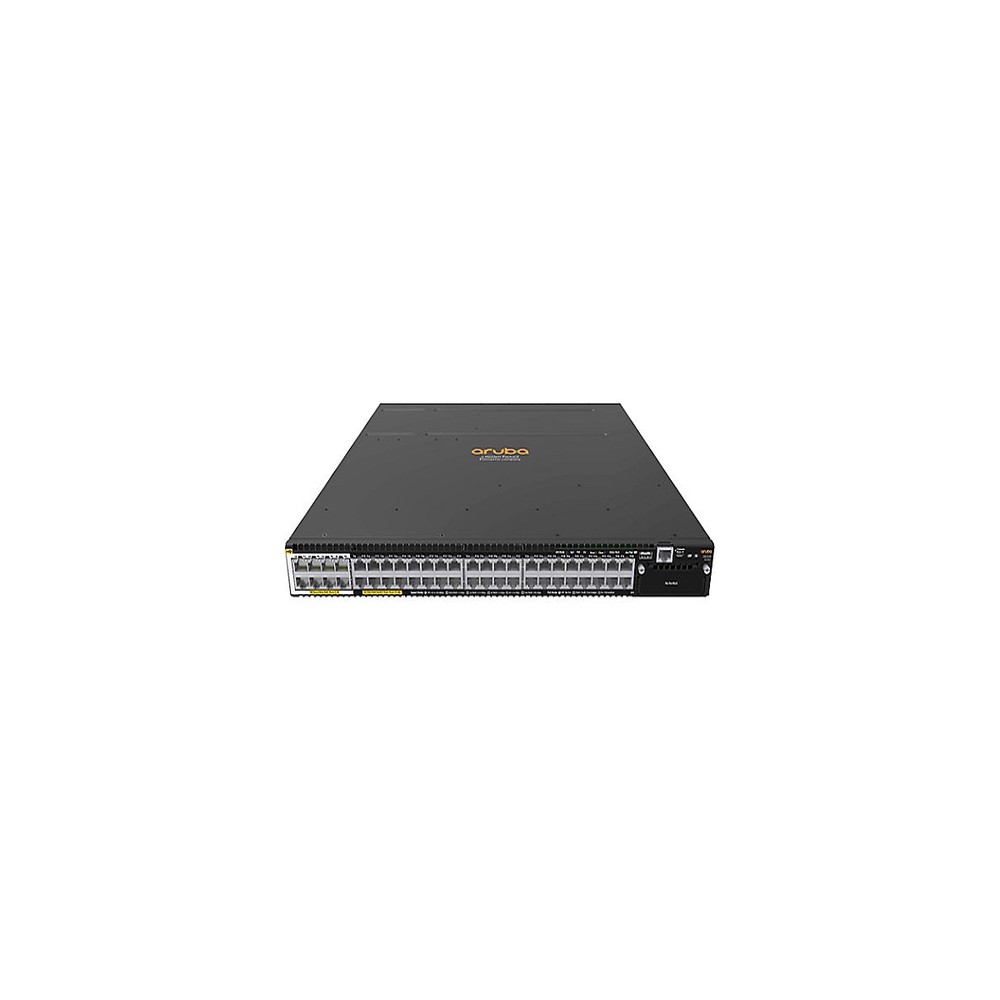

HPE Aruba 3810M 24G 1-slot Switch - switch - 24 ports - managed - rack-mountabl View larger

HPE Aruba 3810M 24G 1-slot Switch (JL071A)

Online only

JL071A

New

HPE Aruba 3810M 24G 1-slot Switch (JL071A)

×




HP, HPE, HPE Aruba 3810M 24G, HPE Aruba 3810M 24G switch, HPE Aruba 3810M switch, HPE Aruba 3810M 24 ports switch, HP JL071A, HPE JL071A, JL071A, HPE Aruba 3810M 24 ports

Detailed Specifications

HPE Aruba JL071A 3810M 24G 1-slot Switch - switch - 24 ports - managed - rack-mountabl

The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, this advanced Layer 3 switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. The Aruba 3810 is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

Performance and Power for the Digital Workplace

  • The Aruba 3810 Switch Series is an industry leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow.
  • HPE Smart Rate ports support multi-gigabit Ethernet speeds (1, 2.5, 5, and 10 gigabit Ethernet) on existing cabling for cost-effective and convenient network upgrades with no rip and replace of cabling.
  • Optimized for the digital workplace with unified management and security tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
  • Rightsizes deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor.
  • Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, robust QoS and policy-based routing are included with no software licensing. Built-in programmable and easy to use REST API interface provides configuration automation for Mobile-first campus networks.

Resiliency and High Availability You Can Depend On

  • The Aruba 3810 Switch Series is designed with a ProVision ASIC designed to enable the mobile campus with very low latency, increased packet buffering, and adaptive power consumption.
  • Backplane stacking technology delivers high-performance stacking with up to 336 Gb/s of stacking throughput and increased resiliency. Up to ten Aruba 3810 switches can be stacked in a ring topology or up to five can be stacking in a mesh topology.
  • Dual hot-swappable power supplies provide power and allow swapping of modules on the fly to reduce impact on the network availability. More performance with selectable queue configurations and associated memory buffering that best meets requirements of prioritized network applications.
  • Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications.
  • Uninterrupted switching and routing for improved application experience and enhanced L3 availability. Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.

Trusted Security with Unmatched Quality of Service

  • The Aruba 3810 Switch Series includes robust security and quality of services features to build a mobile campus network that meets corporate policies and compliance requirements.
  • Flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities for improved user experience.
  • Enhanced security and policy-driven application authentication with concurrent 802.1X, MAC and Web Authentication modes. Prevent unwanted traffic with advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection.
  • Powerful multilevel-access security controls, such as role-based management, configurable password complexity, RADIUS/TACACS+, and SSH for improved security and control change management access.
  • Tunneled Node to transport network traffic on a per-port basis to Aruba controller with authentication and network policies applied and enforced at the controller. Industry standard MACsec provides switch-to-switch link level security.

Technical Specifications

Main Features

  • Switch
  • L3
  • managed
  • 24 x 10/100/1000
  • rack-mountable
  • Environmental Parameters

  • 15 - 95% (non-condensing)
  • 15 - 90% (non-condensing)
  • 113 °F
  • 158 °F
  • 32 °F
  • -40 °F
  • Header

  • Aruba
  • PC
  • Aruba
  • 3810M 24G 1-slot Switch
  • 1
  • Aruba
  • Interface Provided

  • RJ-45
  • 24
  • 1000Base-T
  • Type B
  • Micro-USB
  • 1
  • Console
  • Management (LAN)
  • Miscellaneous

  • RADIUS, TACACS+
  • Black
  • CAN/CSA C22.2 No. 60950, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, EN 60825, EN 60950, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2013, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008, EN55022, EN55022:2010, EN55024:2010, FCC Class A certified, IEC 60950, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, UL 60950, UL 60950-1, VCCI Class A
  • SSL
  • 1
  • Fan tray
  • Networking

  • Layer 3
  • IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x
  • Wired/Wireless
  • BOOTP support, DHCP support, DiffServ support, Flow control, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), sFlow, Syslog support, VLAN support
  • Rack-mountable
  • 64K entries
  • Yes
  • 24
  • PoE
  • RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH-2, XRMON
  • BGP, BGP-4, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2
  • Stackable
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch
  • Power Device

  • 0
  • 2
  • Internal power supply
  • Processor

  • 2
  • Service

  • Lifetime
  • Limited warranty
  • Slot Provided

  • 1
  • 1
  • Expansion slot
  • Stacking Module slot
  • Dimensions & Weight

  • 17 in
  • 1.7 in
  • 12.76 lbs
  • 17.4 in
  • Service & Support

  • Limited lifetime warranty
  • Capacity

  • IPv4 routing table entries
  • 10000
  • IPv6 routing table entries
  • 5000
  • Flash Memory

  • 1 GB
  • Performance

  • Latency (1 Gbps)
  • 2.8 µs
  • Latency (10 Gbps)
  • 1.8 µs
  • Latency (40 Gbps)
  • 1.5 µs
  • Routing/switching capacity
  • 160 Gbps
  • Switching fabric bandwidth
  • 169 Gbps
  • Throughput (64-byte packet size)
  • Up to 95.2 Mpps
  • Ports

  • 24
  • 10/100/1000
  • RAM

  • 6 MB
  • DDR3 SDRAM
