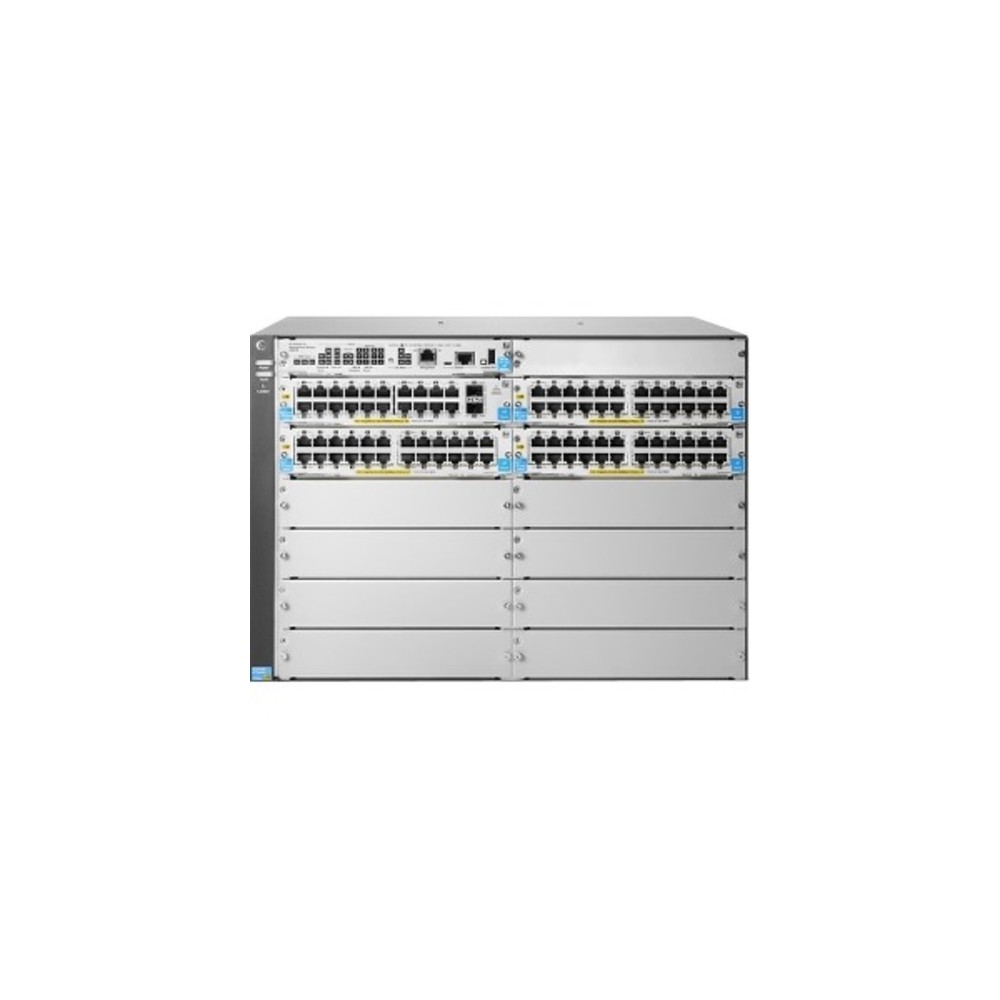

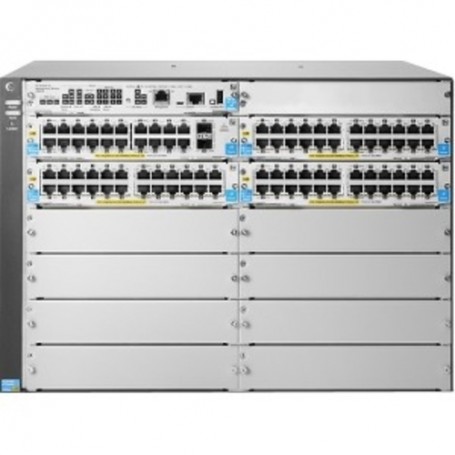

The HP 5400R zl2 Switch Series is the next-generation modular switch designed for enterprise edge and SMB and branch office core deployments. With enterprise-class resiliency and unprecedented flexibility, scalability and ease of use, the 5400R supports demanding network features such as hitless failover, power supply redundancy, QoS and security with full L3 features. Robust virtualization with HP AllianceOne solutions and flexible connectivity including 10 Gigabit Ethernet and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
| General Information |
|---|
| Brand Name: |
HPE |
| Manufacturer: |
Hewlett Packard Enterprise |
| Manufacturer Part Number: |
J9826A |
| Manufacturer Website Address: |
http://www.hpe.com |
| Packaged Quantity: |
1 |
| Product Model: |
5412R zl2 |
| Product Name: |
5412R-92G-PoE+/4SFP (No PSU) v2 zl2 Switch |
| Product Series: |
5400R zl2 |
| Product Type: |
Switch Chassis |
| I/O Expansions |
|---|
| Expansion Slot Type: |
Switching Module |
| Number of SFP Slots: |
4 |
| Number of Total Expansion Slots: |
12 |
| Shared SFP Slot: |
No |
| Interfaces/Ports |
|---|
| LRE Port: |
No |
| Management Port: |
Yes |
| Modular: |
Yes |
| Number of PoE+ (RJ-45) Ports: |
92 |
| Port/Expansion Slot Details: |
Gigabit Ethernet |
| Stack Port: |
No |
| Token Ring Port: |
No |
| Total Number of Network Ports: |
92 |
| Management & Protocols |
|---|
| Manageable: |
Yes |
| Management: |
- SNMP v1/v2c/v3
- sFlow
- CLI
- DHCP
- VLAN
- Web Based Management
- Telnet
|
| Media & Performance |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
10/100/1000Base-T |
|
1000Base-X |
| Memory |
|---|
| Flash Memory: |
16 MB |
| Memory Technology: |
DDR3 SDRAM |
| Standard Memory: |
4 GB |
| Miscellaneous |
|---|
| Certifications & Standards: |
Safety:
- CSA 22.2 No. 60950
- UL 60950
- IEC 60950
- EN 60950
Emissions:
- FCC part 15 Class A
- EN 55022
- CISPR 22 Class A
IEEE Standards:
- 802.1ad
- 802.1AX-2008
- 802.1D
- 802.1p
- 802.1Q
- 802.1s
- 802.1v
- 802.1w
- 802.3ad
- 802.3u
- 802.3ab
- 802.3at
Immunity:
- EN 55024
- CISPR 24
- IEC 61000-4-2
- HP ENV. 765.002
- IEC 61000-4-3
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 61000-4-6
- IEC 61000-4-8
- IEC 61000-4-11
- EN 61000-3-2
- IEC 61000-3-2
- EN 61000-3-3
- IEC 61000-3-3
|
| Package Contents: |
- 5412R-92G-PoE+/4SFP (No PSU) v2 zl2 Switch
- 3 x 24-port Gig-T PoE+ v2 zl Module (J9534A)
- 1 x 20-port Gig-T PoE+ / 4-port SFP v2 zl Module (J9535A)
- Mounting Kit
|
| Network & Communication |
|---|
| Layer Supported: |
3 |
| Physical Characteristics |
|---|
| Compatible Rack Unit: |
7U |
| Depth: |
17.8" |
| Form Factor: |
Rack-mountable |
| Height: |
12.1" |
| Weight (Approximate): |
45.40 lb |
| Width: |
17.5" |
| Power Description |
|---|
| Input Voltage: |
120 V AC |
| PoE (RJ-45) Port: |
No |
| Power Source: |
Power Supply |
| Redundant Power Supply Supported: |
Yes |
| Warranty |
|---|
| Limited Warranty: |
Lifetime |
| Basic |
|---|
| Brand Name: |
HPE |
| Ethernet Technology: |
Gigabit Ethernet |
| Expansion Slot Type: |
Management Module |
|
Switching Module |
| Form Factor: |
Rack-mountable |
| Layer Supported: |
3 |
| Manageable: |
Yes |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
10/100/1000Base-T |
|
1000Base-X |
| Number of Total Expansion Slots: |
12 |
| PoE (RJ-45) Port: |
No |
| Port/Expansion Slot Details: |
Gigabit Ethernet |
| Power Source: |
Power Supply |
| Product Type: |
Switch Chassis |
| Redundant Power Supply Supported: |
Yes |
| Stack Port: |
No |
| Total Number of Network Ports: |
92 |
