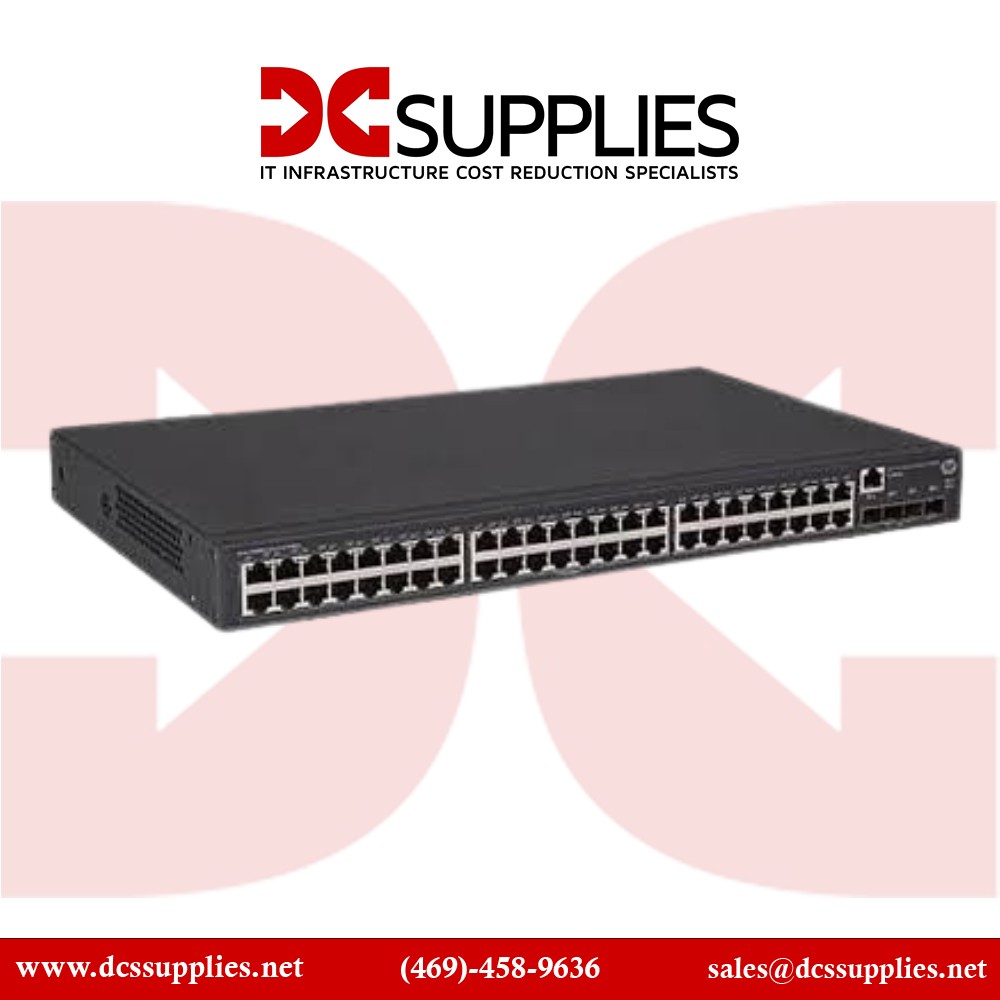

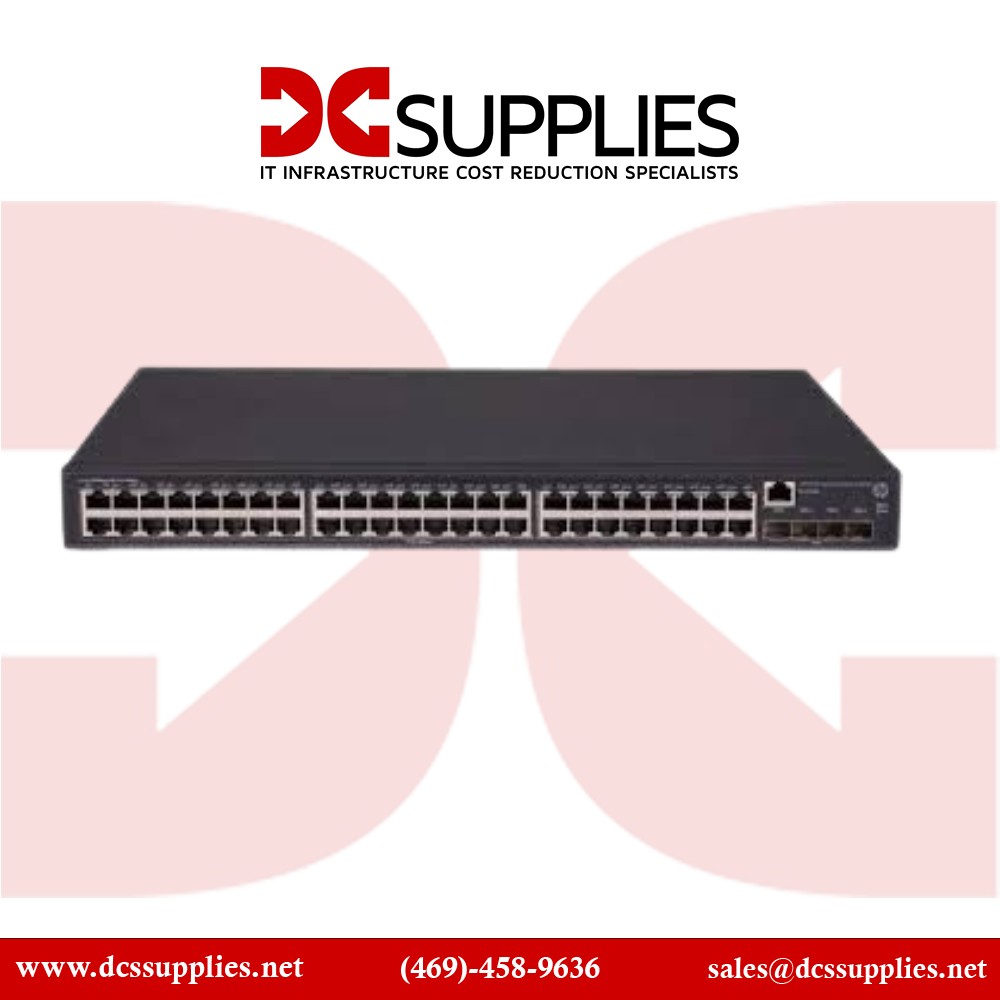

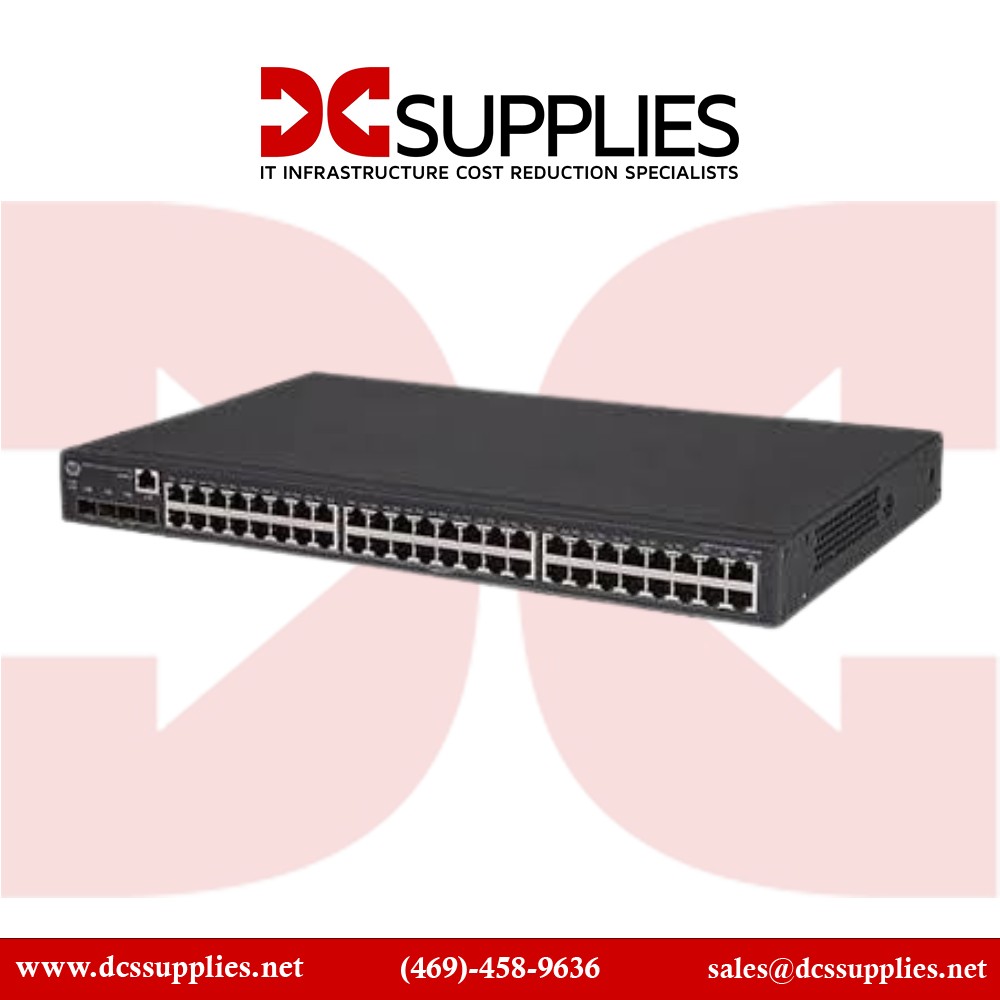

HPE 5130-48G-4SFP+ EI - switch - 48 ports - managed - rack-mountable View larger

HPE 5130-48G-4SFP+ EI - switch - 48 ports - managed - rack-mountable

JG934A#ABA

Refurbished

In Stock

HPE 5130-48G-4SFP+ EI - switch - 48 ports - managed - rack-mountable

×




HP, HPE, HPE 5130-48G switch, HPE 5130-48ports, HPE 5130-48ports switch, HPE 5130 switch, HPE 5130-48G, HP JG934A ABA, HPE JG934A ABA, JG934A ABA, JG934A

$545.00

Detailed Specifications

HPE 5130-48G-4SFP+ EI - switch - 48 ports - managed - rack-mountable

The HPE 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. The 5130 EI Switch Series can be managed with HPE Intelligent Management Center (IMC) for a single view of your entire network.

Technical Specifications

Main Features

  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
  • rack-mountable
  • Environmental Parameters

  • 10 - 90% (non-condensing)
  • 5 - 95% (non-condensing)
  • 113 °F
  • 158 °F
  • 32 °F
  • -40 °F
  • Header

  • HPE
  • PC
  • United States
  • English
  • Aruba Instant AP
  • 5130-48G-4SFP+ EI
  • 1
  • HPE
  • Interface Provided

  • Management
  • 1
  • Console
  • RJ-45
  • 48
  • 1000Base-T
  • SFP+
  • 4
  • Gigabit / 10Gbit LAN
  • Miscellaneous

  • HWTACACS, RADIUS, Secure Shell v.2 (SSH2), TACACS+
  • Black
  • ANATEL, ANSI C63.4-2009, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EMC, EN 300 386 V1.6.1, EN 300386, EN 60825-1, EN 60950-1, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-29, EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2009, EN55022:2010 Class A, EN55024, FCC CFR47 Part 15, FCC Class A certified, FDA, IEC 60950-1, IEC 61000-4-3:2006, NOM, RoHS, UL 60950-1, VCCI V-3 Class A ITE, VCCI V-4, WEEE
  • SSL
  • 1
  • 61.4 year(s)
  • Included
  • Networking

  • Layer 3
  • IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), Device Link Detection Protocol (DLDP) support, DHCP protection, DHCP relay, DHCP support, Dynamic ARP protection, Endpoint Admission Defense (EAD), Full duplex mode, Generic Attribute Registration Protocol (GARP), Half duplex mode, IGMP snooping, Intelligent Resilient Framework Technology (IRF), IPv6 support, Jumbo Frames support, LLDP support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Spanning Tree Plus (PVST+), Port isolation, Port Security, Quality of Service (QoS), Rapid Ring Protection Protocol (RRPP) support, Rapid Spanning Tree Protocol (RSTP) support, sFlow, STP Root Guard, Strict Priority Queuing (SPQ), Tagged VLAN, VLAN support, Weighted Round Robin (WRR) queuing
  • Rack-mountable
  • 9216 bytes
  • 16384 entries
  • Yes
  • 48
  • CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3
  • Static IPv4 routing, Static IPv6 routing
  • Stackable
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch
  • Power Device

  • AC 120/230 V
  • 45 Watt
  • Internal power supply
  • Service

  • 3 years
  • Phone consulting
  • Technical support
  • Lifetime
  • Replacement
  • Limited warranty
  • Service & Support Details

  • Next business day
  • Dimensions & Weight

  • 10.2 in
  • 1.7 in
  • 11.02 lbs
  • 17.3 in
  • Service & Support

  • Limited lifetime warranty
  • Capacity

  • IPv4 routing table entries
  • 512
  • IPv6 routing table entries
  • 256
  • Flash Memory

  • 128 MB
  • Performance

  • Routing/switching capacity
  • 176 Gbps
  • Throughput
  • 130.9 Mpps
  • Ports

  • 48
  • 10/100/1000
  • Ports (2nd)

  • 4
  • 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
  • RAM

  • 1 GB
  • SDRAM
