Main Features
- Switch
- L3
- managed
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- rack-mountable
- PoE+ (370 W)

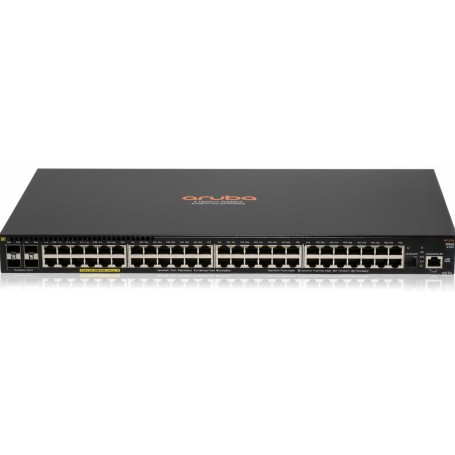

Aruba 2930F 48G PoE+ 4SFP+ Switch
High-Performance Access Layer Switches
- The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
- Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
- Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
Performance and Power at the Edge
- The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
- Virtual Switching Framework (VSF) virtualizes up to four physical switches into one logical device for simpler, flatter, more agile networks.
- Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.
Security and Quality of Service You Can Rely on
- The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplify with Integrated Wired/Wireless Management
- The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
- Cloud-based management supported by Aruba Central.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Technical Specifications | |
---|---|
Ports | (48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less |
Memory and processor | Dual Core ARM Coretex @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC |
Latency | 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs |
Throughput | up to 112 Mpps |
Switching capacity | 176 Gbps |
PoE capability | 370 W PoE+ |
Management features | Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
Input voltage | 100 - 127 / 200 - 240 VAC, rated |
Operating temperature range | 0 to 45°C |
Operating humidity range | 15 to 95% @ 104°F (40°C) (noncondensing) |
Power consumption | 459 W (maximum) |
Heat dissipation | 293.0 BTU/hr (309.1 kJ/hr) |
Product dimensions (H x W x D) | 17.42 x 11.98 x 1.73 in |
Weight | 9.83 lb |
What's in the Box
- (1) Aruba 2930F 48G PoE+ 4SFP+ Switch, (1) power cord, (1) screw kit, (4) mounting ears, (4) bumper feet, (1) cable tie
Technical Specifications
-
Capacity
- IPv4 routing table entries
- 10000
- IPv6 routing table entries
- 5000
- Jumbo frame size
- 9220
-
Chassis
- 0
- 4
-
Dimensions & Weight
- 17.4 in
- 12 in
- 1.7 in
- 9.83 lbs
-
Environmental Parameters
- 32 °F
- 113 °F
- 15 - 95% (non-condensing)
- -40 °F
- 158 °F
- 15 - 90% (non-condensing)
-
Flash Memory
- 4 GB
-
Header
- PC
- English
- United States
- Aruba
- 1
- Aruba
- 2930F 48G PoE+ 4SFP+
- Aruba
-
Interface Provided
- 1
- Serial (console)
- 4
- Gigabit / 10Gbit LAN
- SFP+
- 48
- PoE+
- 1000Base-T
- RJ-45
-
Miscellaneous
- 80 PLUS Silver, CISPR 22 Class A, CISPR 24, CNS 13438, CSA C22.2 No. 60950-1-07 Second Edition, EN 55022:2010, EN 55024:2010, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825-1:2007, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC60950-1:2005+A1:2009+A2:2013, UL 60950-1 Second Edition, VCCI Class A
- CHAP, PAP, RADIUS, TACACS, TACACS+
- 1
- MD5, SSL
- 4 bumper feet, 4 mounting ears, Cable tie, Mounting screws
- Black
-
Networking
- Switch
- Wired
- CLI, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
- IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- 48
- Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
- BGP, CIDR, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
- 32K entries
- Stackable
- Network hubs and switches
- PoE+
- Layer 3
- Yes
- Rack-mountable
- Gigabit Ethernet
- 370 W
-
Performance
- Latency (1 Gbps)
- 3.8 µs
- Latency (10 Gbps)
- 1.6 µs
- Switching capacity
- 176 Gbps
- Throughput
- 112 Mpps
-
Ports
- 48
- 10/100/1000 (PoE+)
-
Ports (2nd)
- 4
- 1 Gigabit / 10 Gigabit SFP+ (uplink)
-
Power Device
- 1
- AC 120/230 V
- Internal power supply
-
Processor
- Cortex-A9
- 1
- ARM
- 1.016 GHz
-
RAM
- 1 GB
- DDR3 SDRAM
-
Service
- Limited warranty
- Lifetime
-
Service & Support
- Limited lifetime warranty
-
Slot Provided
- Expansion slot
- 1
- 1
-
Software
- Command Line Interface (CLI), HP Intelligent Management Center, HP Web browser
