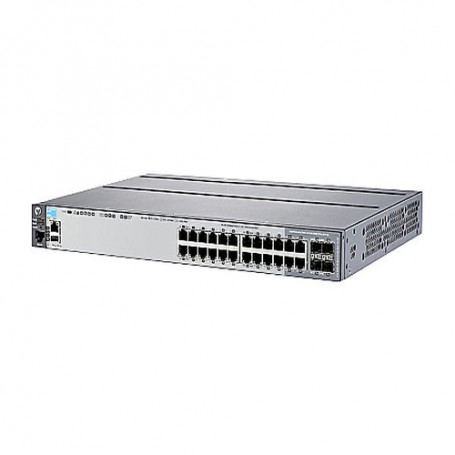

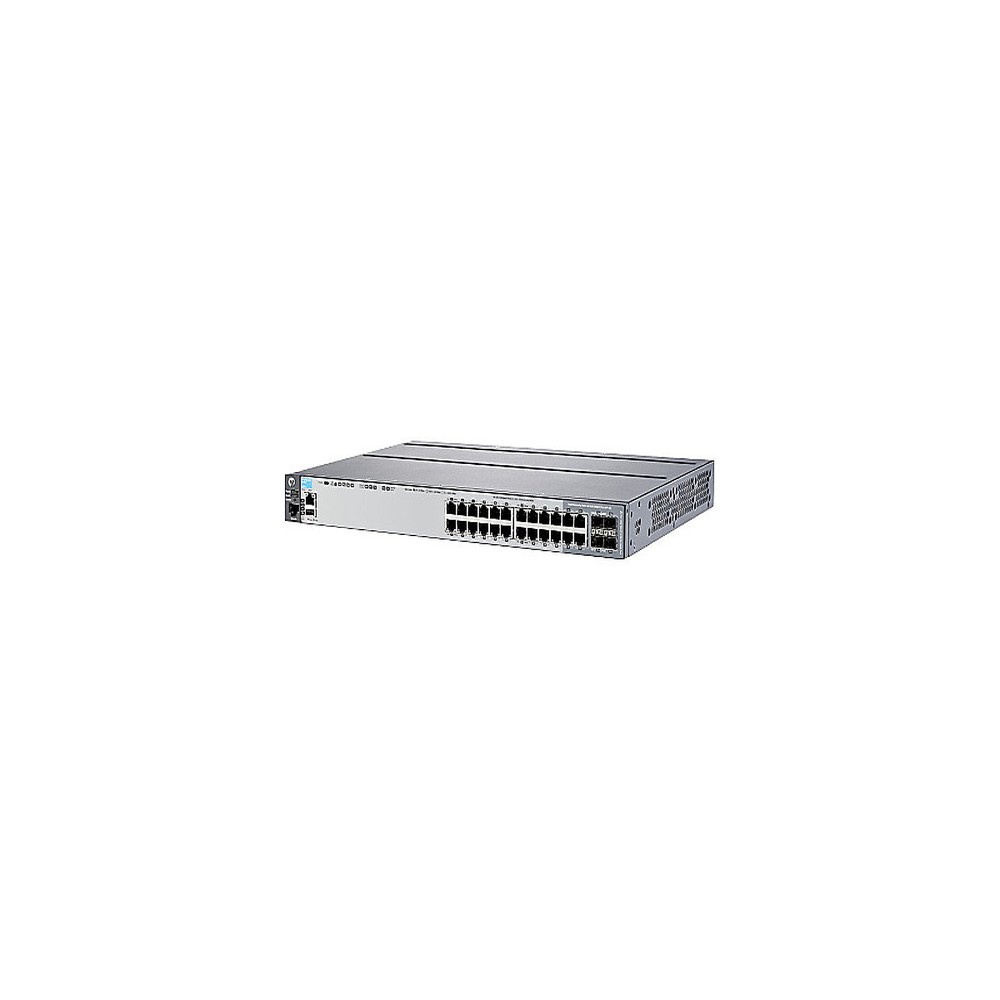

The Aruba J9726A 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB and branch office networks. A powerful ProVision ASIC delivers low latency, more packet buffering, and adaptive power consumption. This Layer 3 switch series supports modular stacking, 10GbE, PoE+, static and RIP routing, Access OSPF routing, Tunneled Node, ACLs, sFlow, and IPv6. The J9726A 2920 delivers a consistent wired/wireless user experience with advanced security and network management tools with Aruba J9726A ClearPass Policy Manager and Aruba J9726A AirWave. With support from Aruba J9726A Central, you can quickly set up remote branch sites with little or no IT support. The Aruba J9726A 2920 Switch Series provides cost-effective pay as you grow modular stacking with a 2-port stacking module, support for up to four 10GBASE-T (or SFP+) uplinks and upgradeable power supplies so your network can quickly scale when needed. The robust Layer 3 feature set requires no licensing and includes a limited lifetime warranty
FEATURES AND BENEFITS J9726A
Software-defined networks • Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting Unified Wired and Wireless • ClearPass Policy Manager support unified wired and wireless policies using Aruba J9726A ClearPass Policy Manager • Switch auto-configuration automatically configures switch for rogue AP detection, add VLAN, and set PoE priority when Aruba J9726A AP is detected • Static IP visibility lets ClearPass do accounting for clients with static IP address • Tunnel Node provides a secure tunnel that transports network traffic on a per-port basis to an Aruba J9726A Controller
KEY FEATURES J9726A
Aruba J9726A Layer 3 switch series with stacking, static & RIP routing, IPv6, ACLs, and sFlow • Advanced security and network management tools with Aruba J9726A ClearPass Policy Manager and Aruba J9726A AirWave • Modular 10GbE uplinks (SFP+ and 10GBASE-T) and upgradeable power supplies for up to 1440W PoE+ • Simple deployment with Zero Touch Provisioning and cloud-based Aruba J9726A Central support • Ready for the software-defined network with REST APIs and OpenFlow support
Technical Specifications J9726A
Main Features
Switch
managed
20 x 10/100/1000 + 4 x combo Gigabit SFP
rack-mountable
Environmental Parameters
32 °F
131 °F
15 - 95% (non-condensing)
-40 °F
158 °F
15 - 95% (non-condensing)
Header
PC
Data Center Networking Select
1
Aruba
2920-24G
Aruba
Interface Provided
Ethernet 10Base-T/100Base-TX/1000Base-T
24
RJ-45
1
Management (RS-232)
RJ-45
4
SFP (mini-GBIC)
Management (mini-USB)
Type B
Miscellaneous
C-Tick, CAN/CSA C22.2 No. 60950-1-07, CISPR 24, EN 60825-1, EN55022 Class A, EN55024, FCC Part 15 B, GOST, ICES-003 Class A, IEC 60825-1, IEC 60950-1 Second Edition, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, VCCI Class A
