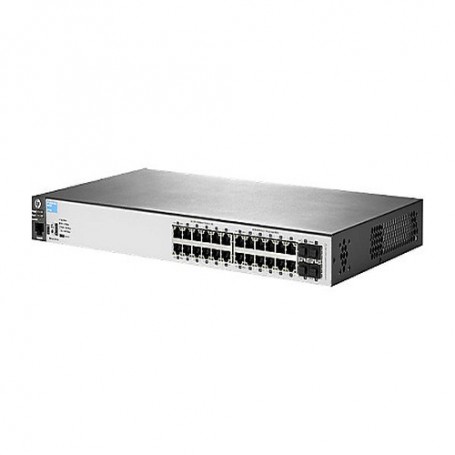

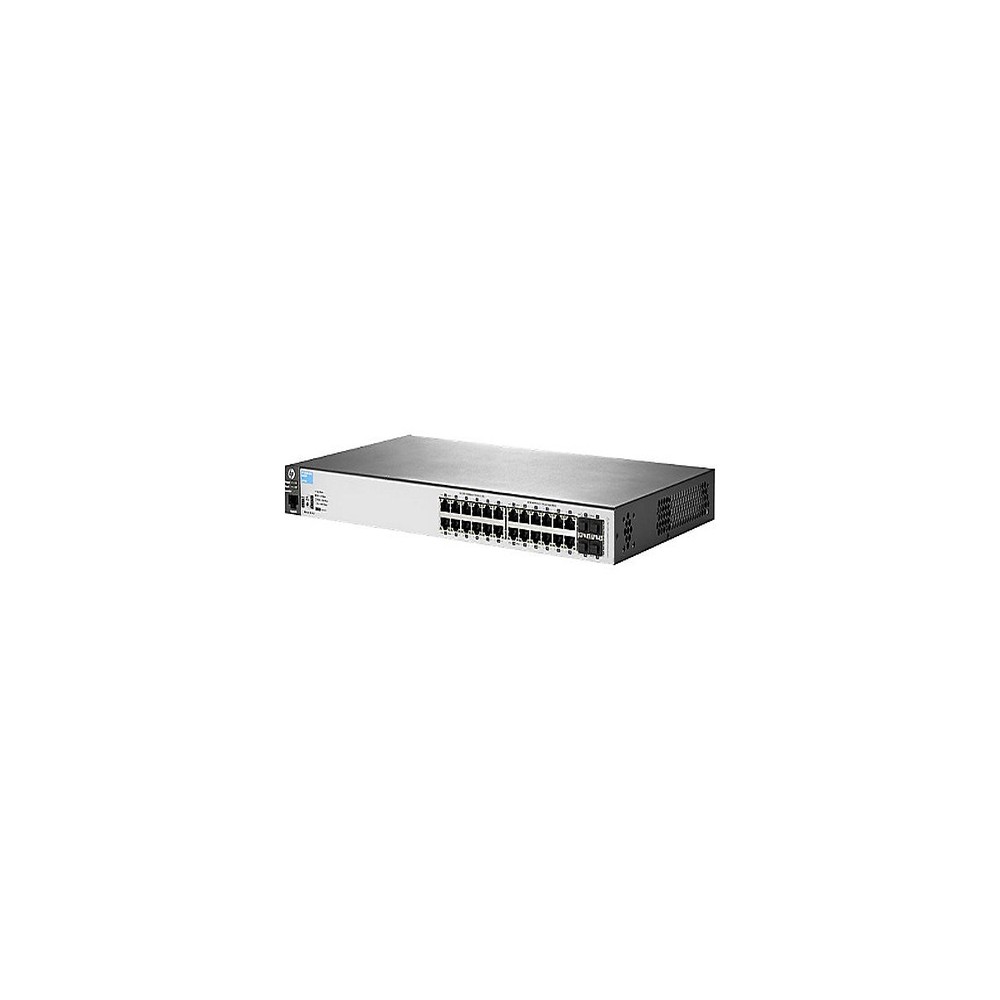

HPE J9776A Aruba 2530 24G 1U non PoE Managed Switch View larger

HPE Aruba J9776A 2530 24G 1U Non-PoE Managed Switch

New

24-port Gigabit managed access switch with 4 SFP uplinks (J9776A)

×




  • New
  • Refurbished

Detailed Specifications

HPE J9776A Aruba 2530 24G Switch

Overview

The HPE J9776A is a 1 U rack-mount managed Layer 2 switch designed for enterprise edge or branch deployments requiring full Gigabit access without Power over Ethernet. It provides 24 autosensing 10/100/1000 Mb/s RJ-45 ports alongside 4 fixed Gigabit SFP fiber uplink ports, enabling flexible connectivity options between copper access and fiber uplinks. The switch offers high performance×56 Gb/s switching capacity and up to 41.6 million packets per second forwarding×allowing for heavy access-layer traffic loads. Equipped with advanced access-layer security (ACLs, 802.1X, sFlow), IPv6 host support and Energy-Efficient Ethernet, it is suited for campus access, wiring-closets or branch-office installs. The 2530 series design supports deployment in racks, on desktops or wall-mounted, and is tailored for mobile-first environments where wired and wireless access are converged.

Key Features

  • 24×10/100/1000 Mb/s autosensing RJ-45 ports plus 4 fixed Gigabit SFP uplink ports.

  • Switching capacity of 56 Gb/s and forwarding rate up to 41.6 Mpps for 64-byte packets.

  • Advanced access-layer security: ACL support, 802.1X authentication, sFlow telemetry and IPv6 host mode.

  • Compact 1 RU form-factor, rack/desktop/wall-mountable and integrates into wired/wireless unified management.

  • Quiet fan-less operation (in many deployments) with Energy-Efficient Ethernet support to reduce power draw and noise.

Technical Specifications

SpecificationDetail
BrandHPE
Part NumberJ9776A
Product TypeAruba 2530 24G Switch
Processor InstalledARM9E @ 800 MHz
Processor Supported (Max)×
Memory Installed256 MB DDR3 SDRAM
Memory Slots×
Maximum Memory Supported×
Drive Bays×
Storage Controller×
Network Adapter24 × 10/100/1000 Mb/s RJ-45 ports + 4 fixed Gigabit SFP uplinks
Form Factor (H × W × D in inches)1.75 in × 17.44 in × 10.00 in (44.3 × 25.4 × 4.45 cm)
Weight (lbs)Approx. 6.1 lbs (2.77 kg)
Power SupplyInternal AC supply; AC input 100-127/200-240 V 50/60 Hz
Rack Units1U
