Detailed Specifications

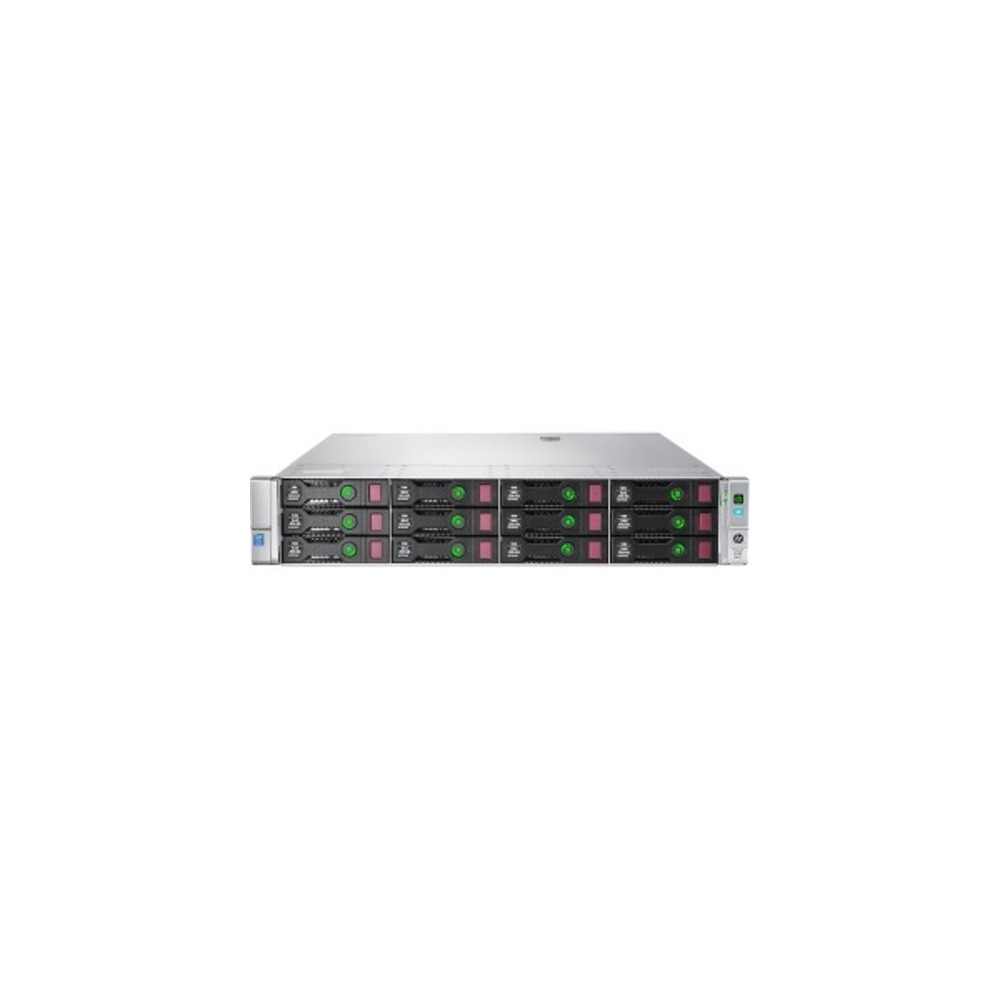

HPE ProLiant DL380 Gen9 Xeon E5-2620V3 16 GB Rack Mountable Server
The HP ProLiant DL380 Gen9 Server delivers the best performance and expandability in the HP 2P rack portfolio. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, make it ideal for any environment. Deploy the data center standard.
| Basic |
|---|
| Brand Name: |
HPE |
| Form Factor: |
Rack |
| Number of Processors Installed: |
1 |
| Number of Processors Supported: |
2 |
| Operating System: |
No |
| Processor Core: |
Hexa-core (6 Core) |
| Processor Manufacturer: |
Intel |
| Processor Model: |
E5-2620 v3 |
| Processor Speed: |
2.40 GHz |
| Processor Type: |
Xeon |
| Product Family: |
ProLiant DL380 G9 |
| Product Type: |
Server |
| Rack Height: |
2U |
| RAID Supported: |
Yes |
| Standard Memory: |
16 GB |
| Controllers |
|---|
| Controller Type: |
12Gb/s SAS |
| RAID Supported: |
Yes |
| Display & Graphics |
|---|
| Graphics Controller Manufacturer: |
Matrox |
| Graphics Controller Model: |
G200eH2 |
| Graphics Memory Capacity: |
Up to 16 MB |
| General Information |
|---|
| Brand Name: |
HPE |
| Manufacturer: |
Hewlett Packard Enterprise |
| Manufacturer Part Number: |
752688-B21 |
| Manufacturer Website Address: |
http://www.hpe.com |
| Product Line: |
ProLiant |
| Product Name: |
ProLiant DL380 Gen9 E5-2620v3 1P 16GB-R P440ar 12LFF 2x800W PS Base Server |
| Product Series: |
DL380 G9 |
| Product Type: |
Server |
| I/O Expansions |
|---|
| Number of 3.5" Bays: |
12 |
| Number of PCI Express x16 Slots: |
2 |
| Number of PCI Express x8 Slots: |
1 |
| Number of Total Expansion Slots: |
3 |
| Interfaces/Ports |
|---|
| Network (RJ-45): |
Yes |
| Number of USB 3.0 Ports: |
5 |
| Remote Management: |
Yes |
| Total Number of USB Ports: |
5 |
| Memory |
|---|
| Memory Card Reader: |
Yes |
| Memory Card Supported: |
microSD |
| Memory Standard: |
DDR4-2133/PC4-17000 |
| Memory Technology: |
DDR4 SDRAM |
| Number of Total Memory Slots: |
24 |
| Standard Memory: |
16 GB |
| Miscellaneous |
|---|
| Compatibility: |
- Microsoft Windows Server
- Canonical Ubuntu
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Solaris
- VMware
- Citrix XenServer
|
| Network & Communication |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Physical Characteristics |
|---|
| Depth: |
28.7" |
| Form Factor: |
Rack |
| Height: |
3.4" |
| Rack Height: |
2U |
| Weight (Approximate): |
32.61 lb |
| Width: |
17.5" |
| Power Description |
|---|
| Input Voltage: |
120 V AC |
|
230 V AC |
| Maximum Power Supply Wattage: |
800 W |
| Number of Power Supplies Installed: |
2 |
| Processor & Chipset |
|---|
| 64-bit Processing: |
Yes |
| Cache: |
15 MB |
| Chipset Manufacturer: |
Intel |
| Chipset Model: |
C610 |
| Hyper-Threading: |
Yes |
| Maximum Turbo Speed: |
3.20 GHz |
| Number of Processors Installed: |
1 |
| Number of Processors Supported: |
2 |
| Processor Core: |
Hexa-core (6 Core) |
| Processor Manufacturer: |
Intel |
| Processor Model: |
E5-2620 v3 |
| Processor Speed: |
2.40 GHz |
| Processor Type: |
Xeon |
| QuickPath Interconnect: |
8 GT/s |
| Software |
|---|
| Operating System: |
No |
