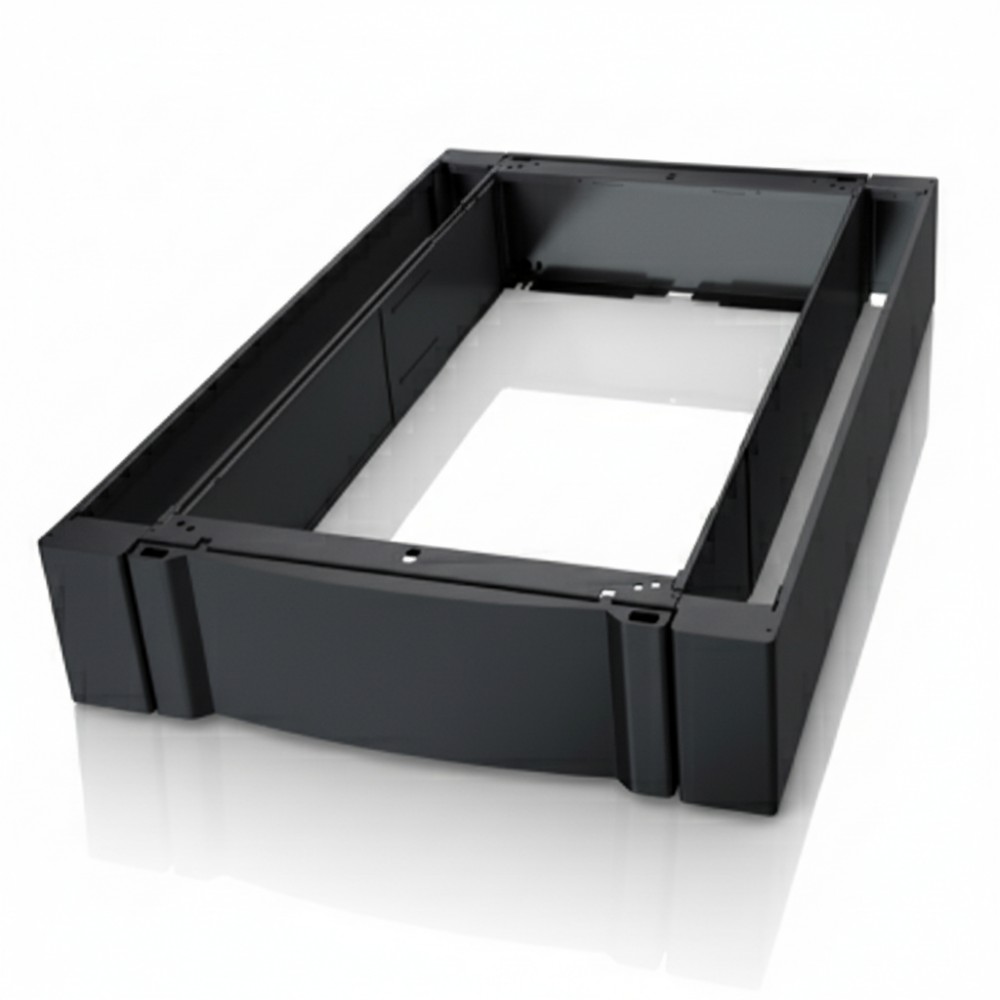

APC ACDC2516 NetShelter Aisle Containment Roof Height Adapter 1016 mm View larger

APC ACDC2516 NetShelter Aisle Containment Roof Height Adapter 1016 mm

ACDC2516

New

A 1,016 mm steel roof‑height adapter (APC ACDC2516) that upgrades
×




Detailed Specifications

APC ACDC2516 – 1,016 mm Roof‑Height Adapter (42U SX → 48U SX)

Overview

The APC ACDC2516 is a roof‑height adapter designed for NetShelter SX racks in aisle‑containment systems. It raises a 42U SX enclosure by 1,016 mm, converting it into a 48U SX rack without needing to replace the original frame. This makes it very useful when integrating with existing containment ceiling rails or ductwork designed for 48U height. By using this adapter, thermal sealing and airflow separation (hot/cold‑aisle) remain intact, while enabling modular upgrades and maintaining structural consistency across the containment row.

Key Features

  • Adds 1,016 mm to a 42U SX rack to match 48U SX‑height containment modules.

  • Made of steel for reliable structural support under containment load.

  • Black powder‑coat finish aligns with NetShelter containment frames.

  • Environmentally certified (RoHS / REACH) for safe data‑centre deployment.

  • Backed by a 5‑year limited warranty.

Technical Specifications

SpecificationDetail
Brand APC by Schneider Electric
Part Number ACDC2516
Product Type Roof‑Height Adapter / Rack Extender
Height Increase 1,016 mm
Compatible Rack 42U SX → 48U SX
Width ~1,014 mm (39.9 in)
Depth ~1,199 mm (47.2 in)
Adapter Body Height ~265 mm (10.4 in)
Weight ~34.5 kg (75.91 lb)
Material / Finish Steel, black powder‑coat
Environmental Compliance RoHS, REACH
