APC ACDC2513 NetShelter Aisle Containment Roof Height Adapter 600 mm View larger

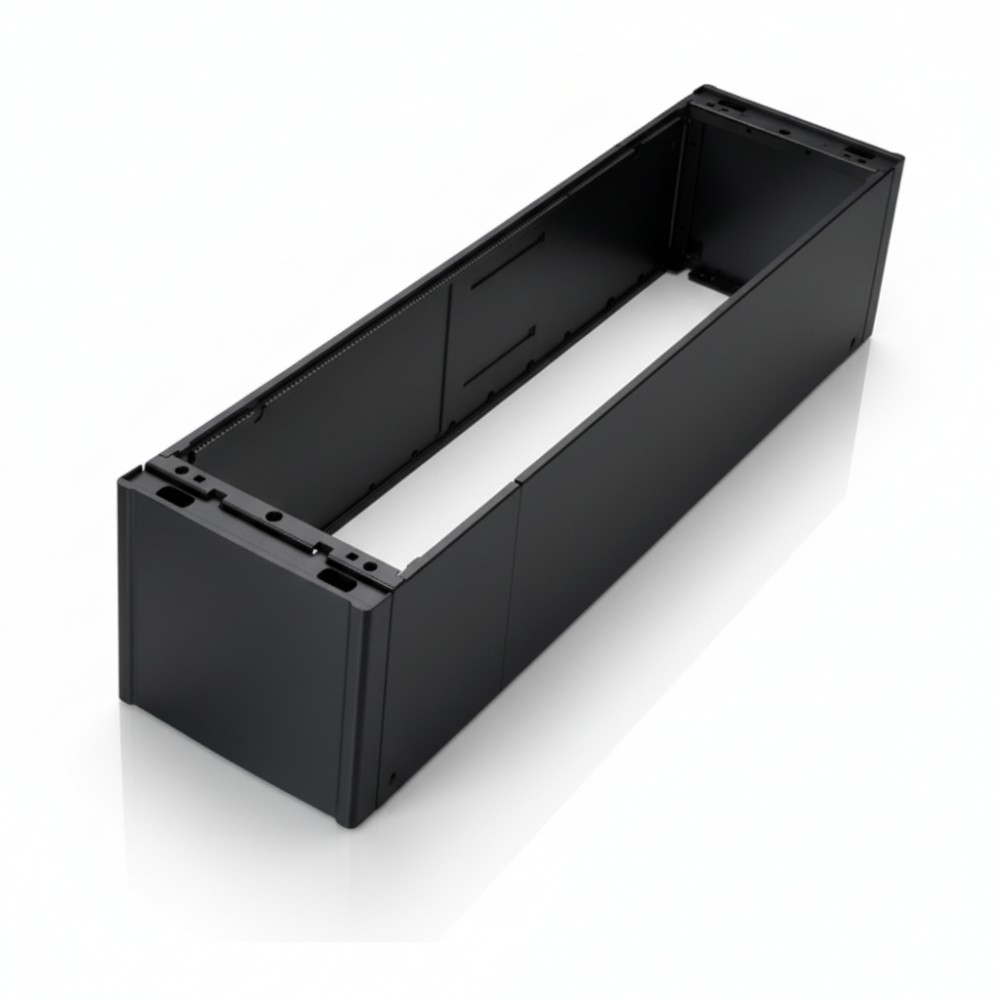

APC ACDC2513 NetShelter Aisle Containment Roof Height Adapter 600 mm

ACDC2513

New

Steel roof‑height adapter (ACDC2513) that adds 600 mm to a 42U SX rack
×




Detailed Specifications

APC ACDC2513 – 600 mm Roof‑Height Adapter (42U SX → 48U SX)

Overview

The APC ACDC2513 is a structural adapter designed for use in the NetShelter aisle‑containment system deployed in data‑centres and network rooms. When your existing 42U SX rack needs to match a containment ceiling height or duct run built for 48U SX racks, this adapter adds a vertical extension of approximately 600 mm (≈ 23.6 in). By doing so it enables the rack to align perfectly with the overhead containment rails, duct work or ceiling panels — thus maintaining the thermal barrier between cold aisle and hot aisle. This ensures consistent airflow separation and preserves containment integrity without replacing the rack itself.

Key Features

  • Adds 600 mm of vertical height to a 42U SX rack, converting it to 48U SX profile.

  • Heavy‑duty steel construction supports overhead containment loads reliably.

  • Black powder‑coat finish matches NetShelter enclosures and containment accessories.

  • Designed to integrate seamlessly with the Eco‑Aisle / NetShelter containment framework.

  • RoHS and REACH compliant environment‑certified build.

  • Enables retrofit upgrades of containment systems without replacing racks.

Technical Specifications

SpecificationDetail
Brand APC by Schneider Electric
Part Number ACDC2513
Product Type Roof­‑Height Adapter / Rack Extension
Height Increase 600 mm (≈ 23.6 in)
Compatible Rack 42U SX (to convert to 48U SX)
Width ~596 mm (≈ 23.46 in)
Depth / Length ~1069 mm (≈ 42.09 in)
Adapter Body Height ~265 mm (≈ 10.43 in)
Net Weight ~17 kg (≈ 37.5 lb)
Material / Finish Steel, black powder‑coat
Environmental Compliance RoHS, REACH
Use Case Aligning rack height to match taller containment ceiling / duct runs
Warranty Standard APC containment accessory warranty
