Detailed Specifications

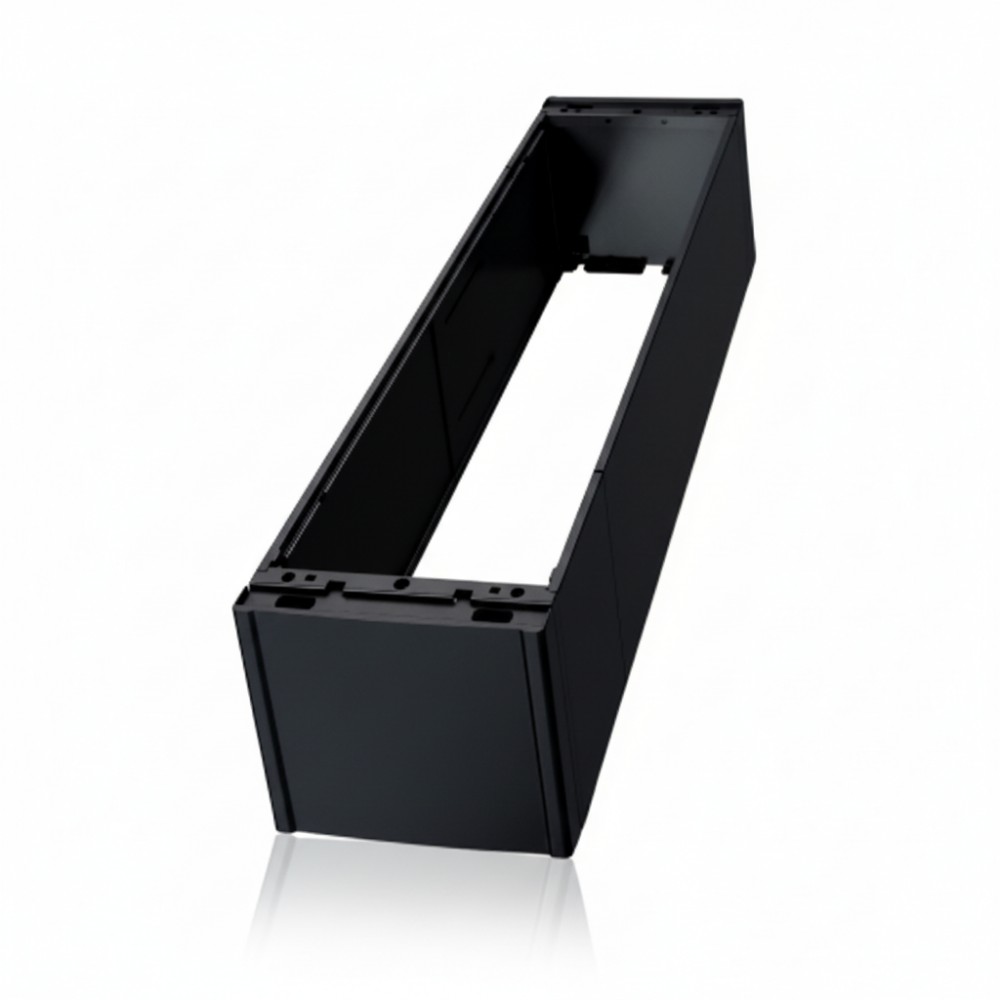

APC ACDC2512 - 300 mm Roof-Height Adapter (42U SX → 48U SX)
Overview
The APC ACDC2512 is a roof-height adapter designed for NetShelter aisle-containment systems. It adds 300 mm (approx. 1 ft) of vertical height to a 42-unit high NetShelter SX rack, effectively turning it into a 48U SX rack for containment ceiling alignment. This is particularly useful when the overhead containment ceiling or ductwork is designed for 48U racks × instead of replacing the existing 42U enclosure, you can mount the adapter to match the ceiling height. This helps maintain a continuous thermal seal across the row without compromising the structural integrity of the containment system.
Key Features
Converts a 42U SX rack to 48U SX height by adding 300 mm.
Built from robust steel, supporting containment ceiling load reliably.
Finished in black powder-coat to match NetShelter containment aesthetics.
Environmentally compliant: RoHS and REACH certified.
Backed by a 5-year limited warranty, consistent with APC containment accessory policy.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2512 |
| Product Type | Roof-Height Adapter / Rack Extension |
| Height Gain | 300 mm |
| Compatible Rack | 42U SX → 48U SX |
| Width | ~296 mm |
| Depth | ~1069 mm |
| Height (Adapter Body) | ~265 mm |
| Weight | ~15.8 kg |
| Material / Finish | Steel, black powder-coat |
| Compliance | RoHS, REAC |
