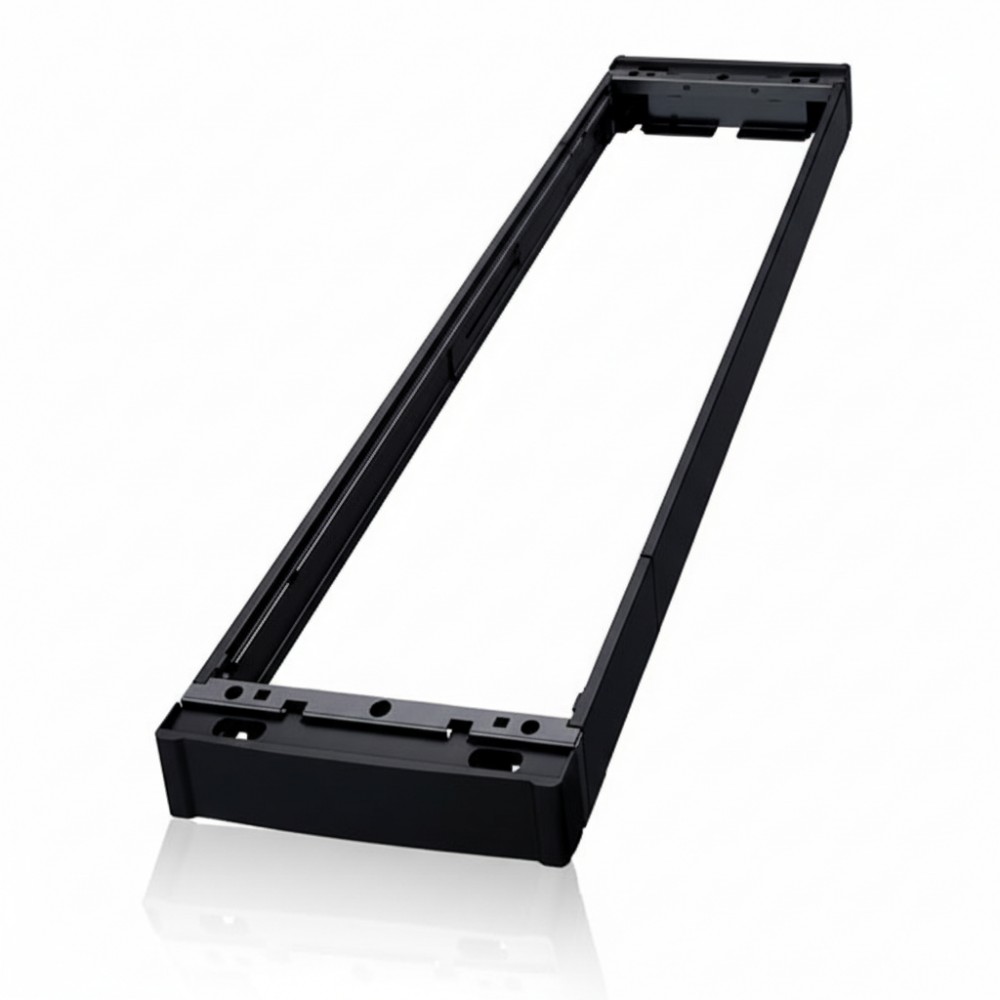

APC ACDC2506 NetShelter Aisle Containment Roof Height Adapter 600 mm View larger

APC ACDC2506 NetShelter Aisle Containment Roof Height Adapter 600 mm

ACDC2506

New

Steel roof‑height adapter (ACDC2506) that adds 600 mm to a NetShelter
×




Detailed Specifications

APC ACDC2506 – 600 mm Roof‑Height Adapter (42U SX → 45U SX)

Overview

The APC ACDC2506 is a roof‑height adapter designed for NetShelter SX enclosures. It adds 600 mm of vertical clearance to a 42U SX rack, effectively allowing it to match the height of a 45U SX profile without changing the rack itself. This makes it ideal for containment systems or retrofits where the existing overhead ductwork or containment ceiling is designed for taller enclosures. By using this adapter, infrastructure teams can maintain a consistent thermal seal, reduce the risk of hot-aisle and cold-aisle bypass, and avoid costly rack replacements.

Key Features

  • Extends 42U SX racks by 600 mm to line up with 45U SX frames.

  • Made of steel for durable, load-bearing support.

  • Black powder-coat finish matches other NetShelter components.

  • Certifications: RoHS and REACH, ensuring compliance with environmental and safety standards.

  • 5‑year limited warranty for long-term assurance.

Technical Specifications

SpecificationDetail
Brand APC by Schneider Electric
Part Number ACDC2506
Product Type Roof‑Height Adapter / Rack Extension
Height Increase 600 mm
Compatible Rack 42U SX → 45U SX
Width 596 mm
Depth 1,069 mm (approx)
Height (Adapter Body) 132 mm
Weight 10.2 kg
Material / Finish Steel, black powder coat
Environmental Compliance RoHS, REACH
Warranty 5 Years (limited)
