Detailed Specifications

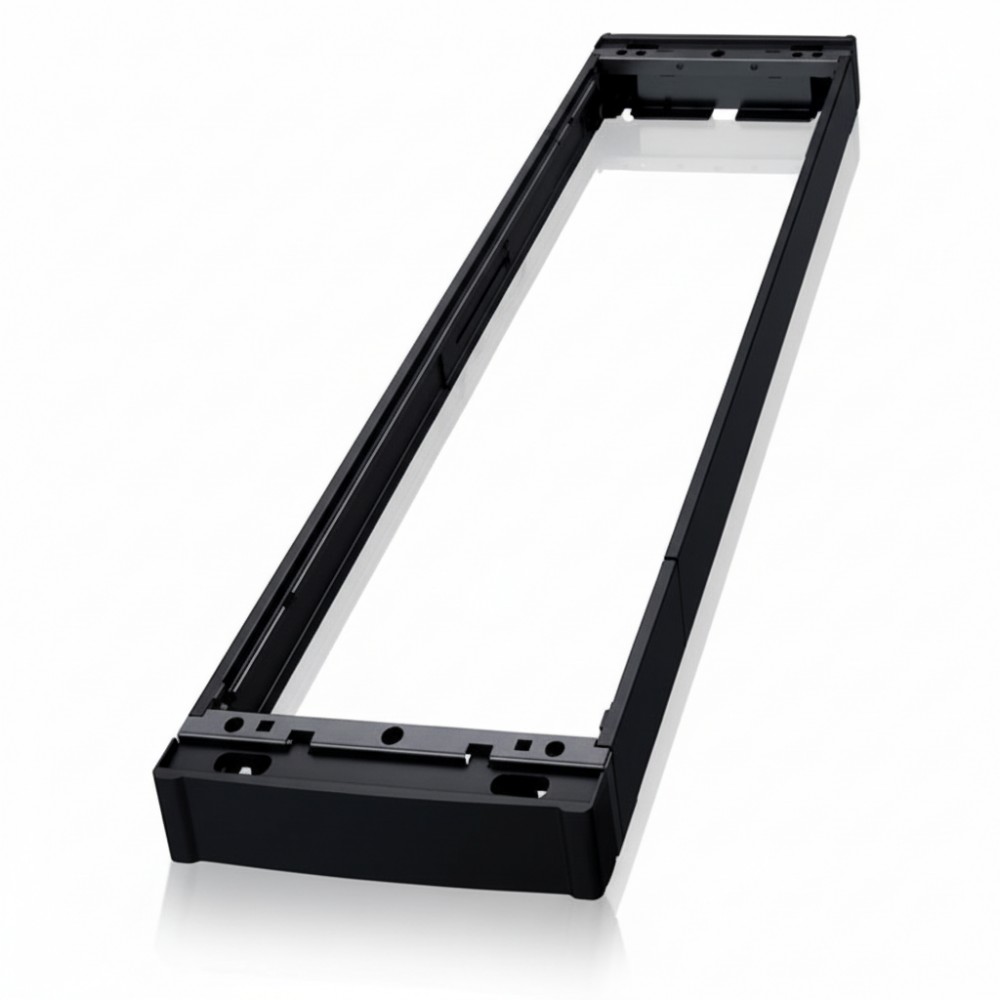

APC ACDC2505 - 300 mm Roof-Height Adapter (42U SX → 45U SX)
Overview
The APC ACDC2505 is a roof-height adapter module designed for the NetShelter containment ecosystem. It allows a 42-unit high SX rack to be extended by approximately 300 mm, effectively aligning that rack with a 45U SX profile. Engineers often use this when retrofitting existing row containment infrastructure×where the ceiling rails or ductwork expect the taller height×without replacing the whole rack. By using this adapter, you maintain consistent containment geometry across the row, preserve airflow sealing integrity, and reduce thermal bypass between hot and cold aisles.
Key Features
Provides a 300 mm height extension to upgrade 42U SX racks to 45U SX height.
Robust steel construction ensures structural integrity when supporting containment rails/ducts above.
Black powder-coat finish matches NetShelter aesthetics and ensures a uniform look.
RoHS and REACH compliant for environmental and regulatory alignment.
Ideal for retrofit conversions, enabling mixed-height racks to integrate into existing containment systems.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2505 |
| Product Type | Roof-Height Adapter / Rack Extension |
| Height Increase | 300 mm |
| Compatible Rack | 42U SX → 45U SX conversion |
| Width | ~11.7 in (≈ 296 mm) |
| Depth | ~42.1 in (≈ 1069 mm) |
| Net Weight | ~10.5 kg (≈ 23.1 lb) |
| Material / Finish | Steel, black powder-coat |
| Environmental Compliance | RoHS, REACH |
| Use Case | Aligning containment ceiling or ductwork in retrofit racks |
| Warranty | 5-Year limited (manufacturer policy) |
