Detailed Specifications

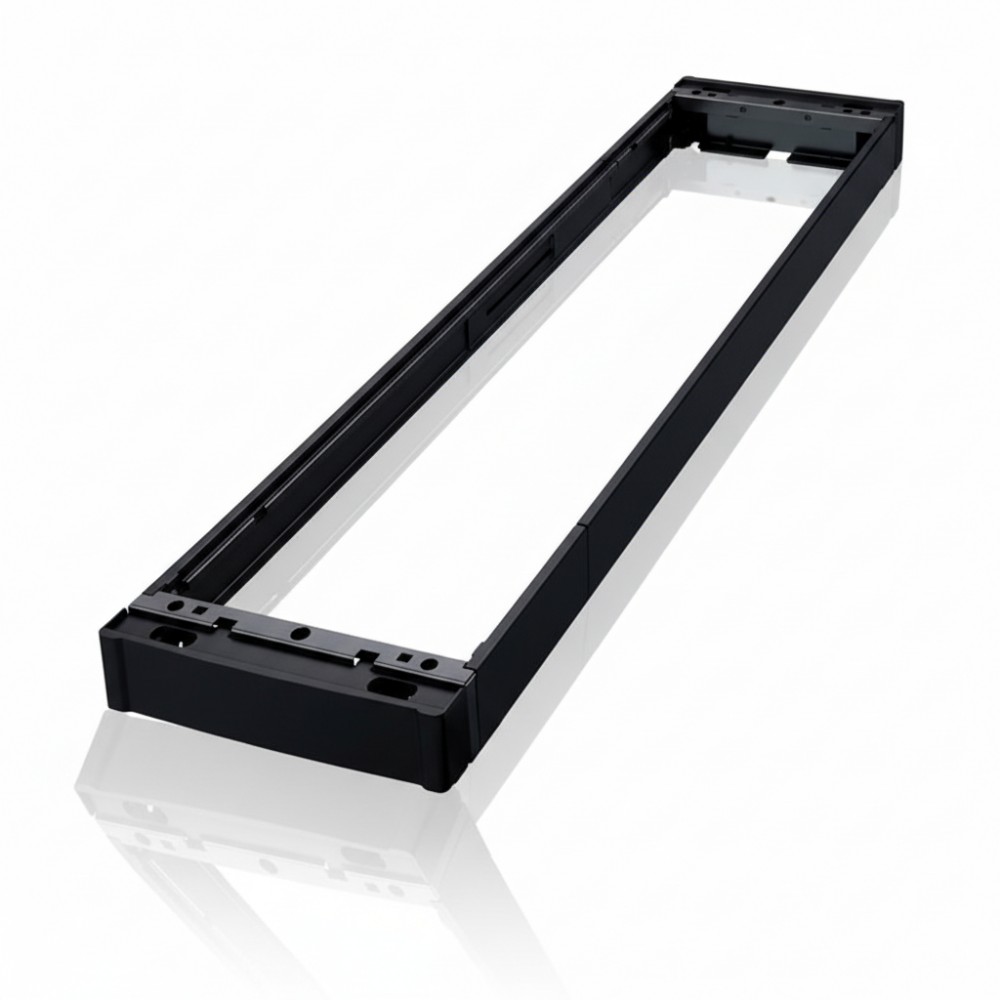

APC ACDC2503 - 750 mm Roof-Height Adapter (42U SX → 42U VX)
Overview
The APC ACDC2503 is a height-adapter module for NetShelter aisle-containment systems. It provides a 750 mm extension that lets you convert a 42U SX enclosure to match the taller 42U VX containment ceiling or duct structure. This is particularly useful for retrofit scenarios where existing SX racks must align with a containment layout designed for VX-height rails or ductwork. By using this adapter, you preserve thermal continuity and maintain proper air-separation without needing to replace the rack.
Key Features
Adds 750 mm of vertical clearance to 42U SX racks.
Converts SX-height racks to VX profile, ensuring compatibility with taller containment systems.
Robust steel construction supports the weight of containment infrastructure.
Finished in black to match NetShelter racks and containment accessories.
Complies with RoHS and REACH environmental standards.
Covered by a 5-year limited warranty under APC's containment accessory policy.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2503 |
| Product Type | Roof-Height Adapter / Rack Extender |
| Height Increase | 750 mm (≈ 29.5 in) |
| Compatible Rack | 42U SX (for conversion to VX height) |
| Width | 746 mm |
| Depth | ~1069 mm (42.1 in) |
| Adapter Body Height | ~75 mm |
| Weight | ~8.48 kg (18.7 lb) |
| Material / Finish | Steel, black powder-coat |
| Environmental Compliance | RoHS, REACH |
| Warranty | 5-Year Limited |
