Detailed Specifications

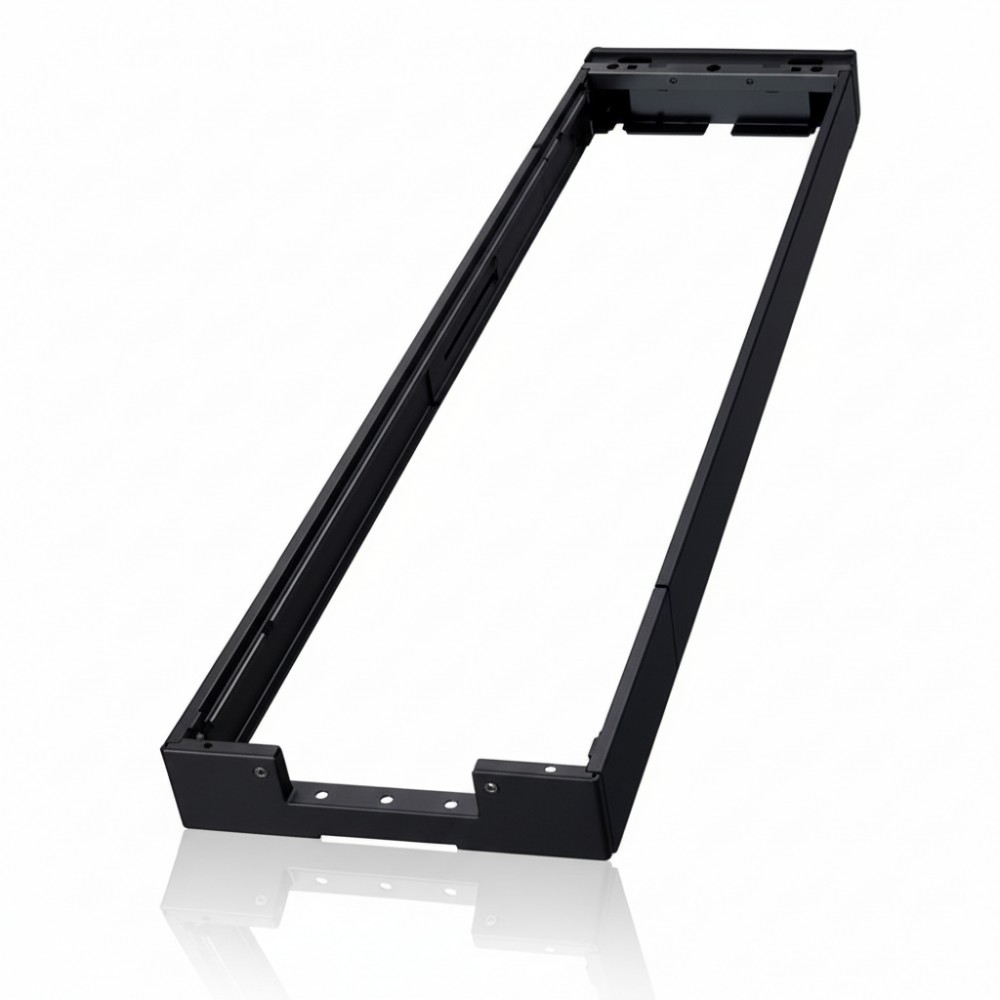

APC ACDC2502 - 700 mm Roof Height Adapter (42U SX → 42U VX)
Overview
The APC ACDC2502 is a vertical roof-height adapter used in NetShelter aisle-containment systems. It adds 700 mm of height on top of a 42U SX rack, converting it to match a 42U VX-height containment ceiling or duct framework. This is useful in retrofit or mixed-height deployments where the containment infrastructure is designed around taller frames. Engineers choose this adapter to maintain a continuous thermal barrier and align rails/ducts without having to replace the existing rack frame.
Key Features
Extends rack height by 700 mm (approx) to align with VX-level ceiling systems.
Compatible with 42U SX racks to convert them to VX height for containment.
Sturdy steel construction ensures structural support under the containment load.
Powder-coat black finish matches NetShelter containment aesthetics.
Certified for RoHS and REACH compliance.
Designed for modular containment systems, ma
Roof Height Adapter
intaining thermal integrity.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2502 |
| Product Type | Roof-Height Adapter / Rack Extension |
| Height Increase | 700 mm (approx) |
| Compatible Rack | 42U SX (to align with VX-height containment |
| Width | ~697 mm (27.44 in) |
| Depth | ~1069 mm (42.09 in) |
| Height (Adapter Body) | ~75 mm (2.95 in) |
| Weight | ~8.28 kg (18.25 lb) |
| Material / Finish | Steel, black powder coat |
| Environmental Compliance | RoHS, REACH |
| Use Case | For aligning containment ceiling or ductwork in mixed-height rack rows |
