Detailed Specifications

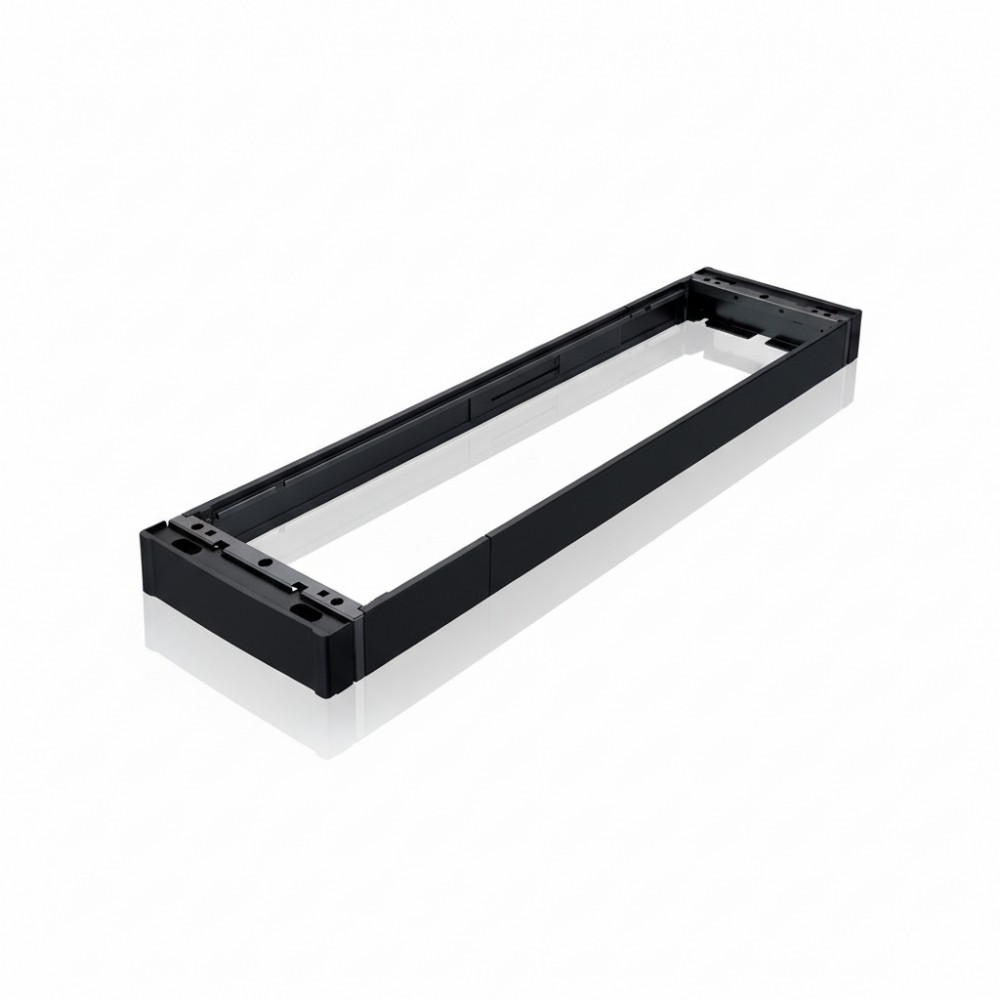

APC ACDC2500 - 300 mm Roof Height Adapter (42U SX → VX)
Overview
The APC ACDC2500 is a roof-height adapter used in NetShelter aisle-containment systems to add vertical clearance above 42U SX racks. Engineers install it when the containment ceiling (or ductwork) is higher than the top of the SX rack, but they want to maintain the same aisle-containment architecture. By increasing the frame height by 300 mm, this adapter ensures thermal containment stays sealed without forcing a rack swap. It's particularly useful in retrofit deployments where ceiling infrastructure or airflow components were designed for a taller rack profile.
Key Features
Adds 300 mm (12 in) height to 42U SX racks to match VX-frame containment ceilings.
Welded steel construction ensures structural strength and longevity.
Black finish aligns visually with standard NetShelter components.
RoHS-compliant for environmentally responsible deployment.
Compatible with NetShelter containment (Eco-Aisle) systems per APC's containment manual
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2500 |
| Product Type | Roof Height Adapter / Rack Extension |
| Height Increase | 300 mm (12 in) |
| Compatible Rack | 42U SX → VX conversion |
| Width | 11.7 in (≈ 297 mm) |
| Depth | 42.1 in (≈ 1,070 mm) |
| Weight | ~16.78 lb (≈ 7.61 kg) |
| Material / Finish | Steel, black powder-coat |
| Environmental Compliance | RoHS |
