Detailed Specifications

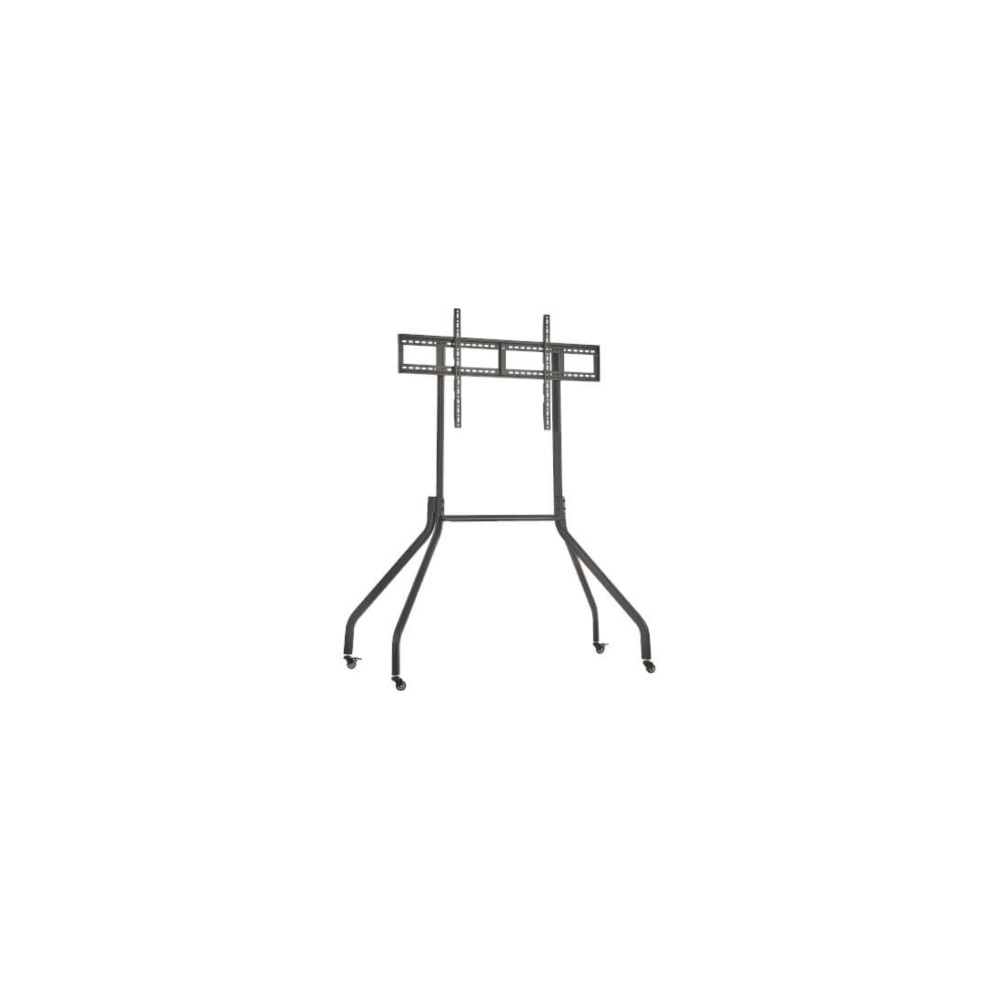

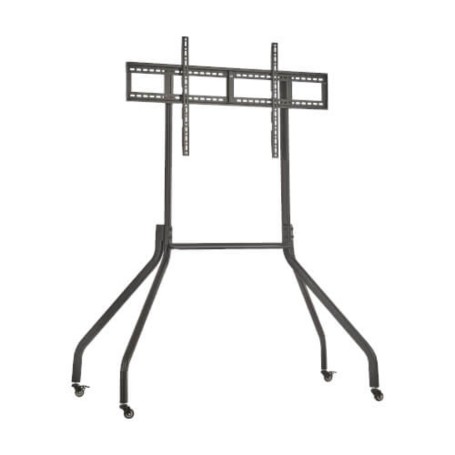

Eaton DMCS5585WL Extra-Sturdy Rolling TV Cart
Overview :
The Eaton DMCS5585WL is an extra-sturdy rolling TV cart from the Tripp Lite series. IT asset deployment groups, corporate trainers, and educational facilities procurement teams utilize this heavy-duty mobile stand to share digital infrastructure across multi-use environments. By mounting large-format interactive panels to a high-stability mobile base, it resolves the structural and logistical constraints of permanent wall mounting in open-plan offices, classrooms, and modern waiting zones.
The cart is engineered to support flat-panel televisions, touchscreen monitors, and digital whiteboards ranging from 55 to 85 inches in size, with a maximum load capacity rating of 198 pounds. It features an integrated, all-metal display bracket that mounts screens exclusively in a stable landscape orientation. To provide optimized sightlines for diverse presentation layouts, the framework supports structural elevation adjustments, allowing the display center to be positioned from 71.3 to 81.5 inches above the floor level.
Constructed from a premium hybrid blend of heavy-duty steel and lightweight aluminum, the frame features an extra-wide leg base designed to maximize center-of-gravity stability while in motion or at rest. The entire assembly rolls on four heavy-duty three-inch industrial swivel casters that navigate over carpeting thresholds and hard floors. Each caster is equipped with an independent foot-activated locking brake to instantly secure the cart in position during active presentation sessions.
The DMCS5585WL features an extensive VESA-compliant mounting plate that interfaces cleanly with hole configurations from 100x100 mm up to 1000x600 mm for comprehensive screen matching. The open structural design allows easy back-panel access for cabling and system maintenance routines. This mobile stand must not be utilized for display modules smaller than 55 inches, equipment loads exceeding the 198-pound threshold, or in configurations requiring a vertical portrait screen layout.
Key Features :
Extra-wide leg architecture maximizes tracking stability during movement
High-capacity metal framework supports heavy displays up to 198 pounds
Height-adjustable plate matches the display to the audience's sightline
Three-inch industrial swivel wheels offer effortless room-to-room transit
Independent caster locks firmly secure the station during presentations
Specifications :
| |
| Brand | Eaton |
| Part Number | DMCS5585WL |
| Product Type | Rolling TV Cart |
| Core Structure Material | Premium Aluminum and Heavy-Duty Steel |
| Chassis Color | Black |
| Supported Screen Sizes | 55 to 85 Inches (139.7 to 215.9 cm) |
| Maximum Weight Capacity | 198 lbs (90 kg) |
| Mounting Orientation | Landscape Mode Only |
| Vertical Height Range | 71.3 to 81.5 inches (181.1 to 207 cm) |
| VESA Mount Standards | 100x100 to 1000x600 mm (Includes 400x400 & 600x400) |
| Mobility Hardware | (4) 3-inch Swivel Casters with Locking Foot Brakes |
| Supported Display Count | 1 Flat Panel |
| Environmental Compliance | RoHS |
| Manufacturer Warranty | 5-Year Limited Warranty |
