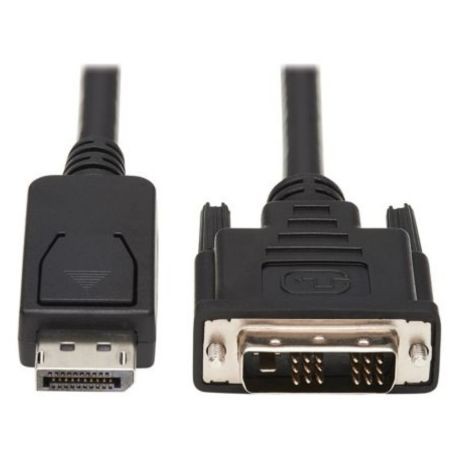

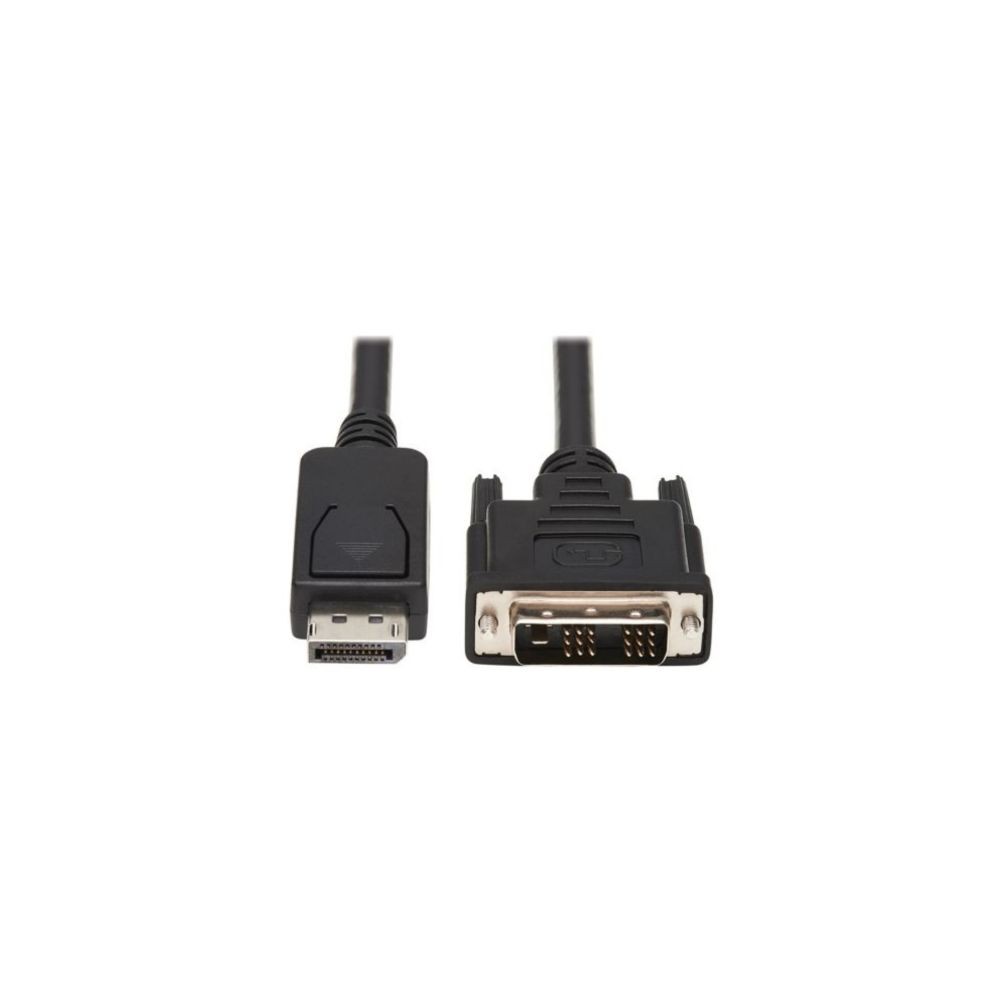

Eaton P581-006 Tripp Lite DisplayPort to DVI-D Single Link Cable 6 ft M M
The Eaton P581-006 Tripp Lite DisplayPort to DVI-D Single Link Cable connects a computer or workstation with a DisplayPort output to a compatible DVI-D monitor, HDTV, or other digital display. This passive 6 ft (1.83 m) cable carries digital video signals without requiring separate software or an external power supply.
The cable supports computer video resolutions up to 1920 x 1200 and HD video up to 1920 x 1080 (1080p). Its latching DisplayPort connector helps maintain a secure connection, while molded ends and a durable PVC jacket support routine installation in desktop, office, classroom, and conference-room environments.
Key Features
- Connects a DisplayPort computer to a DVI-D Single Link display
- Passive 6 ft (1.83 m) cable with DisplayPort male and DVI-D male connectors
- Supports resolutions up to 1920 x 1200 and 1080p HD video
- Latching or gripping DisplayPort connector helps prevent accidental disconnection
- Molded cable ends and black PVC VW-1 jacket
DisplayPort to DVI-D Compatibility
The P581-006 is designed for one-way connection from a DisplayPort source to a DVI-D Single Link display. It is suitable for compatible computers, graphics cards, monitors, HDTVs, and presentation displays that use DVI-D input.
Because this is a passive cable, the connected computer must provide a DP++ or DisplayPort Dual-Mode output. The cable is not intended for connecting a DVI video source to a DisplayPort monitor.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P581-006 |
| Product Type | DisplayPort to DVI-D Adapter Cable |
| Cable Type | Passive |
| Cable Length | 6 ft (1.83 m) |
| Connector A | DisplayPort Male |
| Connector B | DVI-D Single Link Male |
| DisplayPort Specification | DisplayPort 1.2 |
| Maximum Computer Resolution | 1920 x 1200 at 60 Hz |
| Maximum HD Resolution | 1920 x 1080 (1080p) |
| Signal Type | Digital Video |
| DisplayPort Requirement | DP++ Dual-Mode Output |
| Connector Feature | Latching or Gripping DisplayPort Connector |
| Contact Plating | Gold |
| Connector Plating | Nickel |
| Cable Jacket | Black PVC, VW-1 |
| Operating Temperature | 32°F to 158°F (0°C to 70°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Operating Humidity | 10% to 85% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Color | Black |
| UPC | 037332148032 |
| Warranty | 3-Year Limited |
Compatible Applications
- DisplayPort computers connected to DVI-D monitors
- Workstations and graphics cards with DP++ output
- Digital signage and presentation systems
- Classroom and conference-room displays
- HDTVs and monitors with DVI-D Single Link input
Package Contents
1 x Eaton Tripp Lite P581-006 DisplayPort to DVI-D Single Link Cable, 6 ft (1.83 m).
Frequently Asked Questions
What does the Eaton P581-006 connect?
It connects a DisplayPort male output on a computer or workstation to a DVI-D Single Link male input on a monitor, HDTV, or compatible display.
What resolution does the P581-006 support?
The cable supports computer resolutions up to 1920 x 1200 and HD video up to 1920 x 1080, also known as 1080p.
Is the P581-006 an active or passive cable?
The P581-006 is a passive cable. The connected computer must provide a DP++ or DisplayPort Dual-Mode output.
Can the P581-006 be used in reverse?
No. It is designed for DisplayPort-source-to-DVI-D-display connections and should not be used to connect a DVI video source to a DisplayPort monitor.
Does the cable carry digital video?
Yes. The P581-006 passes digital video from the DisplayPort source to the DVI-D Single Link display.
Does the P581-006 include an active converter or power supply?
No. It is a passive cable and does not require an external power supply or separate active conversion box.
