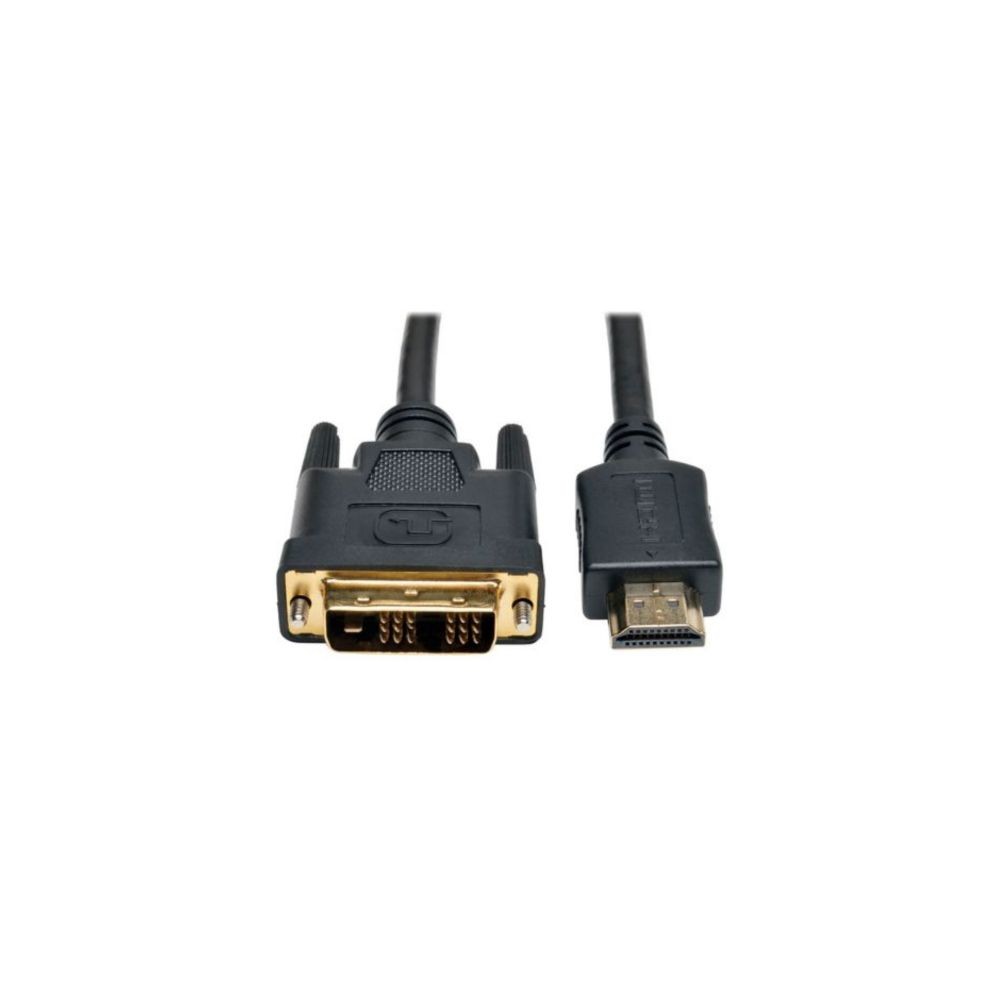

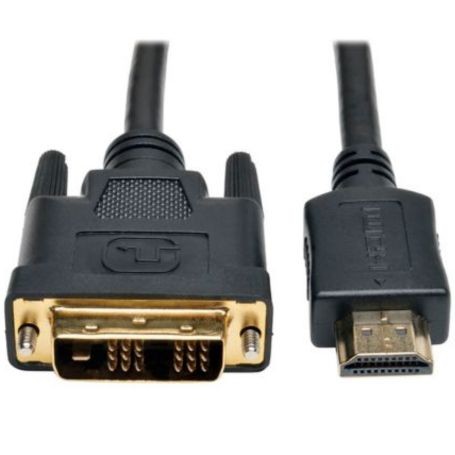

Eaton P566-020 Tripp Lite HDMI to DVI D Cable 20 ft M M
The Eaton P566-020 is a 20 ft HDMI-to-DVI-D Single Link digital video cable for connecting compatible HDMI and DVI-equipped display and source devices. It provides a passive, bidirectional digital video connection between the two interfaces.
The cable supports high-definition video resolutions up to 1920 x 1080 at 60 Hz and bandwidths up to 5 Gbps. Its double-shielded construction is designed to help protect the digital video connection from EMI/RFI noise, while gold-plated connectors and contacts provide a corrosion-resistant connection interface.
HDMI to DVI-D Digital Video Connection
P566-020 can connect an HDMI-equipped source to a DVI-equipped display or a DVI-equipped source to an HDMI-equipped display. The connection carries digital video only; DVI does not provide the HDMI audio channel through this cable.
20 ft Cable for Extended Device Placement
The 20 ft (6.09 m) length provides additional reach for installations where the source and display are positioned farther apart. The cable uses impedance-matched twisted-pair construction to help reduce crosstalk and interference.
Key Features
- 20 ft (6.09 m) HDMI-to-DVI-D Single Link cable
- HDMI male to DVI-D male connectors
- Supports resolutions up to 1920 x 1080 at 60 Hz
- Supports bandwidths up to 5 Gbps
- Double-shielded construction with gold-plated connectors and contacts
DC Supplies Product Note
Because the P566-020 is a direct HDMI-to-DVI-D cable, it is suited to installations where the connected source and display already provide compatible HDMI and DVI digital interfaces without requiring a separate video adapter.
Applications
- HDMI source to DVI monitor connections
- DVI source to HDMI display connections
- Computer and monitor installations
- Digital signage and presentation systems
- Projectors and compatible display equipment
- Home theater and A/V equipment
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P566-020 |
| Product Type | HDMI to DVI-D Digital Video Cable |
| Cable Length | 20 ft (6.09 m) |
| Connector 1 | HDMI Male |
| Connector 2 | DVI-D Single Link Male |
| Signal Type | Digital Video |
| Transmission | Passive, bidirectional |
| Maximum Resolution | 1920 x 1080 @ 60 Hz |
| Bandwidth | Up to 5 Gbps |
| Cable Type | Round |
| Shielding | Double-shielded |
| Construction | Impedance-matched twisted pair |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Audio Support | No; digital video only |
| UPC | 037332186010 |
| Warranty | Lifetime Limited Warranty |
Frequently Asked Questions
What connectors does the P566-020 have?
It has one HDMI male connector and one DVI-D Single Link male connector.
How long is the P566-020 cable?
The cable is 20 ft (6.09 m) long.
What resolution does the P566-020 support?
It supports high-definition video resolutions up to 1920 x 1080 at 60 Hz.
Is the P566-020 bidirectional?
Yes. It provides a bidirectional digital video connection between compatible HDMI and DVI-equipped devices.
Does the HDMI-to-DVI cable carry audio?
No. The manufacturer specifies that the DVI-HDMI cable supports digital video only.
Is the cable shielded?
Yes. The cable uses premium double shielding designed to protect against EMI/RFI noise.
