Detailed Specifications

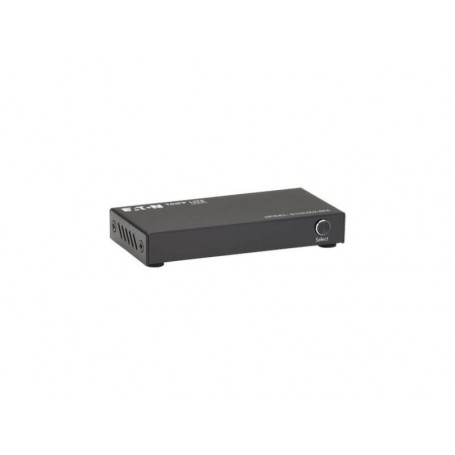

Eaton B119-002-8K6 2-Port 8K HDMI Switch with Remote Control Compatible Tripp Lite
Overview :
The Eaton B119-002-8K6 is a Tripp Lite Series 2-Port HDMI Switch with Remote Control designed to connect two HDMI source devices to a single HDMI display. It supports switching between sources for 8K televisions, monitors and projectors.
The switch supports 8K resolution at 60 Hz with 4:4:4 chroma, along with 4K at 120 Hz and 1080p at 240 Hz. It supports HDR10+, Dolby Vision, HDCP 2.3, 36-bit Deep Color, DTS-HD, Dolby TrueHD and 7.1-channel surround sound.
The B119-002-8K6 provides three switching methods: manual push-button switching, included remote-control switching and automatic port switching. It uses plug-and-play operation without requiring software installation.
Key Features :
- 2 HDMI inputs and 1 HDMI output
- Supports up to 8K × 4320 at 60 Hz
- Supports 4K at 120 Hz and 1080p at 240 Hz
- Supports 4:4:4 chroma subsampling
- HDR10+ and Dolby Vision support
- HDCP 2.3 compliant
- 36-bit Deep Color
- DTS-HD, Dolby TrueHD and 7.1-channel audio support
- Manual, remote and automatic source switching
- Plug-and-play operation
- Rugged metal enclosure
- Includes USB-C to USB-A power cable
- Designed for displays, projectors and TVs
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton Corporation |
| Brand / Series | Tripp Lite Series |
| Part Number | B119-002-8K6 |
| Product Type | HDMI Audio/Video Switch |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Displays Supported | 1 |
| Maximum Resolution | 7680 × 4320 |
| Maximum Video Mode | 8K @ 60 Hz |
| 4K Support | Up to 4K @ 120 Hz |
| 1080p Support | Up to 1080p @ 240 Hz |
| Chroma Subsampling | 4:4:4 |
| HDR | HDR10+, Dolby Vision |
| HDCP | HDCP 2.3 |
| Color Depth | 36-bit Deep Color |
| Audio | DTS-HD, Dolby TrueHD, 7.1-channel surround |
| Switching | Manual / Remote / Automatic |
| USB Ports | 1 |
| Power Connection | USB-C |
| Remote Control | Included |
| Enclosure | Metal |
| Installation | Desktop |
| Compliance | RoHS, WEEE |
