Detailed Specifications

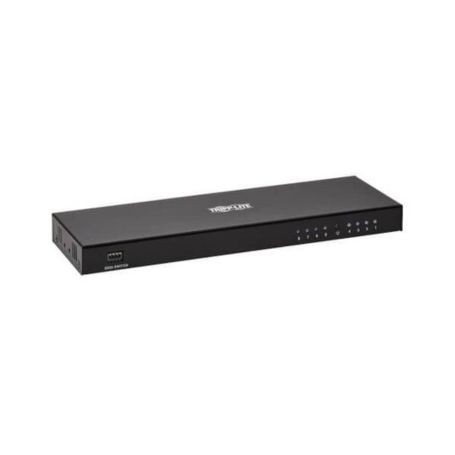

Eaton B118-008E-UHD-2 Tripp Lite 8-Port HDMI 4K Splitter with EDID
Overview:
The Eaton B118-008E-UHD-2 / Tripp Lite is an 8-port Ultra HD HDMI splitter designed to distribute a single HDMI audio/video source simultaneously to eight HDMI displays. It supports true 4K × 2K resolution at 60 Hz, making the Tripp Lite by Eaton unit suitable for digital signage, presentations, classrooms, conference environments, showrooms, offices and short-distance commercial AV installations.
The splitter provides a 1 × 8 HDMI configuration with one HDMI female input and eight HDMI female outputs. It supports HDMI 2.0, HDCP 2.2, 36-bit Deep Color and up to 18 Gbps bandwidth, while supporting DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel audio formats.
The B118-008E-UHD-2 includes user-adjustable EDID management, allowing the source to negotiate compatible video and audio capabilities with connected displays. It can also be cascaded through up to three levels to support as many as 512 displays in larger distribution applications.
Key Features :
- Eight HDMI outputs distribute one HDMI source to eight HDMI displays simultaneously for mirrored 4K video and audio.
- 4K @ 60 Hz support provides resolutions up to 4096 × 2160 for UHD presentation and digital-signage applications.
- HDMI 2.0 and HDCP 2.2 compatibility supports current-generation 4K source and display equipment.
- User-adjustable EDID management helps establish compatible video and audio settings across connected displays.
- Cascadable architecture supports up to three levels and as many as 512 displays in larger AV distribution systems.
Specifications :
| SpecificationDetails | |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite by Eaton |
| Model | B118-008E-UHD-2 |
| Product Type | HDMI Splitter |
| Technology | HDMI |
| Input x Output | 1 × 8 |
| HDMI Input | 1 × HDMI Female |
| HDMI Outputs | 8 × HDMI Female |
| Maximum Resolution | 4096 × 2160 (4K) @ 60 Hz |
| HDMI Specification | HDMI 2.0 |
| HDCP Specification | HDCP 2.2 |
| Maximum Color Depth | 36-bit Deep Color |
| Bandwidth | Up to 18 Gbps |
| Audio Support | DTS-HD, Dolby TrueHD, Dolby Digital Plus, LPCM 7.1 |
| EDID Support | Yes |
| Cascadable | Yes |
| Maximum Cascaded Displays | 512 |
| Cascading Levels | Up to 3 |
| Maximum Cable Distance | 15 ft / 4.6 m |
| LED Indicators | Amber Power / 8 Blue Signal |
| Power Supply Input | 100–240V AC, 50/60 Hz, 0.6A |
| Power Supply Output | 12V DC / 2A |
| Power Adapter Cord | 5 ft / 1.5 m |
| Housing Material | Metal |
| Housing Color | Black |
| Rackmountable | Yes |
| Operating Temperature | 32° to 140°F / 0° to 60°C |
| Storage Temperature | 32° to 140°F / 0° to 60°C |
| Relative Humidity | 0–60% RH, non-condensing |
| Unit Length | 10.35 in |
| Unit Width | 3.19 in |
| Unit Height | 0.87 in |
| Unit Weight | 1 lb |
| Shipping Dimensions | 13.90 × 5.90 × 3.30 in |
| Shipping Weight | 2.40 lb |
| Compliance | RoHS, REACH, FCC |
| External Power Supply | UL, cUL |
| Warranty | 3-Year Limited |
| UPC | 037332239907 |
