Detailed Specifications

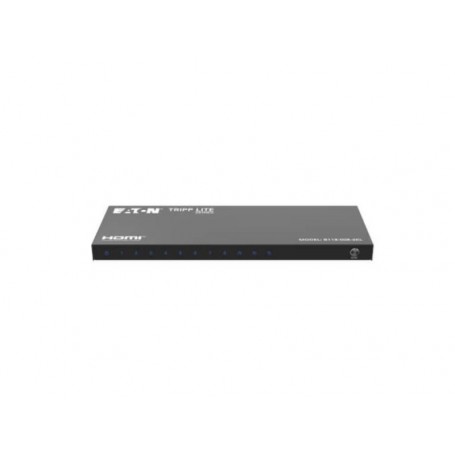

Eaton B118-008-4KL 8-Port 4K HDMI Splitter compatible Tripp Lite
Overview :
The Eaton B118-008-4KL is a Tripp Lite by Eaton 8-port HDMI splitter designed to distribute a single HDMI audio/video source to eight HDMI displays simultaneously. It is suitable for classrooms, retail environments, event setups, digital signage and other multi-display applications.
The splitter supports 4K resolution up to 3840 x 2160 at 60 Hz, 18 Gbps bandwidth, YUV 4:4:4 color, HDR10 and Dolby Vision HDR. It also supports 36-bit Deep Color and LPCM 7.1-channel surround sound for high-quality video and audio distribution.
The B118-008-4KL provides three front-panel EDID modes: Auto, Copy and Downscale. Built-in downscaling allows 4K and 1080p displays to operate simultaneously while maintaining the appropriate resolution for each connected display.
Key Features :
- Distributes one HDMI source to 8 HDMI displays
- Supports 4K resolution up to 3840 x 2160 at 60 Hz
- Supports 18 Gbps bandwidth
- Supports YUV 4:4:4 color
- HDR10 and Dolby Vision HDR support
- HDCP 2.2 support
- 36-bit Deep Color support
- LPCM 7.1-channel surround sound
- Three EDID modes: Auto, Copy and Downscale
- Built-in 4K-to-1080p downscaling
- Supports mixed 4K and 1080p displays
- Compact metal housing
- Plug-and-play operation
- Includes international power plug adapters
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | B118-008-4KL |
| Product Type | 8-Port HDMI Splitter |
| HDMI Inputs | 1 |
| HDMI Outputs | 8 |
| Input Connector | HDMI female |
| Output Connectors | HDMI female |
| Maximum Resolution | 3840 x 2160 @ 60 Hz |
| Maximum Video Resolution | Up to 4K UHD |
| Bandwidth | 18 Gbps |
| Color Sampling | YUV 4:4:4 |
| Color Depth | 36-bit Deep Color |
| HDR Support | HDR10, Dolby Vision |
| HDCP | HDCP 2.2 |
| Audio Support | LPCM 7.1-channel surround sound |
| EDID Modes | Auto, Copy, Downscale |
| Downscaling | 4K to 1080p |
| Maximum Cable Distance | Up to 32 ft combined for 4K @ 60 Hz |
| Extended Distance | 4K @ 30 Hz or 1080p up to 65 ft combined |
| Recommended Cable | HDMI 2.0 |
| Recommended Cable Length | Up to 15 ft per input/output connection |
| Power Input | 100-240V AC, 50/60 Hz, 0.4A |
| Power Output | 5V DC, 2A |
| Power Consumption | 10W |
