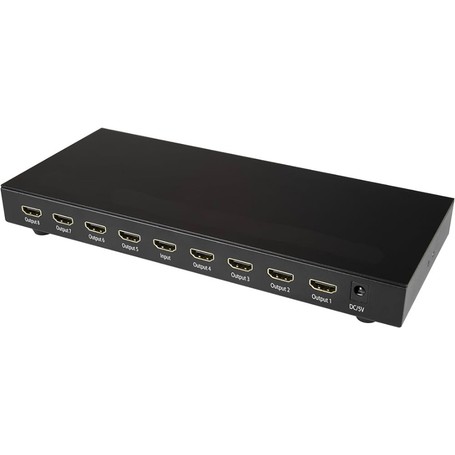

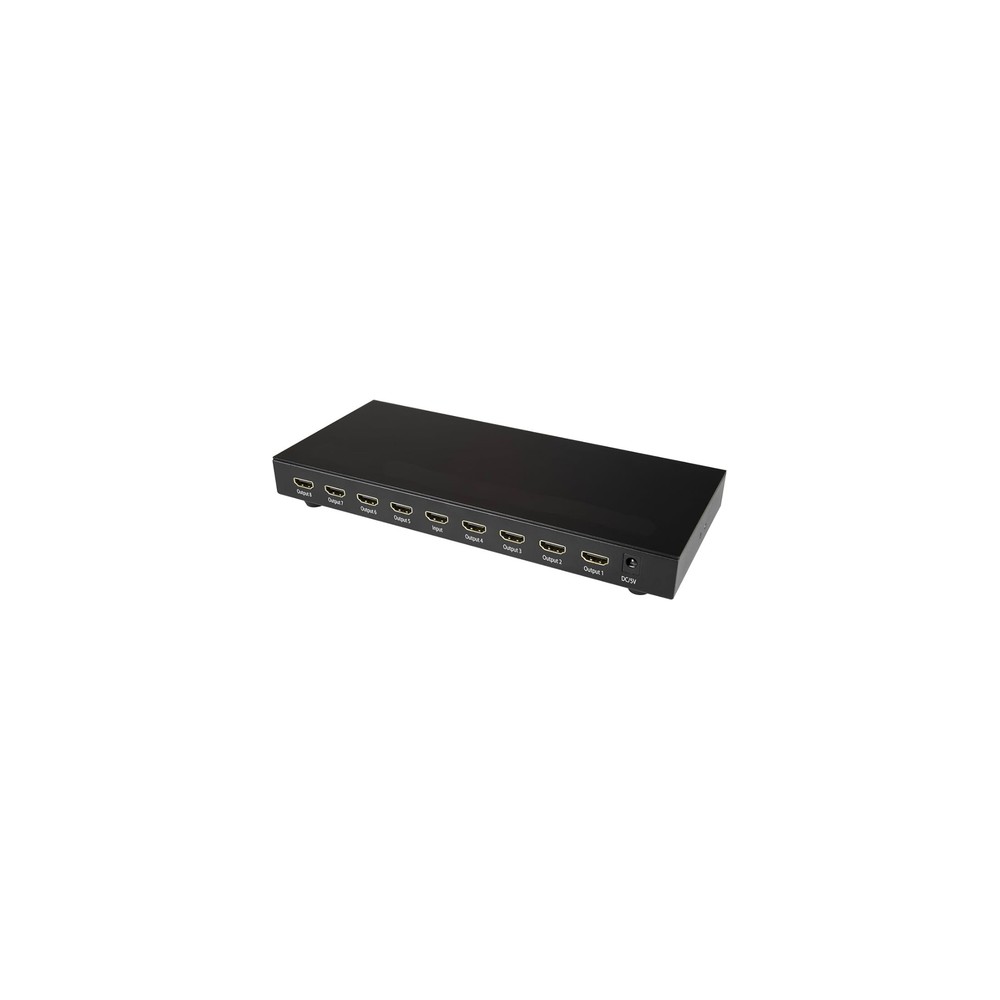

The StarTech ST128HD20 is a professional-grade 1x8 HDMI splitter designed to distribute a single Ultra HD video source to eight simultaneous HDMI displays. It is utilized by AV technicians, retail store managers, and corporate facility leads for digital signage, large-scale presentations, and multi-screen monitoring in control rooms.
Technically, the splitter supports the full HDMI 2.0 specification, including bandwidth up to 18Gbps. This enables it to deliver crisp 4K resolution at 60Hz (4:4:4 chroma subsampling) and High Dynamic Range (HDR) content, ensuring vivid colors and superior contrast. The device is fully HDCP 2.2 compliant, allowing for the seamless playback of protected content from Blu-ray players, streaming devices, and gaming consoles. A key technical advantage is its automatic EDID emulation, which ensures the video source outputs the optimal resolution for all connected displays.
Deployment is optimized for commercial environments. The unit features a rugged metal housing and includes 1U rack-mount brackets for easy integration into standard equipment racks. It is a plug-and-play solution requiring no software installation. For installations requiring high reliability, the splitter features a fanless design for silent operation and a power-saving mode when no input signal is detected.
Distributes one HDMI 2.0 source to eight 4K 60Hz displays simultaneously.
Supports HDR for enhanced contrast and 4:4:4 chroma subsampling for true color.
HDCP 2.2 compliant for compatibility with the latest high-definition content.
Rugged metal enclosure with included rack-mount hardware for professional setups.
Wide-range audio support including 7.1 surround sound and Dolby TrueHD.
| Property | Specification |
| Brand | StarTech.com |
| Part Number | ST128HD20 |
| Product Type | 8-Port HDMI Splitter |
| Input | 1 x HDMI (Female) |
| Output | 8 x HDMI (Female) |
| Max Resolution | 4K (3840x2160) @ 60Hz |
| HDMI Revision | 2.0 |
| HDCP Support | 2.2 |
| Bandwidth | 18 Gbps |
| Audio | 7.1 Digital Audio |
| Mounting | Rack Mountable (1U Brackets Included) |
| Material | Steel |
