Detailed Specifications

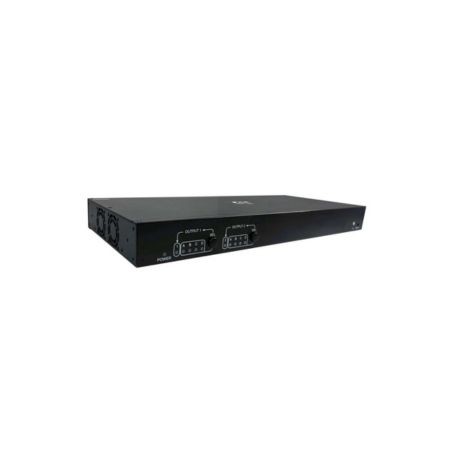

Eaton B127A-4X2-BH2PH Tripp Lite 4x2 HDMI over Cat6 Matrix Switch Kit
Overview
The Eaton B127A-4X2-BH2PH is a Tripp Lite by Eaton 4x2 HDMI over Cat6 Matrix Switch Kit designed to route video and audio from four HDMI source devices to two HDMI displays. The kit includes the 4x2 matrix switch and two pigtail receivers.
The Tripp Lite B127A-4X2-BH2PH supports 4K × 2K video at 60 Hz with 4:4:4 chroma, HDMI 2.0, HDR, and HDCP 2.2. HDMI signals can be extended up to 230 ft. (70.1 m) over compatible Cat6 cabling. Power over Cable (PoC) supplies power to the remote receivers through the Cat6 connection.
The matrix switch supports manual source selection and IR remote control, while included mounting hardware allows wall-, rack-, or pole-mounted deployment. It is suited for digital signage, conference rooms, classrooms, trade shows, retail environments, hotels, and other professional AV installations.
Key Features
- Tripp Lite by Eaton 4x2 HDMI over Cat6 matrix switch kit
- Routes 4 HDMI sources to 2 HDMI displays
- Supports 4K × 2K at 60 Hz with 4:4:4 chroma, HDR and HDCP 2.2
- Extends HDMI signals up to 230 ft. (70.1 m) over Cat6
- Includes two pigtail receivers with PoC technology and supports wall, rack or pole mounting
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | B127A-4X2-BH2PH |
| Product Type | Tripp Lite 4x2 HDMI over Cat6 Matrix Switch Kit |
| HDMI Inputs | 4 |
| HDMI Outputs | 2 |
| Maximum Resolution | 3840 × 2160 (4K) |
| Maximum Refresh Rate | 60 Hz |
| Chroma Subsampling | 4:4:4 |
| HDMI Standard | HDMI 2.0 |
| HDR | Supported |
| HDCP | HDCP 2.2 |
| Maximum Cat6 Distance | 230 ft. (70.1 m) |
| PoC | Yes |
| Included Receivers | 2 × B127A-1P0-PH pigtail receivers |
| Control | Manual push button / IR remote |
| Mounting | Wall, rack or pole |
| RS-232 | Supported |
| Power Supply Input | 100-240V AC, 50/60 Hz, 1.5A |
| Power Supply Output | 24V DC, 1A |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Compliance | TAA |
