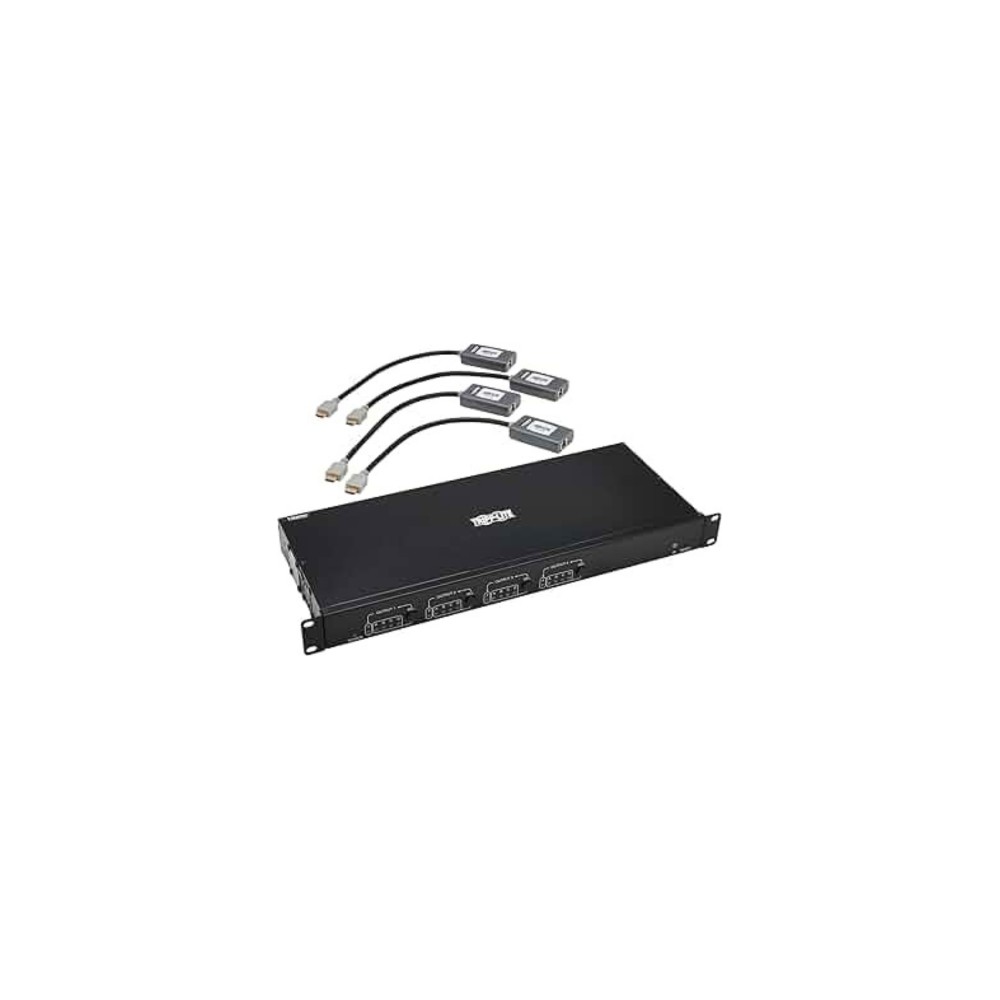

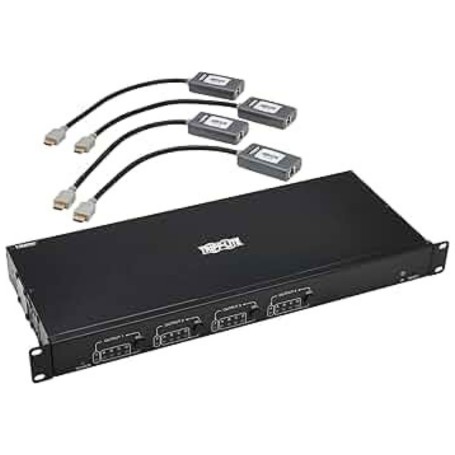

Eaton B127A-4X4-BH4PH HDMI over Cat6 Matrix Switch Kit
Overview :
The Eaton Tripp Lite series B127A-4X4-BH4PH is an enterprise-grade 4x4 HDMI over Cat6 matrix splitter and switch kit configured for high-performance audio/video distribution. Systems engineers, network architects, and commercial AV integrators implement this infrastructure solution to routing multiple media streams across extended physical distances. It resolves the problem of high-frequency signal degradation and restrictive cable length limits by shifting local HDMI pathways onto standardized, cost-effective structured network cabling layouts.
Engineered with advanced signal-splitting architecture, this matrix kit transmits ultra-high-definition multi-channel AV streams from four discrete input sources out to four independent remote displays up to 230 feet away. Technical core capabilities center on full HDMI 2.0 and HDCP 2.2 processing compliance, delivering crystal-clear 4K video resolutions at 60 Hz with true 4:4:4 chroma subsampling and High Dynamic Range (HDR) contrast depth. The hardware features built-in multi-resolution automatic downscaling, allowing administrators to interface newer 4K sources with legacy 1080p and 4K/30 Hz monitors simultaneously without causing system sync dropouts.
Compatibility is strictly bounded by high-performance HDMI source devices, remote monitors, and solid-conductor 24 AWG Cat6 UTP network cabling. Control routing transitions fluidly using local manual chassis pushbuttons, the supplied IR remote control framework, or serial RS-232 command protocols. Do not deploy this distribution matrix over stranded patch cables or thin copper-clad aluminum (CCA) lines, as higher-gauge infrastructure heavily restricts the maximum transmission distance and degrades operational bandwidth.
Key Features :
True 4x4 matrix routing links any four HDMI sources to any four remote displays.
Power over Cable technology drives remote receivers directly via structural Cat6 lines.
Full 4K at 60 Hz performance with 4:4:4 chroma ensures immaculate pixel accuracy.
Multi-resolution auto-switching allows mixed 4K and 1080p monitors on one network.
Bi-directional IR and RS-232 pass-through ports facilitate seamless remote control access.
Specifications :
| Technical Attribute | Verified Specification Data |
| Brand | Eaton |
| Part Number | B127A-4X4-BH4PH |
| Product Type | HDMI over Cat6 Matrix Switch Kit |
| Product Line | Tripp Lite Series |
| Number of Input Ports | (4) HDMI Female |
| Number of Output Ports | (4) RJ45 Female (Main), (1) HDMI Female (Transmitter Local Loop) |
| Max Supported Resolution | 3840 x 2160 (4K) @ 60 Hz |
| Chroma Subsampling | 4:4:4 |
| Deep Color Support | 36-Bit |
| Maximum Extension Distance | 230 ft (70.1 m) over Solid Cat6 UTP |
| HDCP Compliance | HDCP 1.4 / 2.2 |
| HDMI Specification | HDMI 2.0 |
| Audio Support | Multi-Channel LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio |
| Power Supply Input | 100-240V / 50/60Hz / 1.5A External Power Supply |
| Power Supply Output | 24V DC / 2A (Powers Matrix and Receivers via PoC) |
| Form Factor | 1U Rackmountable, Wallmount, Tabletop |
| Enclosure Material | Heavy-Duty Metal |
| Government Procurement | TAA Compliant |
| Environmental Compliance | RoHS, REACH, WEEE |
