Detailed Specifications

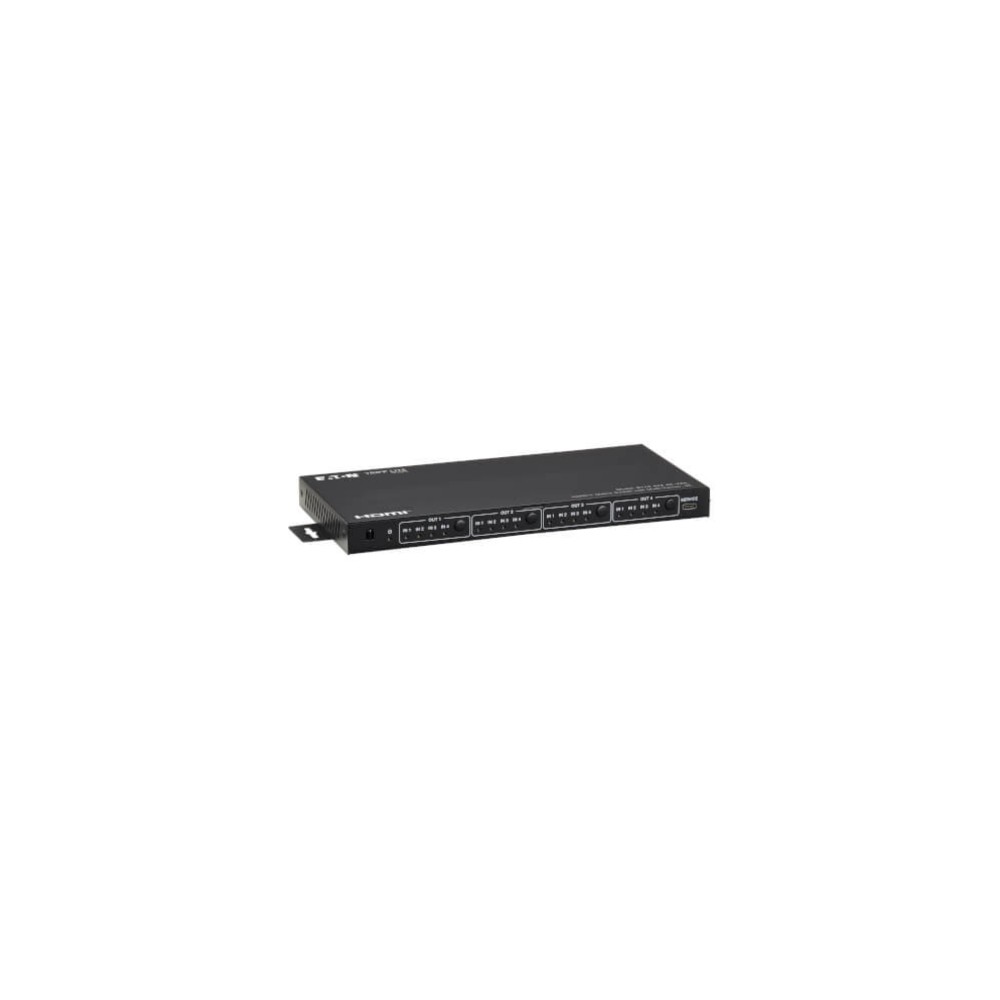

Eaton B119-4X4-4KL Tripp Lite 4x4 HDMI matrix switch and video wall controller
Overview
The Eaton B119-4X4-4KL is a professional 4×4 HDMI matrix switch designed for AV distribution, control rooms, digital signage, and multi-display environments requiring high-resolution video routing with flexible source-to-display mapping.
This model supports up to four HDMI input sources routed independently to four HDMI displays, allowing any input to be displayed on any output or duplicated across multiple screens. It is designed for structured AV systems where centralized video switching and controlled distribution are required.
The unit supports up to 4K UHD (3840 × 2160) at 60 Hz with HDR support and advanced chroma subsampling, making it suitable for modern high-resolution AV and signage deployments. It also includes EDID management and HDCP 2.2 compatibility for secure content playback across professional environments.
Control options include front-panel buttons, IR remote, and RS-232 serial control for integration into automated AV systems. Built-in scaling ensures mixed-resolution display compatibility across different screens within the same setup.
This device is not intended for IP-based AV distribution, large-scale video wall processing, or audio-visual processing beyond matrix switching.
Key Features
- 4×4 HDMI matrix switching for flexible routing
- Supports up to 4K UHD at 60 Hz output
- HDR and HDCP 2.2 compliant video processing
- EDID management for stable display negotiation
- IR, RS-232, and front-panel control support
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B119-4X4-4KL |
| Product Type | HDMI Matrix Switch |
| Input Ports | 4 × HDMI |
| Output Ports | 4 × HDMI |
| Max Resolution | 3840 × 2160 (4K @ 60 Hz) |
| HDR Support | Yes |
| HDCP Version | 2.2 |
| Video Standard | HDMI 2.0 class |
| Control Interfaces | IR, RS-232, Front Panel |
| EDID Management | Supported |
| Chroma Subsampling | 4:4:4 / 4:2:2 / 4:2:0 |
| Audio Support | LPCM, Dolby, DTS formats |
| Power Input | External AC adapter |
| Mounting Type | Rack/desktop (kit dependent) |
| Operating Temperature | 0°C to 40°C |
| Housing | Metal chassis |
