Detailed Specifications

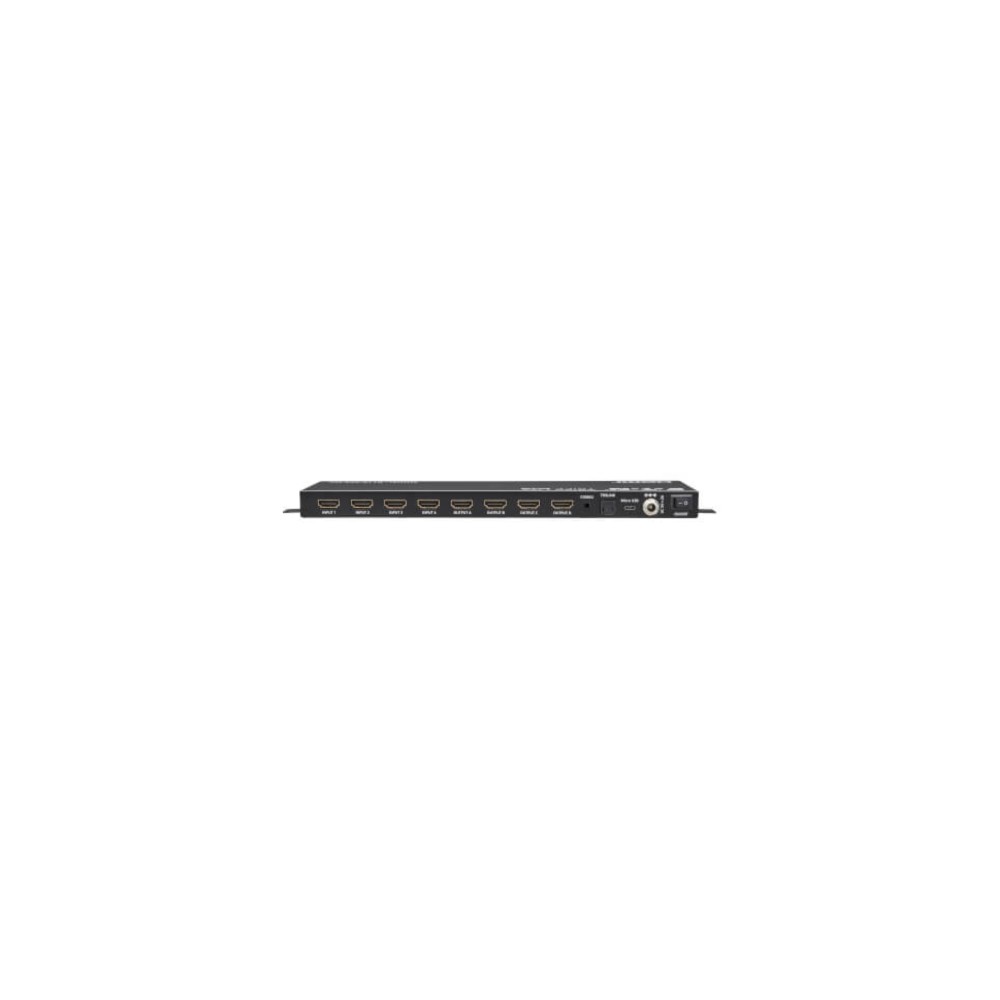

Eaton Tripp Lite 4x4 HDMI matrix switch built multiviewer
Overview
The Eaton B119-4X4-MV (Tripp Lite series) is a professional-grade HDMI matrix switch with integrated multiviewer functionality designed for AV distribution, control rooms, digital signage, conference environments, and multi-display monitoring systems.
It supports routing of up to four HDMI input sources to multiple displays with flexible viewing modes including single-view, split-view, and quad multiview layouts. The unit is engineered for environments where simultaneous monitoring of multiple video feeds is required without repeated cable swapping or external signal processors.
The system supports Full HD 1080p resolution at 60 Hz and is compatible with standard HDMI source devices such as media players, PCs, servers, and video distribution systems. Control options include front-panel buttons, IR remote control, and RS-232 integration for automated AV control systems.
The B119-4X4-MV is commonly deployed in surveillance monitoring rooms, broadcast auxiliary stations, education labs, and corporate AV setups. It is not designed for 4K UHD processing or high-bandwidth 4K60 workflows.
Key Features
- 4×4 HDMI matrix switching with multiview display modes
- Supports quad-view and multi-source screen layouts
- Full HD 1080p @ 60 Hz video output capability
- IR remote, RS-232, and front-panel control options
- Plug-and-play AV integration with no software required
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B119-4X4-MV |
| Product Type | HDMI Matrix Switch / Multiviewer |
| Input Ports | 4 × HDMI |
| Output Ports | 4 × HDMI |
| Max Resolution | 1920 × 1080 (1080p @ 60 Hz) |
| Video Modes | Matrix switching + multiview layouts |
| Control Interfaces | IR remote, RS-232, front panel |
| Signal Type | HDMI digital video/audio |
| Mounting Type | Rack / desktop (mounting hardware included) |
| Power Input | External AC adapter |
| Compliance | TAA, CE, FCC, RoHS |
