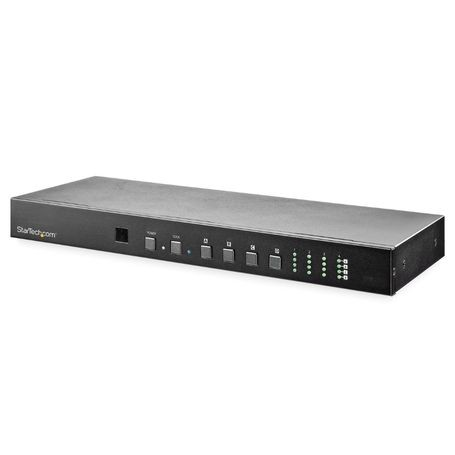

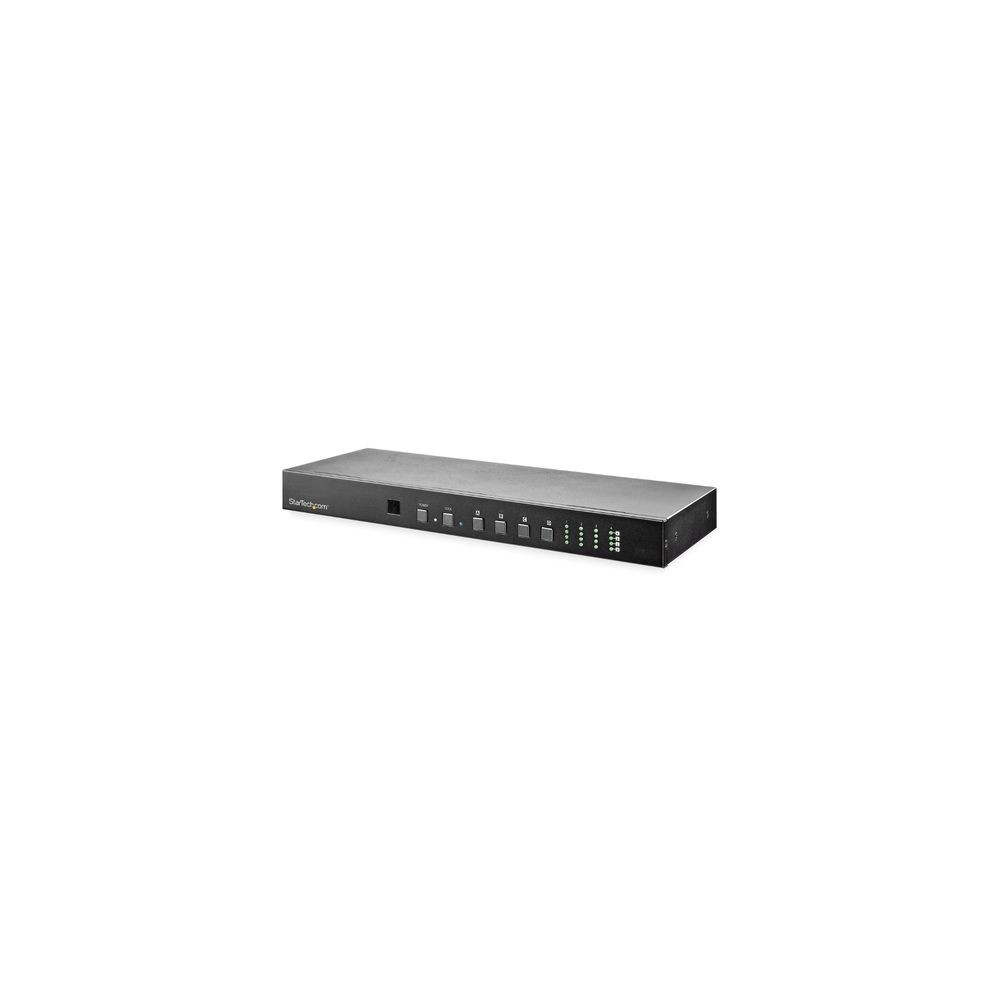

StarTech VS424HD4K60 4x4 HDMI Matrix Switch with 4K 60Hz Support

Overview :

The StarTech VS424HD4K60 is a professional-grade 4-input, 4-output HDMI matrix switcher engineered for high-performance AV distribution. It allows for the independent routing of four unique HDMI 2.0 sources to any combination of four displays. This eliminates the need for constant cable swapping in complex environments such as corporate boardrooms, command centers, and digital signage networks.

Technically, the unit supports true 4K at 60Hz with 4:4:4 chroma subsampling and HDR, ensuring uncompressed color accuracy and high-contrast video delivery. It features a robust 18Gbps bandwidth and supports 7.1 surround sound audio. Management is flexible, offering local push-button control, IR remote, and remote administration via WebGUI or RS232 serial commands.

Deployment is versatile; the steel chassis is designed for either standalone desktop use or 19-inch rack-mount integration using the included brackets. Integrated EDID management ensures seamless handshake compatibility between varying source and display resolutions. This matrix is not intended for wireless transmission or non-HDMI legacy analog signals without active conversion.

key features :

• True 4K 60Hz (4:4:4) provides uncompromised video clarity and color.

• Independent matrix switching routes any of 4 sources to any 4 displays.

• Remote management via WebGUI and RS232 simplifies AV integration.

• HDR support delivers enhanced contrast and brightness for modern displays.

• EDID management prevents resolution conflicts across mixed-display sets.

Specifications :
