Detailed Specifications

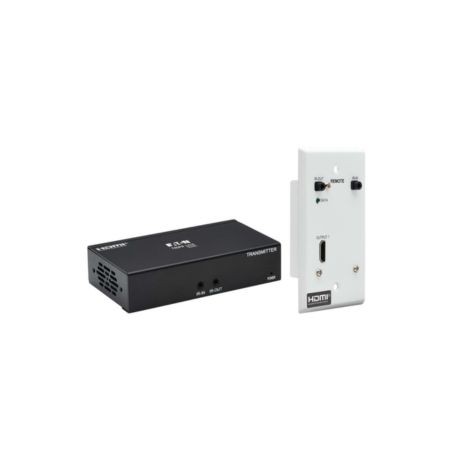

Eaton B127A-1A1-BHFH Tripp Lite HDMI over Cat6 Extender Kit
Overview
The Eaton B127A-1A1-BHFH, from the Tripp Lite by Eaton Pro AV line, is an HDMI over Cat6 extender kit with a box transmitter and wall-plate receiver. It extends HDMI video and audio up to 230 ft. (70 m) over user-supplied Cat6 cabling.
The system supports 4K × 2160 at 60 Hz, 4:4:4 chroma subsampling, HDR, and HDCP 2.2. The transmitter includes a local HDMI output, allowing a local display to show the same source being transmitted to the remote display.
Power over Cable (PoC) supplies power to the wall-plate receiver through the Cat6 connection, eliminating the need for a separate AC outlet at the receiver location. Bidirectional IR extension enables remote control of the source device from the display side.
Key Features
- Extends 4K HDMI video up to 230 ft. (70 m) over Cat6 cabling
- Supports 4K @ 60 Hz with 4:4:4 chroma, HDR, and HDCP 2.2
- Includes a box transmitter and single-gang wall-plate receiver
- Power over Cable (PoC) powers the remote receiver through Cat6
- Supports bidirectional IR control and local HDMI monitoring at the transmitter
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Model | B127A-1A1-BHFH |
| Product Type | HDMI over Cat6 Extender Kit |
| Configuration | Box Transmitter / Wall-Plate Receiver |
| HDMI Input | 1 × HDMI Female |
| HDMI Output | 1 × HDMI Female |
| Local HDMI Output | Yes |
| Network Ports | 2 × RJ45 Female |
| Recommended Cable | Cat6 |
| Maximum Transmission Distance | 230 ft. / 70 m |
| Maximum Resolution | 3840 × 2160 @ 60 Hz |
| Chroma Subsampling | 4:4:4 |
| HDMI Standard | HDMI 2.0 |
| HDCP | 1.4 / 2.2 |
| HDR | Yes |
| Deep Color | 36-bit |
| Audio | HDMI pass-through, LPCM 2.0/5.1/7.1 |
| IR Extension | Bidirectional |
| Power over Cable | Yes |
| Number of Displays | 1 remote display + optional local display |
| Mounting | Wall plate / wall mount |
| Transmitter Dimensions | 4.53 × 2.46 × 1.06 in. |
| Receiver Dimensions | 2.76 × 1.33 × 4.53 in. |
| Transmitter Weight | 1.43 lb |
| Receiver Weight | 1.43 lb |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 5° to 122°F (-15° to 50°C) |
| Power Adapter Input | 100-240V AC, 50/60 Hz, 0.6A |
| Power Adapter Output | 24V DC, 1A |
| Color | White / Black |
| TAA Compliant | Yes |
| Compliance | RoHS, REACH, CE, FCC |
| Country of Origin | Taiwan |
| Warranty | 1-year limited warranty |
| UPC | 037332264008 |
