Detailed Specifications

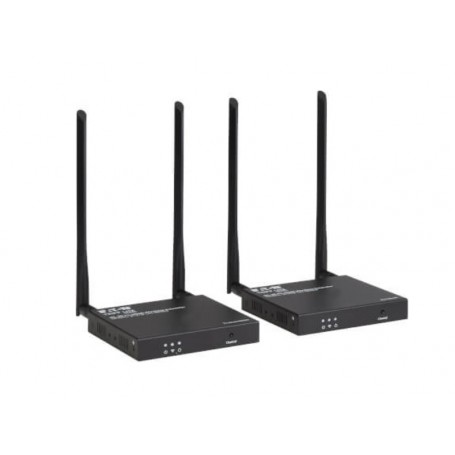

Eaton B127B-1A1-WHD3 Wireless 4K HDMI Extender Kit compatible Tripp Lite
Overview :
The Eaton B127B-1A1-WHD3 is a Tripp Lite by Eaton wireless HDMI extender kit designed to transmit HDMI video and audio from a source device to a remote HDMI display without a long HDMI cable run.
It supports resolutions up to 3840 × 2160 at 30/60 Hz, depending on the supported mode, and provides a wireless transmission range of up to 164 ft. (50 m). The system operates over 5 GHz wireless frequency bands and supports IR pass-through for remote-control applications.
The kit includes a transmitter and receiver and is suitable for classrooms, presentations, retail displays, projectors, monitors, HDTVs and other HDMI installations where cable-free video extension is required.
Key Features :
- Wireless HDMI transmitter and receiver kit
- Supports up to 4K UHD video
- Up to 164 ft. (50 m) transmission range
- Supports 4K up to 60 Hz
- 5 GHz wireless transmission
- HDMI audio and video transmission
- IR pass-through
- SSID channel switching
- HDCP 1.4 support
- Plug-and-play operation
- No software required
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | B127B-1A1-WHD3 |
| Product Type | Wireless HDMI Extender Kit |
| Technology | Wireless HDMI |
| HDMI Input | 1 × HDMI Female |
| HDMI Output | 1 × HDMI Female |
| Maximum Resolution | 3840 × 2160 |
| 4K Support | Up to 60 Hz |
| Transmission Range | Up to 164 ft. (50 m) |
| Wireless Band | 5 GHz |
| HDCP | 1.4 |
| Color Depth | 36-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| IR Pass-Through | Yes |
| Channel Switching | SSID |
| Power Input | 100-240V AC, 50/60 Hz |
| Power Output | 5V DC / 2A |
| Power Consumption | TX ≤ 6W, RX ≤ 4W |
| Housing | Metal / Iron |
| Operating Temperature | -20° to 60°C (-4° to 140°F) |
| Operating Humidity | 0-90% RH, non-condensing |
