Detailed Specifications

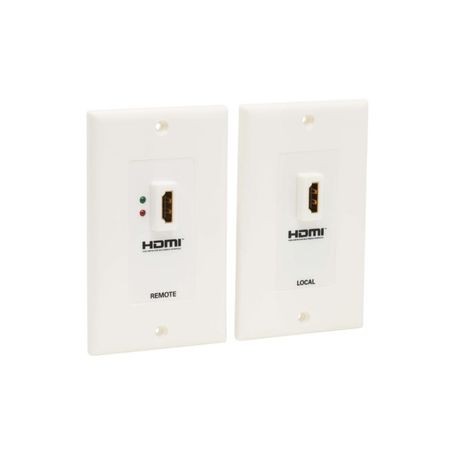

Eaton P167-000 Tripp Lite HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit
Overview
The Eaton P167-000 is a Tripp Lite by Eaton HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit consisting of a local transmitter wallplate and remote receiver wallplate. It extends HDMI video and audio between a source and display using two Cat5/Cat6 cables.
The Tripp Lite P167-000 supports video resolutions up to 1920 × 1080 (1080p @ 60 Hz) and provides a maximum signal range of 230 ft. (70 m) depending on resolution and cabling. With 24 AWG solid-wire Cat6, it can extend 1080p/1080i signals up to 150 ft. and 3D signals up to 100 ft.
Key Features
- Tripp Lite by Eaton HDMI over Dual Cat5/Cat6 wallplate extender kit
- Extends 1080p/1080i HDMI signals up to 150 ft. using 24 AWG solid-wire Cat6
- Supports 3D video up to 100 ft. over 24 AWG solid-wire Cat6
- Supports DTS-HD, Dolby True HD, 7.1-channel audio, HDCP, EDID and DDC
- No external power required; includes local and remote wallplates plus a 110 punchdown tool
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | P167-000 |
| Product Type | HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit |
| Technology | HDMI |
| Form Factor | Wallplate |
| Transmitter Input | HDMI Female |
| Receiver Output | HDMI Female |
| Maximum Resolution | 1920 × 1080 (1080p @ 60 Hz) |
| Maximum Signal Range | 230 ft. (70 m) |
| 1080p Range | 147 ft. via Cat6 |
| 720p Range | 197 ft. via Cat6 |
| 480p Range | 230 ft. via Cat6 |
| 3D Support | Yes |
| Audio Support | DTS-HD, Dolby True HD, 7.1-channel surround sound |
| HDCP | 1.3 |
| EDID | Yes |
| DDC | Yes |
| True Color | 24-bit (8 bits/channel) |
| HDR Support | No |
| External Power Required | No |
| Recommended Cable | 24 AWG solid-wire Cat6 |
| Housing | Plastic |
| Color | White |
| Warranty | 3-year limited |
