Detailed Specifications
Eaton B126-1P0-MINI Tripp Lite HDMI over Cat5/Cat6 Extender
Overview

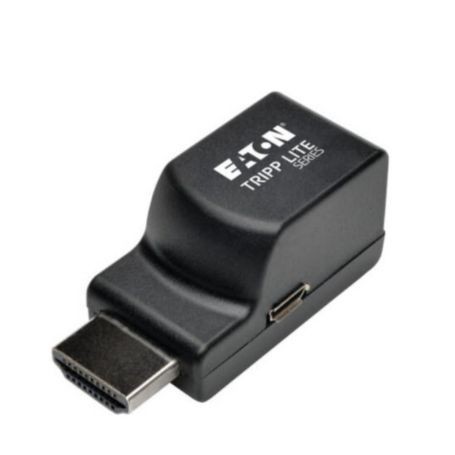

The Eaton B126-1P0-MINI is a Tripp Lite by Eaton HDMI over Cat5/Cat6 passive low-profile remote receiver designed to extend HDMI video and audio from a compatible Tripp Lite B126-Series transmitter to a remote display. The compact receiver connects directly to the display through its built-in HDMI male connector.
The Tripp Lite B126-1P0-MINI supports high-definition video up to 1080p at 60 Hz. With compatible B126-002 or B126-004 transmitters, it can transmit 1080i at 60 Hz up to 100 ft. (30.5 m) or 1080p at 60 Hz up to 50 ft. (15.2 m) over a single Cat5e/6 cable.
The receiver requires no software, drivers, or external power supply. It is designed for digital signage, classrooms, trade shows, presentations, churches, retail environments, and similar AV installations where the display is located beyond the practical reach of a standard HDMI cable.
Key Features
- Tripp Lite by Eaton low-profile HDMI over Cat5/Cat6 passive receiver
- Supports video resolutions up to 1080p at 60 Hz
- Extends 1080i up to 100 ft. and 1080p up to 50 ft. over Cat5e/6
- Built-in HDMI male connector plugs directly into a compatible display
- Plug-and-play design requires no software, drivers, or external power supply
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | B126-1P0-MINI |
| Product Type | HDMI over Cat5/Cat6 Passive Remote Receiver |
| Extender Type | Low-profile / Pigtail |
| Video Input | RJ45 female |
| Video Output | HDMI male |
| Technology | HDMI over Cat5e/Cat6 |
| Maximum Resolution | 1920 × 1080 (1080p) |
| Maximum 1080p Distance | 50 ft. (15.2 m) |
| Maximum 1080i Distance | 100 ft. (30.5 m) |
| Audio | Stereo and 7.1-channel surround sound |
| Color Depth | 24-bit True Color |
| HDCP | Supported |
| Power | Passive; no external power supply required |
| Compatible Transmitters | B126-002, B126-004 |
| Number of Displays | 1 per receiver |
| Housing | Plastic |
| Color | Black |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| TAA Compliance | Yes |
