Detailed Specifications

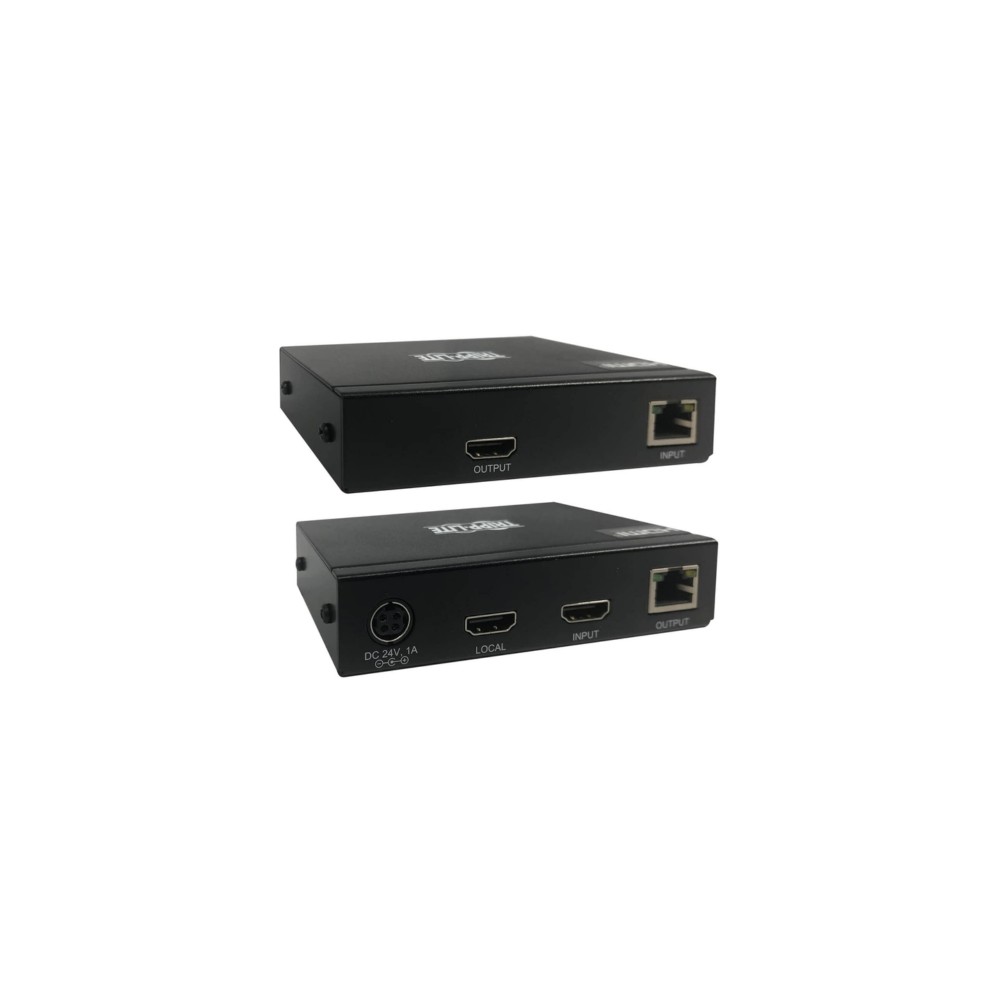

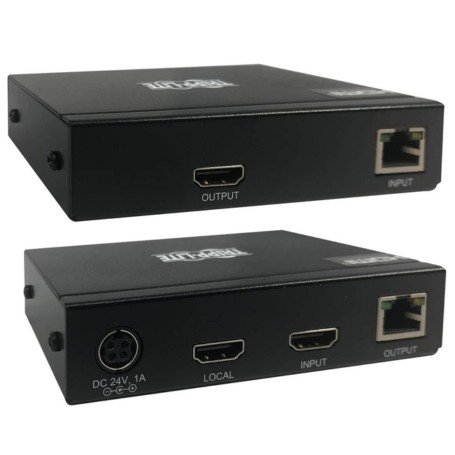

Eaton B127M-101-H HDMI Over Cat6 Extender Kit
Overview
The Eaton B127M-101-H is a medical-grade HDMI over Cat6 extender kit designed for extending high-resolution HDMI video and audio signals across long distances using standard Cat6 cabling. It is commonly deployed in healthcare, enterprise AV, control rooms, and professional installations where source equipment must be located away from the display.
The system transmits 4K video at 60 Hz with HDR support and 4:4:4 chroma subsampling, ensuring accurate color reproduction for imaging, monitoring, and presentation environments. It supports distances up to 230 ft (70 m) over Cat6 cable while maintaining stable signal integrity.
Built with strong EMI/RFI and ESD protection, the extender is designed for environments where electrical interference must be minimized×particularly medical and sensitive AV installations. It also includes Power over Cable (PoC), allowing the receiver to be powered through the same Cat6 link, simplifying deployment.
This solution is best suited for fixed-point HDMI extension where direct copper HDMI cabling is not feasible. It is not intended for IP-based video distribution or switching applications.
Key Features
- Extends HDMI up to 230 ft (70 m) over Cat6
- Supports 4K @ 60 Hz with HDR and 4:4:4 color
- Medical-grade EMI/RFI and ESD protection
- Power over Cable (PoC) reduces remote power needs
- Full 7.1-channel digital audio support
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B127M-101-H |
| Product Type | HDMI Over Cat6 Extender Kit |
| Video Input | HDMI |
| Video Output | HDMI |
| Maximum Resolution | 3840 × 2160 (4K) @ 60 Hz |
| Transmission Distance | Up to 230 ft (70 m) |
| Cabling | Cat6 (user-supplied) |
| HDR Support | Yes |
| Chroma Subsampling | 4:4:4 |
| Audio Support | 7.1-channel digital audio |
| HDCP Support | HDCP 2.2 |
| Power Method | Power over Cable (PoC) |
| Protection | EMI/RFI, ESD compliant |
| Use Case | Medical, enterprise AV, control rooms |
