Eaton B126-2A1 HDMI over Cat5/6 Extender Kit 1080p
Overview :
The Eaton B126-2A1 is an HDMI over Cat5/6 video extender kit consisting of both transmitter and receiver units. It is designed for IT and AV engineers deploying high-definition video distribution over longer distances where direct HDMI cabling is impractical. The kit extends a single HDMI source to two remote displays using economical twisted-pair cabling.
This extender supports Full HD video up to 1920 × 1080 @ 60 Hz over Cat5e or Cat6 cabling. Using a single Cat5/6 link, the transmitter sends the HDMI signal to the receiver, which outputs to two HDMI displays while preserving stereo and multi-channel audio. Built-in signal equalization control allows adjustment at the remote end for optimal image quality.

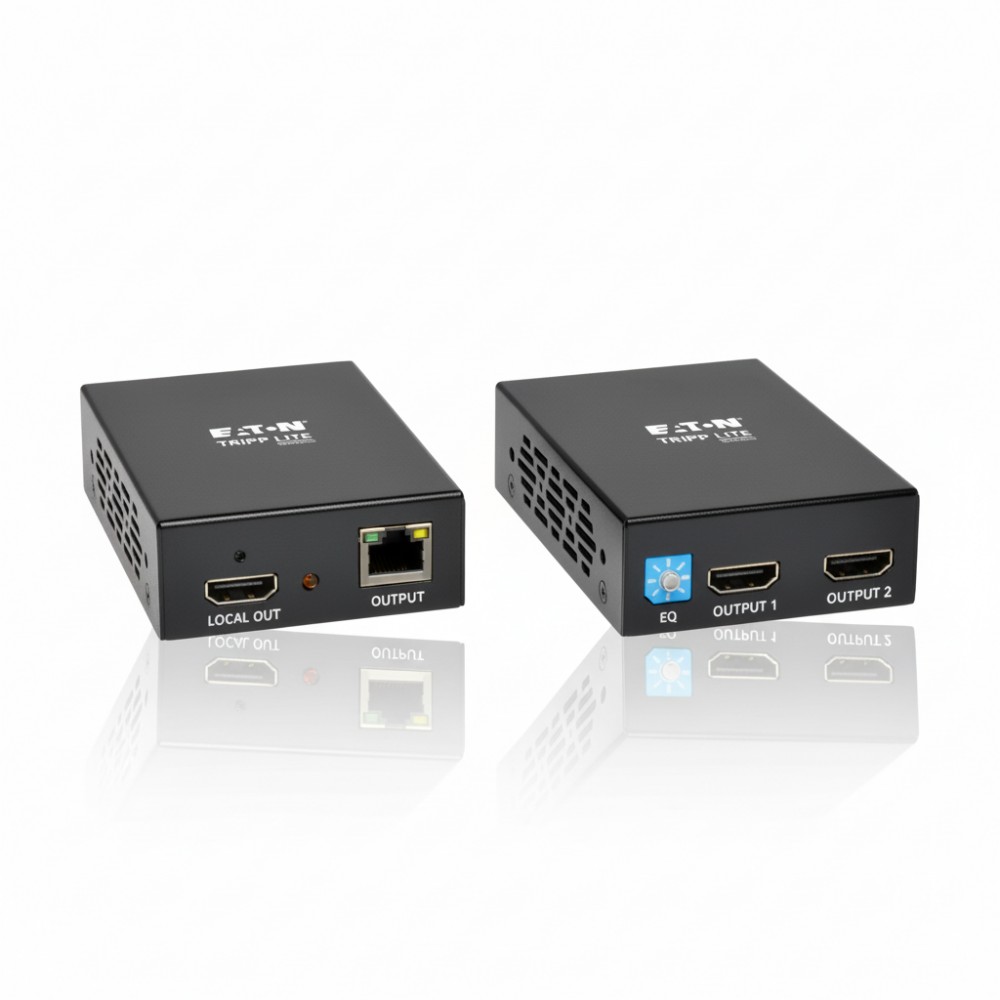

In deployment, the B126-2A1 is suitable for corporate training rooms, classrooms, digital signage, retail displays, and presentation spaces where the HDMI source must be remotely located. The transmitter and receiver are compact and may be mounted on walls, racks, or poles using the included hardware.
From an integration perspective, this kit interfaces with standard HDMI sources (PCs, media players) and displays while leveraging existing IT structured cabling (Cat5e/6) to maximize reach×up to 200 ft (≈61 m) for 1080i and up to ~150 ft (≈45.7 m) for 1080p. The setup requires no drivers or software, simplifying field installations.
A practical deployment example includes distributing a presentation or digital signage feed from a central AV rack to two separate displays in adjacent rooms using Cat6 cable. This reduces HDMI cable runs and centralizes source management. The B126-2A1 support for HDCP and 7.1-channel audio ensures compatibility with multimedia content.
This kit should not be used when ultra-high resolutions (e.g., 4K) or IP-based AV distribution with network switching are required. It also requires proper Cat5e/6 infrastructure and is not a replacement for managed AV over IP systems in large-scale, multi-display environments.
Key Features
- HDMI over Cat5/6 extender supports two displays
- Extends 1080p @ 60 Hz and 1080i signals long distances
- Built-in equalization control on receiver
- Supports stereo and 7.1-channel audio formats
- Mountable on rack, wall, or pole with included hardware
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B126-2A1 |
| Product Type | HDMI over Cat5/6 Extender Kit |
| Transmitter Units | 1 |
| Receiver Units | 1 |
| Video Max Resolution | 1920 × 1080 @ 60 Hz |
| Video Modes Supported | 1080p, 1080i |
| Audio Support | Stereo & 7.1-channel PCM |
| HDMI Inputs | 1 × HDMI on transmitter |
| HDMI Outputs | 1 local on Tx, 2 on Rx |
| Cabling | Cat5e/6 twisted-pair |
| Max Distance (1080p) | ~150 ft (~45.7 m) |
| Max Distance (1080i) | ~200 ft (~61 m) |
| Equalization Control | Yes (receiver) |
| Signal Protection | HDCP |
| Mounting Options | Rack, wall, pole |
| Power Supply | External (100-240 V AC) |
| Compliance | TAA, RoHS |
| Warranty | 1 year |
