Detailed Specifications
Eaton B127E-1A1-HH HDMI over Cat6 Extender Kit 4K 60 Hz
Overview :
The Eaton B127E-1A1-HH is a wired HDMI over Cat6 extender kit that includes both transmitter and receiver units for extending high-definition HDMI video and audio over structured cabling. It is deployed by AV and IT infrastructure engineers to bridge HDMI sources and remote displays in environments where source and display distances exceed standard HDMI cable limits, such as digital signage, conference rooms, classrooms, and trade shows.
This complete extender system supports Ultra HD 4K (3840 × 2160) @ 60 Hz with 4:4:4 chroma subsampling, compliant with HDMI 2.0 and HDCP 2.2, ensuring full color accuracy and protected content delivery. Multi-channel audio up to 7.1 and signal extension up to 100 m (328 ft) over Cat6 cabling realizes high-resolution AV distribution without intermediate repeaters.

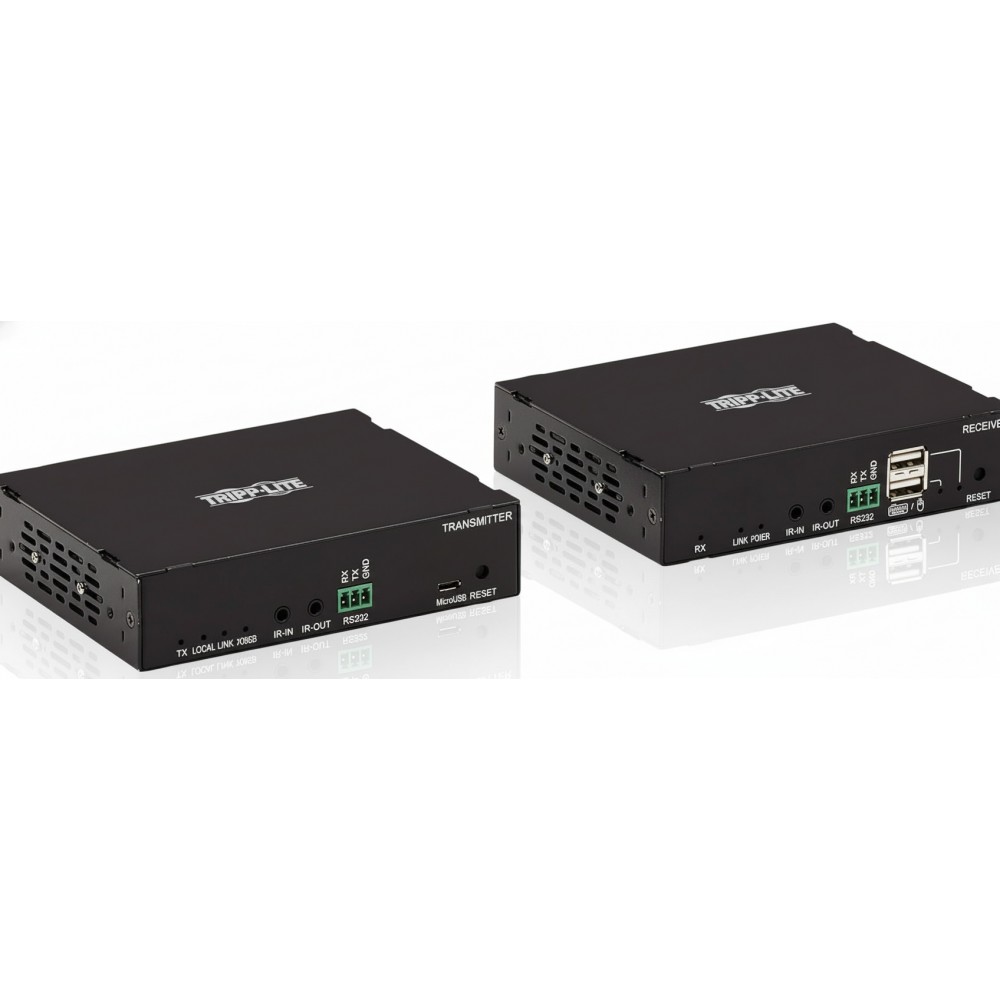

Physically the system consists of a local transmitter that sits alongside the source device and a remote receiver mounted near the display. Both units are metal-cased and can be installed in racks, on poles, or on walls with included mounting hardware. Ethernet RJ45 connections link the two ends using Cat5e/6/6a cable.
Integration includes Power over Cable (PoC) from the transmitter to power the receiver unit over the Cat6 link, eliminating the need for a separate power adapter at the display end. IR, RS-232, and USB signal extension through the same cabling supports remote control and peripheral connectivity.
In practical deployments, the B127E-1A1-HH is ideal for extending a 4K presentation feed to distant displays in lecture halls or corporate spaces while retaining source control at the display location. It is not suitable where fiber extension is required, or where distances exceed 100 m without additional active network extenders.
Key Features
Extends UHD HDMI video up to 100 m over Cat6 (PoC)
Supports 3840 × 2160 @ 60 Hz with 4:4:4 chroma subsampling
HDCP 2.2 and HDMI 2.0 compliant for protected sources
Bi-directional RS-232, IR, and USB signal extension
Local HDMI output for monitoring plus mounting hardware included
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | B127E-1A1-HH |
| Product Type | HDMI over Cat6 Extender Kit |
| HDMI Version | HDMI 2.0 compliant |
| HDCP Version | HDCP 2.2 compliant |
| Max Video Resolution | 3840 × 2160 @ 60 Hz 4:4:4 |
| Max Extension Distance | 100 m / 328 ft over Cat6 |
| Audio Support | Up to 7.1-channel surround |
| Signal Cabling | Cat5/5e/6/6a twisted pair |
| Power Technology | Power over Cable (PoC) |
| Control Extension | RS-232, IR, USB extension |
| Local Output | HDMI on transmitter |
| Connectors | HDMI Type A, RJ45, USB |
| Operating Temp | 0-40 °C |
| Storage Temp | −15-50 °C |
| Humidity | 0-85 % non-condensing |
| Housing | Metal chassis |
| Mounting | Rack, wall, pole (hardware included) |
| Power Supply | 100-240 V AC adapter (transmitter) |
| Warranty | Limited 1 year |
