Detailed Specifications

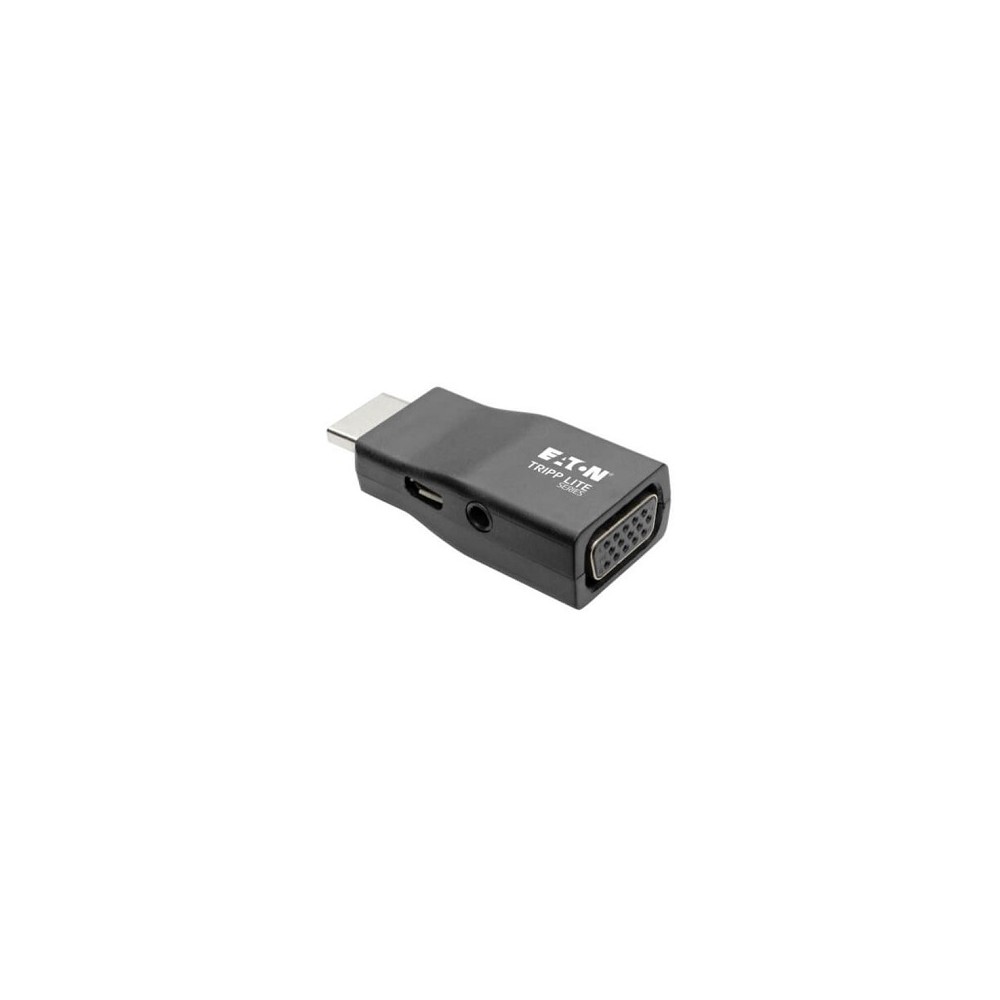

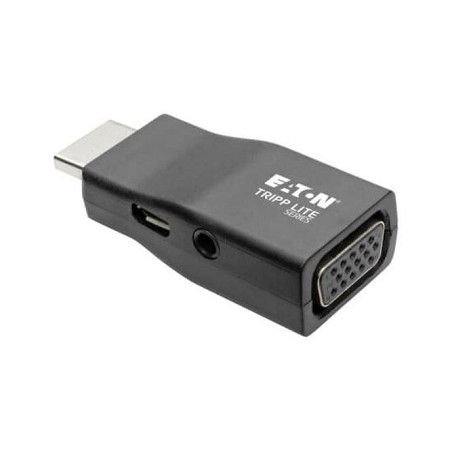

Eaton P131-000-A HDMI to VGA Adapter with Audio Tripp Lite
Overview :
The Eaton P131-000-A is an active HDMI-to-VGA adapter designed to connect a computer, laptop, Chromebook, or other HDMI source to a VGA monitor, projector, or display. It supports video resolutions up to 1920 × 1200 at 60Hz and provides separate 3.5mm stereo audio output.
The adapter is bus-powered through its Micro-B USB connection and requires no video drivers. It supports HDCP 1.4 and EDID communication, making it suitable for conference rooms, classrooms, presentations, digital signage, and legacy VGA display installations.
Key Features :
- Active HDMI-to-VGA video conversion
- Supports resolutions up to 1920 × 1200 @ 60Hz
- Supports 1080p video
- HDMI male input
- HD15/VGA female output
- Separate 3.5mm stereo audio output
- Micro-B USB power input
- Supports 2-channel analog audio
- HDCP 1.4 compliant
- EDID compatible
- Plug-and-play operation with no driver installation
- Compact ABS housing
- 3-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model | P131-000-A |
| Product Type | HDMI to VGA Adapter |
| Input | HDMI Male |
| Video Output | HD15/VGA Female |
| Audio Output | 3.5mm Stereo Female |
| Power Input | Micro-B USB |
| Maximum Resolution | 1920 × 1200 @ 60Hz |
| Maximum Color Depth | 8-bit |
| Audio | 2-Channel Analog |
| HDCP | 1.4 |
| EDID | Yes |
| CEC | No |
| Driver Required | No |
| Bus Powered | Yes |
| Material | ABS |
| Color | Black |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 10–90% RH, non-condensing |
| Compliance | CE, FCC, REACH, RoHS, UKCA, WEEE, TAA |
