Overview

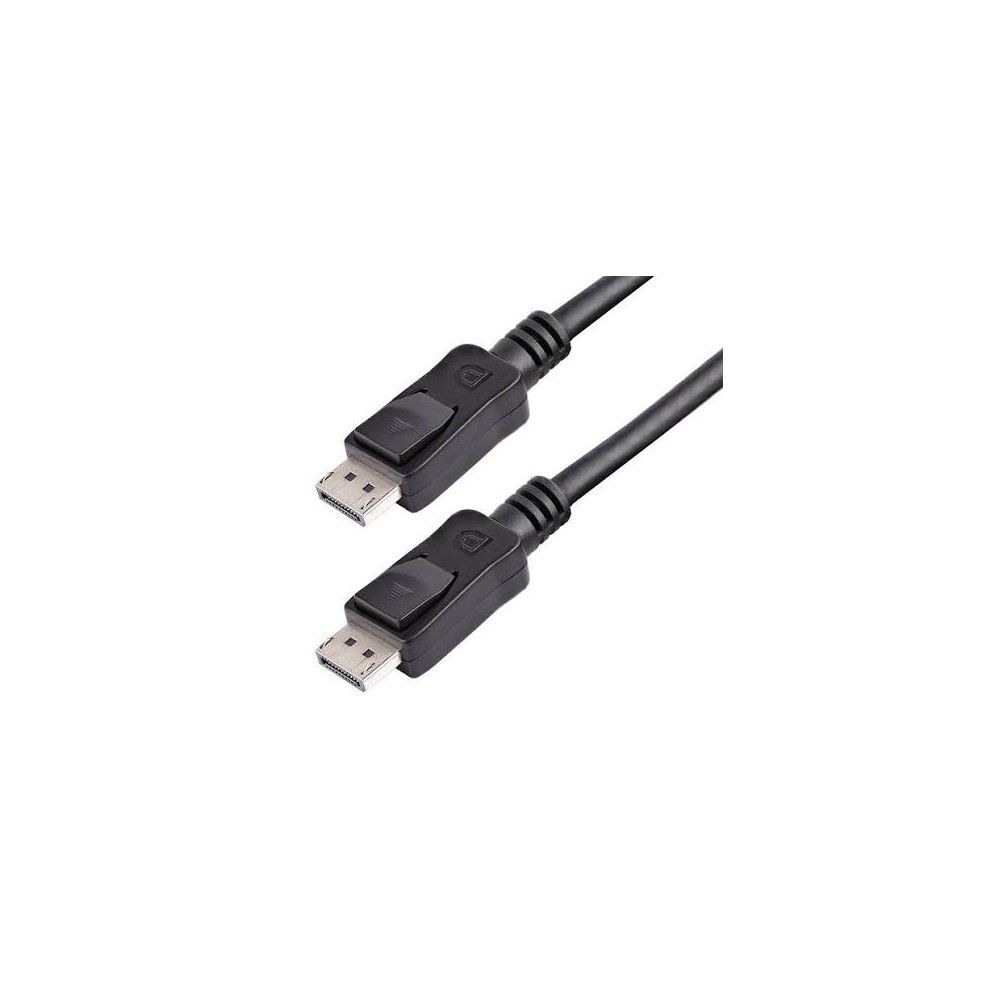

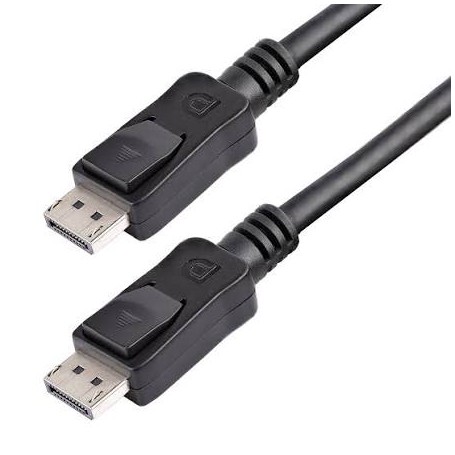

The StarTech DISPLPORT3L is a 3ft DisplayPort 1.2 male-to-male cable designed to connect DisplayPort-equipped computers, graphics cards, workstations, monitors, projectors, and other compatible displays. The cable uses latching DisplayPort connectors to help prevent accidental disconnection in desktop and professional AV installations.
DisplayPort Performance
The DISPLPORT3L supports DisplayPort 1.2 signaling with HBR2 bandwidth up to 21.6Gbps and resolutions up to 4096 × 2160 at 60Hz. It also supports Multi-Stream Transport (MST) for compatible multi-monitor configurations and digital audio transmission.
Connectivity and Construction
Both ends feature 20-pin latching DisplayPort male connectors. The cable uses 28 AWG conductors, a PVC jacket, and aluminum-Mylar foil with braid shielding. Nickel-plated connectors and molded strain relief are used for the cable assembly.
Compatibility
The cable is designed for DisplayPort-to-DisplayPort connections between compatible PCs, notebooks, graphics cards, monitors, projectors, and workstations. HDCP and DPCP support enables compatibility with protected digital content.
Key Features
- 3ft DisplayPort 1.2 male-to-male cable
- Supports up to 4096 × 2160 at 60Hz
- Up to 21.6Gbps HBR2 bandwidth
- Latching connectors help prevent accidental disconnection
- Supports MST, HDCP, DPCP, and digital audio
Applications
- Connecting DisplayPort monitors to desktop computers and workstations
- Graphics card to monitor connections
- Professional workstation display installations
- DisplayPort multi-monitor configurations using MST
- Connecting notebooks or other DisplayPort sources to compatible displays
DC Supplies Product Note
The 3ft cable length provides additional reach compared with short desktop DisplayPort cables while retaining a compact form factor for workstation and monitor installations.
Specifications
| Specification | Details |
|---|
| Brand | StarTech |
| Part Number / MPN | DISPLPORT3L |
| Product Type | DisplayPort Cable |
| DisplayPort Version | 1.2 |
| Cable Length | 3 ft (0.9 m) |
| Connector A | 20-pin DisplayPort Male, Latching |
| Connector B | 20-pin DisplayPort Male, Latching |
| Maximum Bandwidth | 21.6 Gbps |
| Signal Standard | HBR2 |
| Maximum Resolution | 4096 × 2160 at 60Hz |
| Multi-Stream Transport | Yes |
| Audio Support | Yes |
| Wire Gauge | 28 AWG |
| Number of Conductors | 19 |
| Connector Plating | Nickel |
| Cable Jacket | PVC |
| Shielding | Aluminum-Mylar Foil with Braid |
| Cable Outer Diameter | 0.3 in |
| Color | Black |
| Fire Rating | CMG Rated |
| HDCP | Supported |
| DPCP | Supported |
| Warranty | Lifetime |
Frequently Asked Questions
What is the StarTech DISPLPORT3L?
It is a 3ft DisplayPort 1.2 male-to-male cable for connecting compatible DisplayPort sources and displays.
What resolution does the DISPLPORT3L support?
The cable supports resolutions up to 4096 × 2160 at 60Hz with HBR2 bandwidth up to 21.6Gbps.
Does the DISPLPORT3L support multi-monitor configurations?
Yes. It supports DisplayPort Multi-Stream Transport (MST) for compatible daisy-chain and multi-display configurations.
Are the DisplayPort connectors latching?
Yes. Both DisplayPort connectors include latching mechanisms designed to help prevent accidental disconnection.
