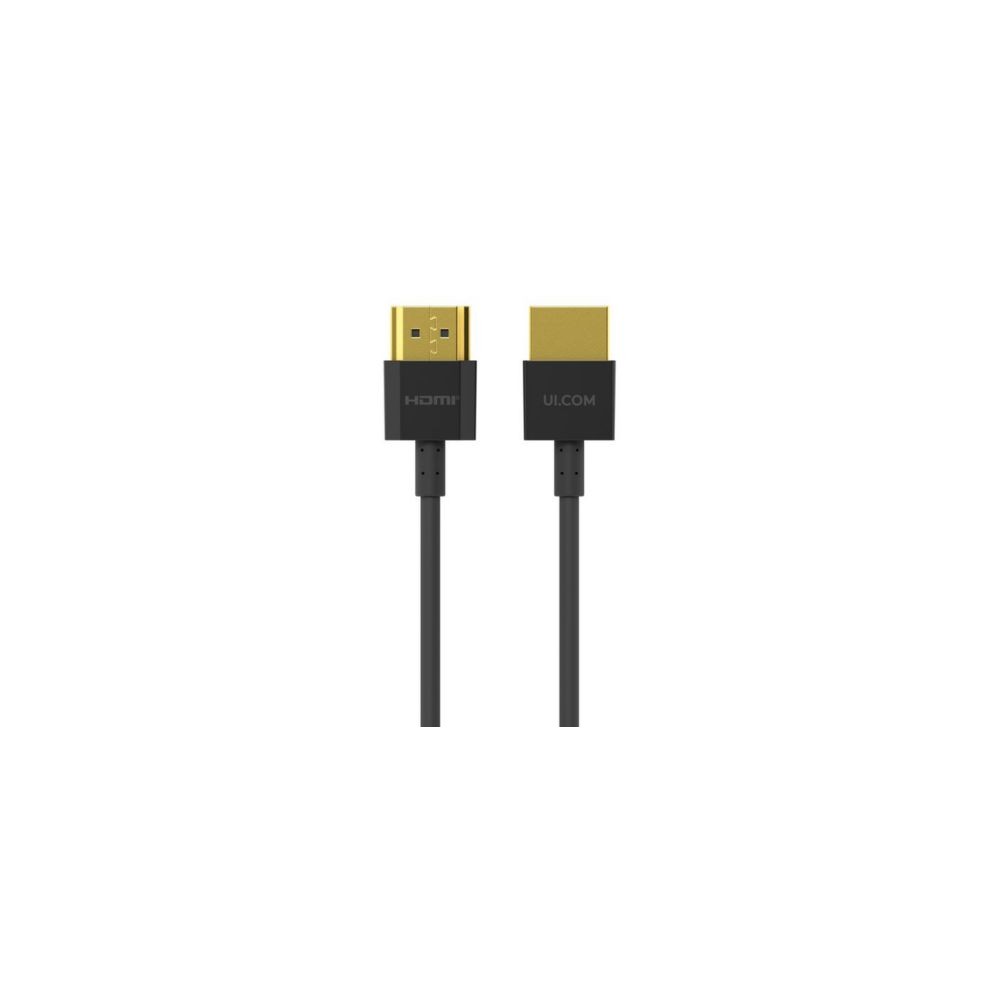

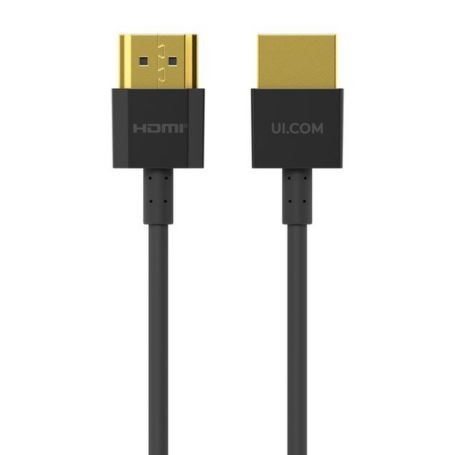

The Ubiquiti UACC-CABLE-UHS-1M is a 1 m Thin HDMI Cable designed for high-performance camera streaming and professional audio/video applications. It uses an ultra-thin 2.8 mm thermoplastic elastomer jacket and 38 AWG bare copper conductors in a compact HDMI 2.1b cable design.
Overview
This black HDMI cable provides a short connection between compatible HDMI-equipped devices where a slim, flexible cable is useful. Its 1 m length and 2.8 mm outer diameter support tidy routing in compact A/V installations.
Technical Information
The UACC-CABLE-UHS-1M is specified as HDMI 2.1b and uses bare copper conductors with a 38 AWG wire gauge. The cable has a minimum bend radius of 11.2 mm and a VW-1 (UL1581) flame rating.
Construction
The cable uses a thermoplastic elastomer (TPE) jacket with a 2.8 mm diameter. The compact construction is designed for flexibility and routing where a conventional thicker HDMI cable may be less convenient.
Key Features
- 1 m cable length
- HDMI 2.1b specification
- Ultra-thin 2.8 mm outer diameter
- 38 AWG bare copper conductors
- Flexible TPE jacket with 11.2 mm minimum bend radius
Applications
The cable is designed for professional A/V connections and high-performance camera streaming with compatible equipment. Its short length is suitable for equipment placed relatively close together, including compact camera, display, and A/V setups.
DC Supplies Product Note
The 1 m version is the shortest cable in Ubiquiti's Thin HDMI Cable family. Its 2.8 mm diameter and 11.2 mm minimum bend radius make cable routing particularly compact compared with the longer variants in the same family.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-UHS-1M |
| Product Type | Thin HDMI Cable |
| Product Family | Thin HDMI Cable |
| Cable Length | 1 m (3.3 ft) |
| HDMI Type | HDMI 2.1b |
| Cable Color | Black |
| Conductor Type | Bare copper |
| Conductor Wire Gauge | 38 AWG |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 2.8 mm (0.11 in) |
| Minimum Bend Radius | 11.2 mm (0.44 in) |
| Flame Rating | VW-1 (UL1581) |
| Standards | HDMI 2.1b |
| Ambient Storage Temperature | -20 to 80°C (-4 to 176°F) |
| Ambient Operating Temperature | -20 to 80°C (-4 to 176°F) |
FAQs
What is the UACC-CABLE-UHS-1M designed for?
Ubiquiti describes it as a Thin HDMI Cable for high-performance camera streaming and professional audio/video applications.
What HDMI standard does it support?
The cable is specified as HDMI 2.1b.
How thick is the cable?
The 1 m variant has a 2.8 mm outer diameter.
What type of conductor does it use?
It uses bare copper conductors with a 38 AWG wire gauge.
What is the minimum bend radius?
The specified minimum bend radius is 11.2 mm.
