Detailed Specifications

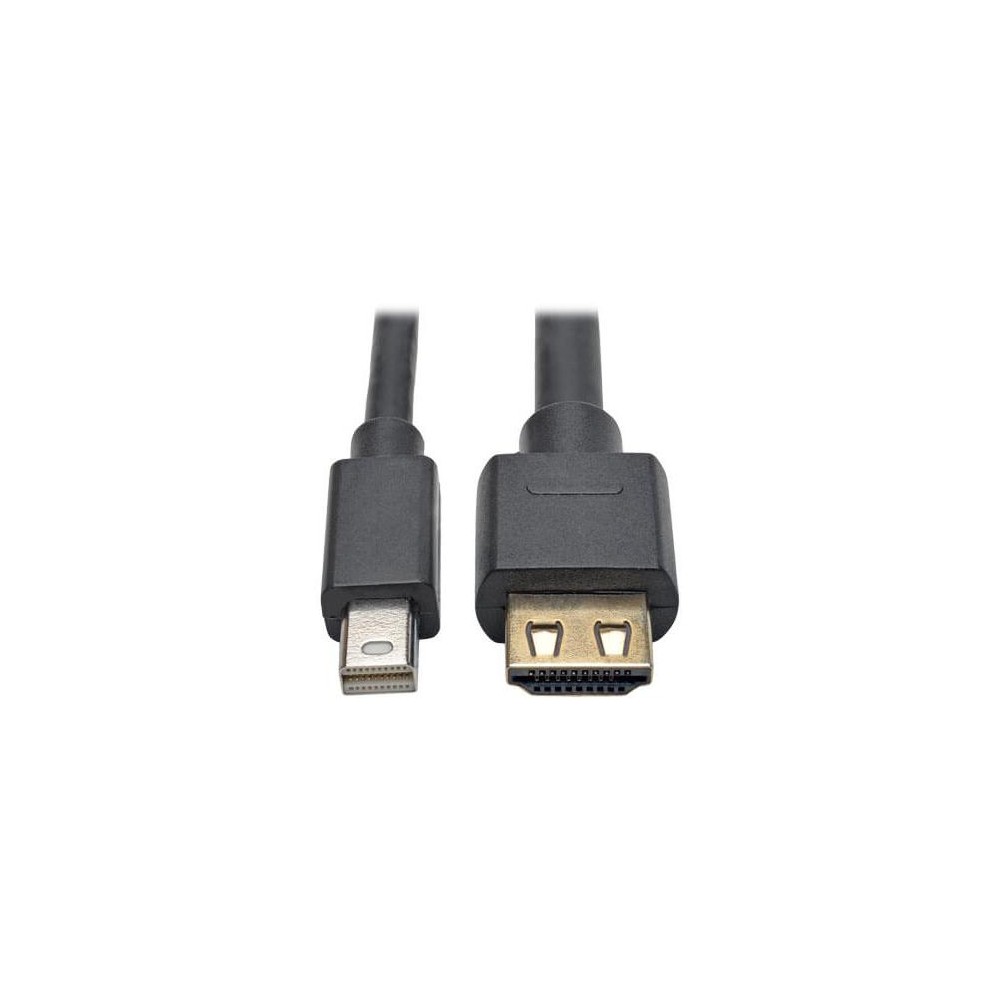

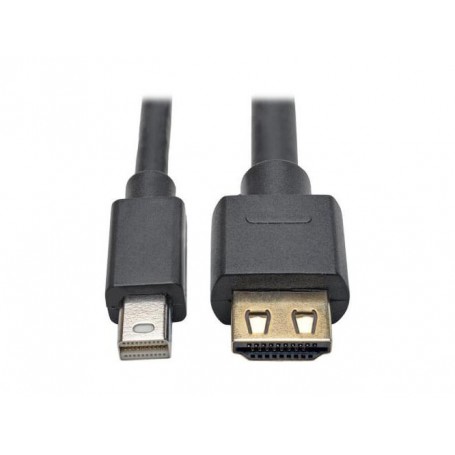

Eaton P586-015-HD-V2A Mini DisplayPort to HDMI Active Adapter Cable Compatible Tripp Lite
Overview
The Eaton P586-015-HD-V2A is an active Mini DisplayPort-to-HDMI adapter cable designed to connect a Mini DisplayPort or Thunderbolt-enabled computer, Mac, or tablet to an HDMI monitor, projector, or TV. It features Mini DisplayPort male to HDMI male connectors and supports resolutions up to 3840 × 2160 (4K) at 60Hz.
The cable is 15 ft (4.6 m) long and supports HDCP 2.2, EDID and audio. As an active adapter, it works with both Single-Mode and Dual-Mode (DP++) DisplayPort outputs and does not require a separate power adapter.
Key Features
- Mini DisplayPort 1.2a male to HDMI male
- Active adapter cable
- Supports up to 4K × 2K (3840 × 2160) at 60Hz
- Supports HDCP 2.2
- Supports EDID and audio
- 15 ft (4.6 m) cable length
- Gold-plated HDMI connector and contacts
- High-grip HDMI plug helps prevent accidental disconnection
- No separate power adapter required
- Compatible with Single-Mode and Dual-Mode (DP++) DisplayPort output
- Black PVC cable jacket
- Plug-and-play operation
- 3-year limited worldwide warranty
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P586-015-HD-V2A |
| Product Type | Mini DisplayPort to HDMI Active Adapter Cable |
| Cable Type | Active |
| Connector A | Mini DisplayPort Male |
| Connector B | HDMI Male |
| DisplayPort Specification | 1.2a |
| HDMI | HDMI 2.0 |
| Maximum Resolution | 3840 × 2160 (4K) @ 60Hz |
| HDCP | 2.2 |
| EDID Support | Yes |
| Audio Support | Yes |
| Cable Length | 15 ft (4.6 m) |
| Cable Jacket | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Material | ABS, PVC |
| Power Adapter Required | No |
